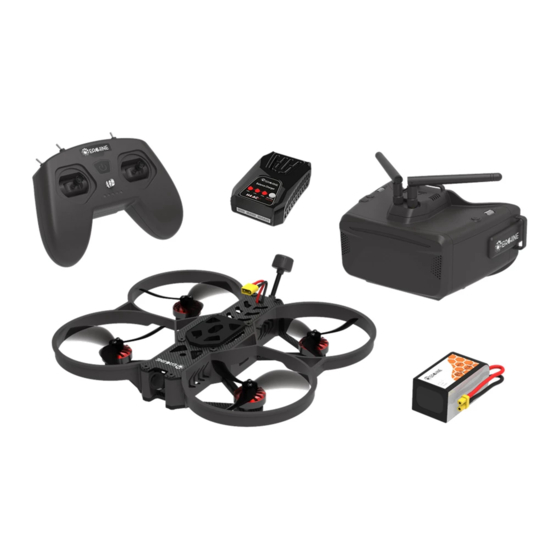

ATOMRC Seagull FPV User Manual

Seagull fpv bundle
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual

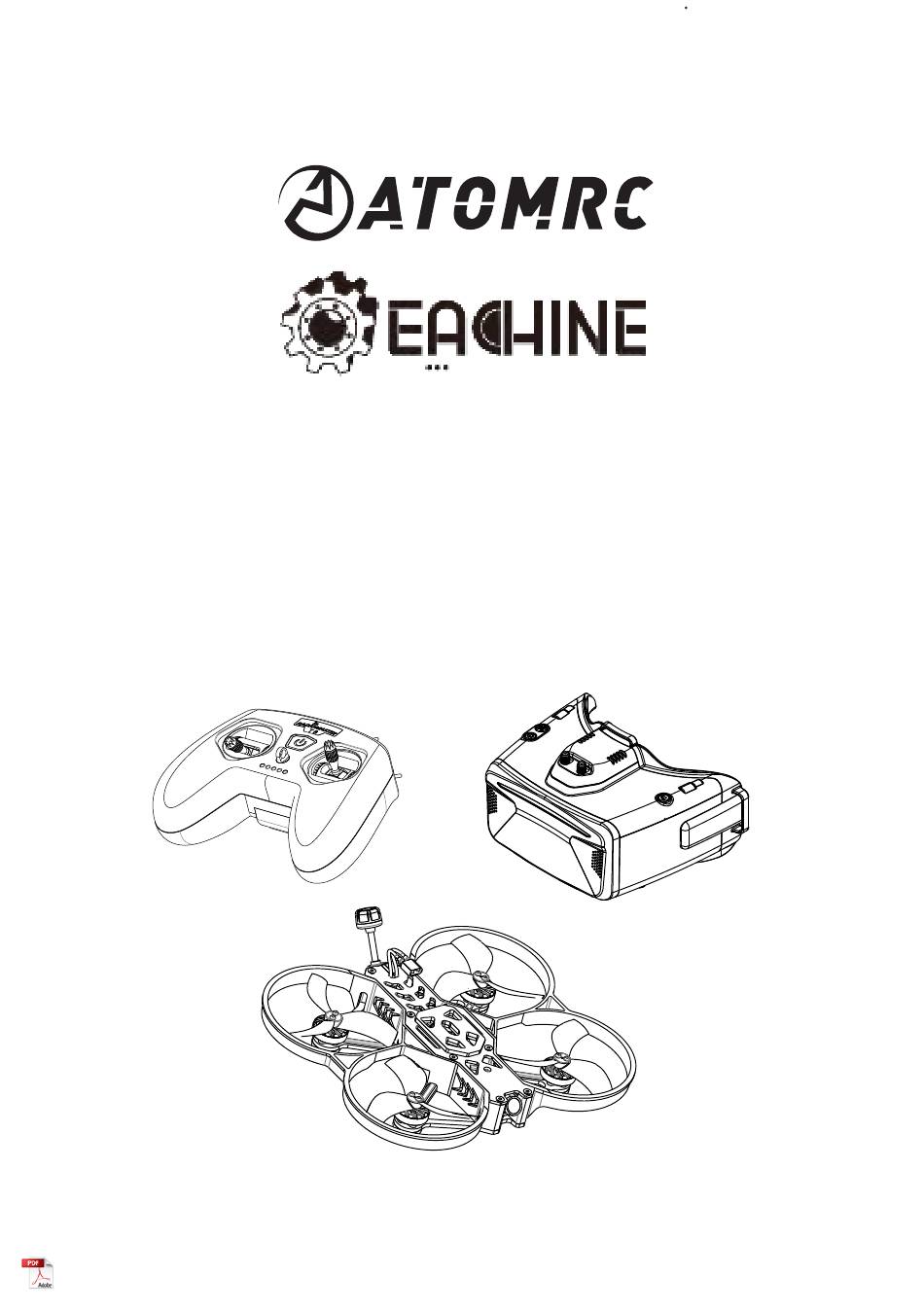

S e a g u l l F P V B u n d l e
U s e r M a n u a l
2021.5

Advertisement

loading
Need help?

Need help?

Do you have a question about the Seagull FPV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ATOMRC Seagull FPV

Summary of Contents for ATOMRC Seagull FPV

  • Page 1 S e a g u l l F P V B u n d l e U s e r M a n u a l 2021.5...
  • Page 2 F405 FC and 500mW VTX. The ESC can support 35A for 60s（ environment 25℃）. The ATOMRC PHOTON 2004 2700KV MOTOR have max 634g thrust, give more maneuverability for drones. Flight time with standard 4S 850mah battery is 9 min, user change use bigger battery for more flight time.
  • Page 3 S e a g u l l B a s i c M a n u e l 1、 Make sure nothing is blocked the props when power on. 2、 User can change the settings on Betafight ground station. 3、 Before flight, please make sure know the arm switch and mode switch, if the drone out of control, please disarm the drone immediately, the prop will stop spinning.

  • Page 4: Button Function

    B u tton Function Video Audio R Audio L AV connector Pin out 1.Power 2.Menu 3.CH/BAND/Search 4.Record/Delet 5.Mode 6.USB C Connector 7.SD card connector 8.Audio/Video connector G o g g l e s M e n u 1、 Install the 18650 battery. 2、...
  • Page 5 6、D VR need SD card to record, please format SD card to FAT32. 7、 When goggles receive image, press record button，the DVR icon will flash, press record button again to stop recording. 8、 Short press left wheel, when OSD show PB（Play Back Mode）, roll right wheel to select, press right wheel to record or fast forward .
  • Page 6 R a d i o 1、 Make sure all switch is down, throttle stick is at the bottom. 2、 Hold power button is turn on, the LED will turn green. 3、 If the green LED is flashing and radio start beep, it means that Switch is not down or throttle stick is not bottom.
  • Page 7 S A Switch is buzzer switch, drone will beep when pull up this switch. SB is anti flip switch, when drone is flipped, pull up this switch then push sticks, drone will flip back to normal. S t i c k m o d e Mod e 2 Le ft St ic k Ri ght St ick...
  • Page 8 H o w t o B i n d R X 1. Hold the BIND button on the receiver and turn on the power .After about 3 seconds, the receiver LED red light will be on. And wait for the link. 2.
  • Page 9 The VTX have IRC protocol, user can change it with osd command. ATOMRC Seagull RTF Bundle Drone Flight Controller ATOMRC Exceed F405 MINI ATOMRC Exceed 30A MINI BLS 2~4s 4in1 Motor ATOMRC 2004 2700KV ATOMRC Exceed 500mW MINI Foxeer Razer nano...
