Philips CMQ405/00 User Manual

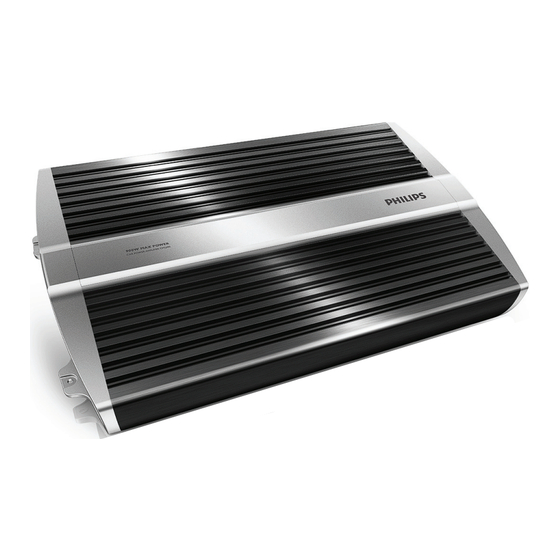

Philips car amplifier cmq405 4 channel 900w peak.
Hide thumbs

Advertisement

Register your product and get support at
www.philips.com/welcome
User manual
EN
Manual del usuario
ES
PT-BR Manual do Usuário
Руководство пользователя 37
RU
ZH-CN
用户手册
3
13
25
49
CMQ405

Advertisement

Table of Contents

   Related Manuals for Philips CMQ405/00

   Summary of Contents for Philips CMQ405/00

  • Page 1 Register your product and get support at www.philips.com/welcome User manual Manual del usuario PT-BR Manual do Usuário Руководство пользователя 37 ZH-CN 用户手册 CMQ405...
  • Page 2: Table Of Contents

    Contents 1 Important Safety Notice 2 Your car power amplifier Introduction What’s in the box Overview of the main unit 3 Installation Mount the amplifier in car Connect speakers Connect car audio Connect power 4 Use your power amplifier Select HPF/LPF mode Adjust input level Adjust bass boost About the protector indicator...
  • Page 3: Important

    Any changes or modifications made to this device that are not expressly approved by Philips Consumer Lifestyle may void the user’s authority to operate the equipment. 2010 © Koninklijke Philips Electronics N.V. All rights reserved.
  • Page 4: Your Car Power Amplifier

    2 Your car power amplifier Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. Introduction With the amplifier, you can enjoy high quality sound performance with powerful bass and beats.
  • Page 5: Installation

    i POWER/PROTECTED • Light in green when the amplifier is switched on. • Light in red when the amplifier is abnormal and protected. j SPEAKER OUTPUT • Connect to speakers or subwoofers. k Fuse: 25A x 2 l POWER (GND/REM/+12V) •...
  • Page 6: Connect Speakers

    Connect speakers Note • Use speakers with an impedance of 2 to 8 ohm (4 to 8 ohm when used as a bridged amplifier). • Match the “left”, “right”, “+” and “-” terminals correctly. Revised polarity may degrade sound quality. Option 1: Stereo mode: connect 4 speakers 4 ohm 4 ohm 4 ohm 4 ohm...
  • Page 7: Connect Power

    Connect power Make the power connection as illustrated below: • Connect the ground wire from the car to the • Connect the remote wire from the car audio to the • With this connection, you can turn on/off the amplifier with the car audio. •...
  • Page 8: Use Your Power Amplifier

    4 Use your power amplifier Select HPF/LPF mode Slide LPF or HPF to the selected mode. HPF (high- 80Hz More low frequency pass-filter) signal is filtered. Select this if you prefer less bass effect. LPF (low- 180Hz More high frequency pass-filter) signal is filtered.
  • Page 9: Replace Fuse

    Replace fuse If there is no power, the fuses might be damaged and need to be replaced. Pull out the damaged fuses. Replace the fuses with the supplied fuses or to buy two fuses that match the current rating of the damaged fuses (25A x 2).
  • Page 10: Troubleshooting

    If you encounter problems when using this apparatus, check the following points before requesting service. If the problem remains unsolved, go to the Philips web site (www.philips.com/welcome). When you contact Philips, ensure that the apparatus is nearby and the model number and serial number are available.
  • Page 11 Name of the Parts 部件名称 Pb, Lead 铅 Housing 外壳 Loudspeakers 喇叭单元 PWBs 电路板组件 Accessories (Remote control & cables) 附件(遥控器, 电源线,连接线) Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement in SJ/T11363 - 2006. O: 表示该有毒有害物质在该部件所有均质材料中的含量均在 SJ/T11363 - 2006 标准规定的限量要求...
  • Page 12 © 2010 Koninklijke Philips Electronics N.V. All rights reserved. CMQ405_00_UM_V2.0...
