T-BERD /MTS-2000 Modular Test Set
QUICK CARD
DWDM Optical Channel Checker
This quick card describes how to connect to a fiber under test, configure DWDM Optical
Channel Checker (OCC) test setups, run tests, and analyze results with a T-BERD/MTS-
2000 equipped with an OCC-4056C module.
Note: The OCC module is used to monitor wavelengths on a live network. Care
should be exercised when unplugging fibers from the network as the fibers
may be carrying traffic.

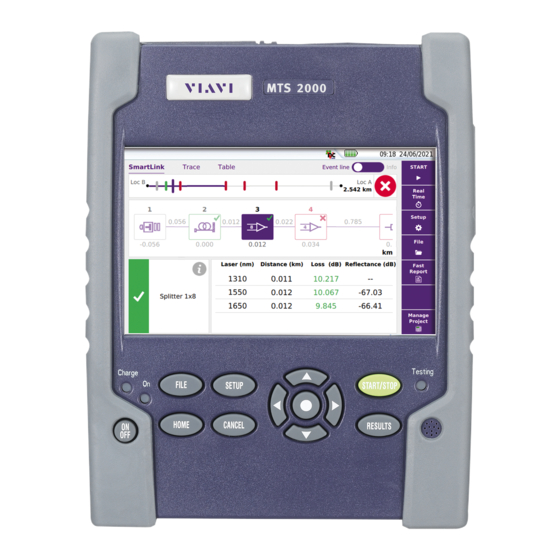

► T-BERD/MTS-2000 equipped with the
following:
► Fiber Optics Software Release V21.0 or
greater
► OCC-4056C DWDM OCC Module
► Fiber optic cleaning and inspection tools
► Fiber optic patch cable (Launch Cable)
► Optical Coupler to connect patch cable to
Fiber Under Test
► Use the VIAVI P5000i or FiberChek Probe
microscope to inspect both sides of every
connection being used (OCC Port, bulkhead
connectors, patch cables, etc.)
► Focus fiber on the screen. If dirty, clean the
end-face.
► If it appears clean, run inspection test.
► If it fails, clean the fiber and re-run inspection
test. Repeat until it passes.
T-BERD /MTS-2000 Modular Test Set
®️
Optical Spectrum Analyzers. The Best OSA Modules & Platforms (viavisolutions.com)
VIAVI//Public

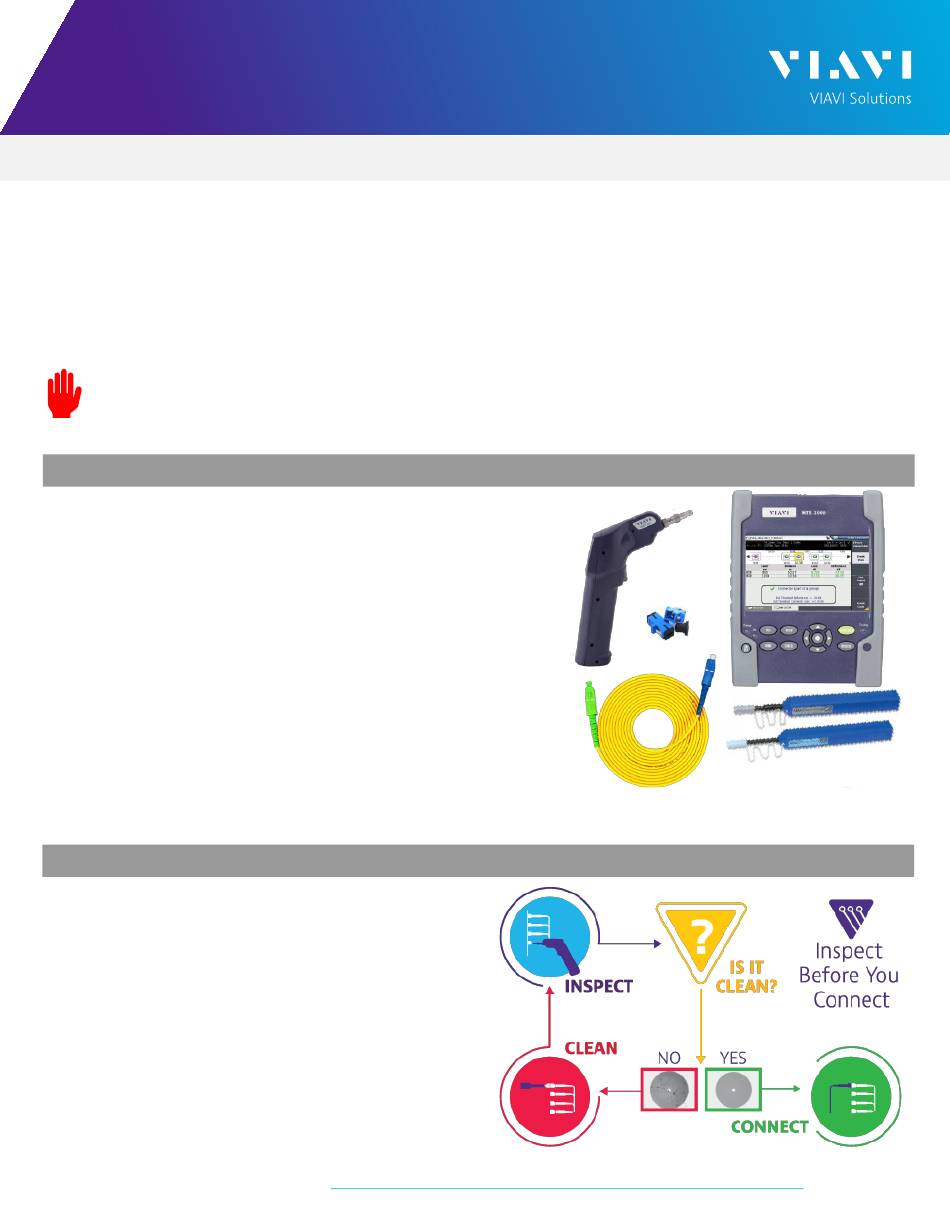

Figure 1: Equipment Requirements
