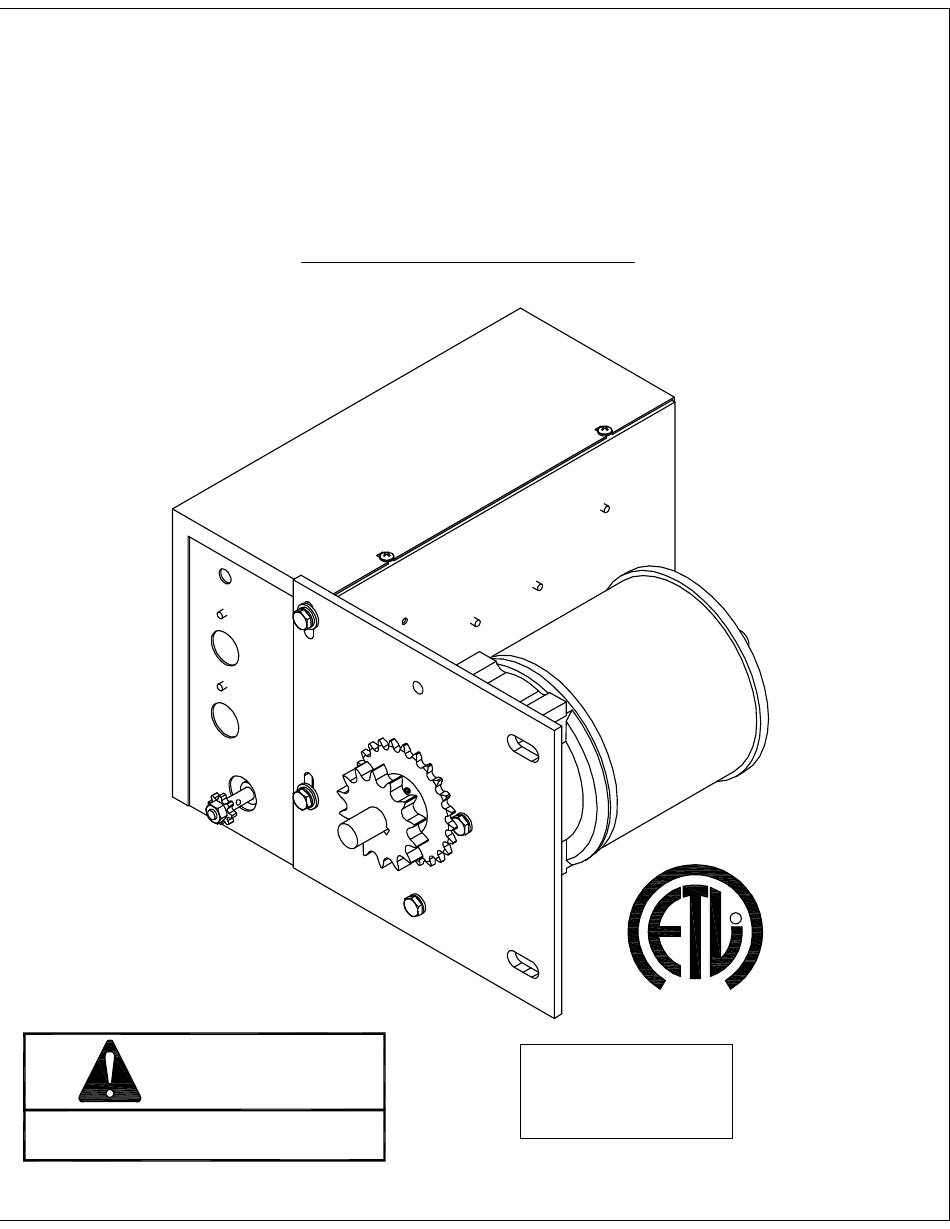

- Page 1 COOKSON OWNER'S MANUAL FDO-A10E INDUSTRIAL DUTY FIRE DOOR OPERATOR NOT FOR RESIDENTIAL USE XXXXXXX WARNING OPERATOR SERIAL# IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS 9001(7) ECN 1057 4/10/010...
-
Page 2: Specifications
SPECIFICATIONS MOTOR ELECTRICAL TYPE:........INTERMITTENT DC POWER SUPPLY:.....24VDC, 15W HORSEPOWER:......1/8 H.P. CONTROL STATION:....NEMA 1 3 BUTTON STATION OPEN/CLOSE/STOP VOLTAGE:.......115 SINGLE PHASE WIRING TYPE:......C2/B2 (STANDARD) CURRENT:.......2.5 AMP LIMIT ADJUST:......LINEAR DRIVEN, FULLY MAX LOAD:.......250 IN-LBS ADJUSTABLE SCREW TYPE CAMS MECHANICAL DRIVE REDUCTION:....43:1 REDUCTION IN LINE DOOR SPEED:......12"... -
Page 3: Theory Of Operation
THEORY OF OPERATION The FDO-A10E medium duty motor operator is designed for use only with Service Counter Fire Door models FD1O-1M and FD10-2M as manufactured by the Cookson Company Inc. Door sizes range from 4'-0" x 4'-0" to 14' max opening width to 9'-0" max clear opening height. -
Page 4: Important Installation Instructions
THEORY OF OPERATION (CONT.) The unit is not functional and the brake is released. (This unit when equipped with the Expansion Module is available with an optional Battery Back-Up power unit) This power unit will keep the processor in the controller energized and continue to monitor the alarm contacts for a change of status for up to 12 hours. -
Page 5: Operator Mounting
IMPORTANT SAFETY INSTRUCTIONS (CONT.) 4) Test the door's safety features at least once a month. After adjusting either the force or the limit of travel, retest the door operator's safety features. Failure to adjust the operator properly may cause severe injury or death. 5) KEEP DOORS PROPERLY OPERATING AND BALANCED. -
Page 6: Alarm Inputs
ALARM INPUTS 1) Alarm inputs (Terminals 5 & (-) minus) may be used to supply 24VDC for electronic alarm devices such as smoke detectors or similar systems. The alarm activation must be normally closed and must open in an alarm condition. If a normally closed contact is not available, a normally open (NO) contact may be used between terminals 12 &... -
Page 7: Limit Switch Adjustment
LIMIT SWITCH ADJUSTMENT MAKE SURE THE LIMIT NUTS ARE POSITIONED BETWEEN THE LIMIT SWITCH ACTUATORS BEFORE PROCEEDING WITH ADJUSTMENTS. MAKE SURE OPENING AND THE AREA NEAR DOOR/OPERATOR AND MECHANISMS ARE CLEAR OF OBSTRUCTIONS AND PERSONNEL. WARNING TO AVOID SERIOUS PERSONAL INJURY OR DEATH FROM ELECTROCUTION, DISCONNECT ELECTRIC POWER BEFORE MANUALLY MOVING LIMIT NUTS. - Page 9 FDO-A10 COVER PLEASE REFER TO DOOR INSTALLATION MANUAL FOR PROPER MOTOR CONNECTION AND ORIENTATION ON DOOR COVER WARNING A COVER MUST BE INSTALLED OVER DOOR BRACKET & MOTOR SPROCKETS WHEN MOVING PARTS ARE EXPOSED LESS THAN 8 FT FROM THE FLOOR 9001(7) ECN 1057 4/10/010...
- Page 10 FDO-A10 WIRING DIAGRAM WIRE SCHEDULE VOLTAGE WIRE GAGE 24VDC 18GA 120VAC 18GA 10 - BASE UNIT CAUTION: DISCONNECT POWER BEFORE OPENING COVER AND INSTALLATION. NOTES: 1) IF UNIT IS EQUIPPED WITH EXPANSION MODULE SEE PAGE 10 FOR ADDITIONAL WIRING CONNECTIONS. 2) RIGHT HAND DOORS SHOWN.
- Page 11 FDO-A10 WIRING DIAGRAM + TO 22 = WILL DISABLE ANY OPEN FUNCTION UPGRADED UNIT W/ADDENDUM DURING AN ACTIVE ALARM CONDITION. DOOR JUMPER CONFIGURATIONS WILL STOP AND NOT RELEASE UPON CONTACT WITH AN OBSTRUCTION, AND OPEN BUTTON TERMINALS WILL NOT OPERATE. THIS SETTING ONLY + TO 19 = CHANGES ALARM CLOSURE AFFECTS OPERATION DURING AN ACTIVE DELAY FROM 10 SECONDS TO...
-
Page 12: Control Connection Diagram
CONTROL CONNECTION DIAGRAM IMPORTANT NOTES: 1) The 3-Button Control Station provided must be connected for operation. ATTENTION ELECTRICIAN : USE 18 GAUGE STRANDED COPPER OR HEAVIER WIRE FOR ALL CONTROL CIRCUIT WIRING 3 BUTTON STATION OR 3 POSITION KEYSWITCH W/SPRING RETURN 3 BUTTON PUSH BUTTON STATION TO CENTER AND STOP BUTTON WITH KEY LOCKOUT... - Page 13 CONTROL CONNECTION DIAGRAM SMOKE DETECTOR WIRING SINGLE DOUBLE EXPANSION MODULE TERMINAL STRIP WITH OUTPUT TO SOUNDER STROBES SOUNDER STROBE SOUNDER STROBE 9001(7) ECN 1057 4/10/010...
-
Page 14: Control Panel
BATTERY BOX OPTION WIRING INSTRUCTIONS (OPTIONAL) CONTROL PANEL FROM BATTERY BOX CONNECTOR PLUG LOW VOLTAGE ONLY 24VDC 0.6 A NOTE: BATTERY BOX WILL NOT OPERATE MOTOR. IT WILL KEEP CIRCUITS AND BRAKE ENERGIZED IN THE EVENT OF POWER LOSS. IT WILL MONITOR ALARM SYSTEM AND CLOSE DOOR IF ACTIVE ALARM CONDITION IS DETECTED, THE CLOSE BUTTON IS DEPRESSED, OR THE... - Page 15 BATTERY BOX WIRING DIAGRAM 9001(7) ECN 1057 4/10/010...
- Page 16 MOVING DOOR WARNING PLACARD INSTALL MOVING DOOR WARNING PLACARD IN A CONSPICUOUS PLACE NEAR OPEN/CLOSE/STOP STATION AS INDICATED PLEASE REFER TO DOOR INSTALLATION MANUAL FOR PROPER MOTOR CONNECTION AND ORIENTATION ON DOOR WARNING PLACARD OPEN/CLOSE/STOP STATION 9001(7) ECN 1057 4/10/010...
-
Page 17: Maintenance Schedule
CAUTION: BEFORE SERVICING, ALWAYS DISCONNECT OPERATOR FROM POWER SUPPLY. WHEN ORDERING REPAIR PARTS PLEASE SUPPLY THE FOLLOWING INFORMATION: PART NUMBER - DESCRIPTION - MODEL NUMBER - JOB NUMBER ADDRESS ORDER TO: COOKSON ROLLING DOORS 2417 S. 50TH AVE PHOENIX, AZ. 85043 (602) 272-4244... - Page 18 MOTOR OPERATOR MAINTENANCE 1. Check wire connections for tightness and wire insulation for defects or abrasions. 2. Check to see that all conduit connections are secure. 3. Check wires to safety edge or photo-eyes. 4. Inspect operation of brake. 5. Inspect gearbox for leaks. 6.
