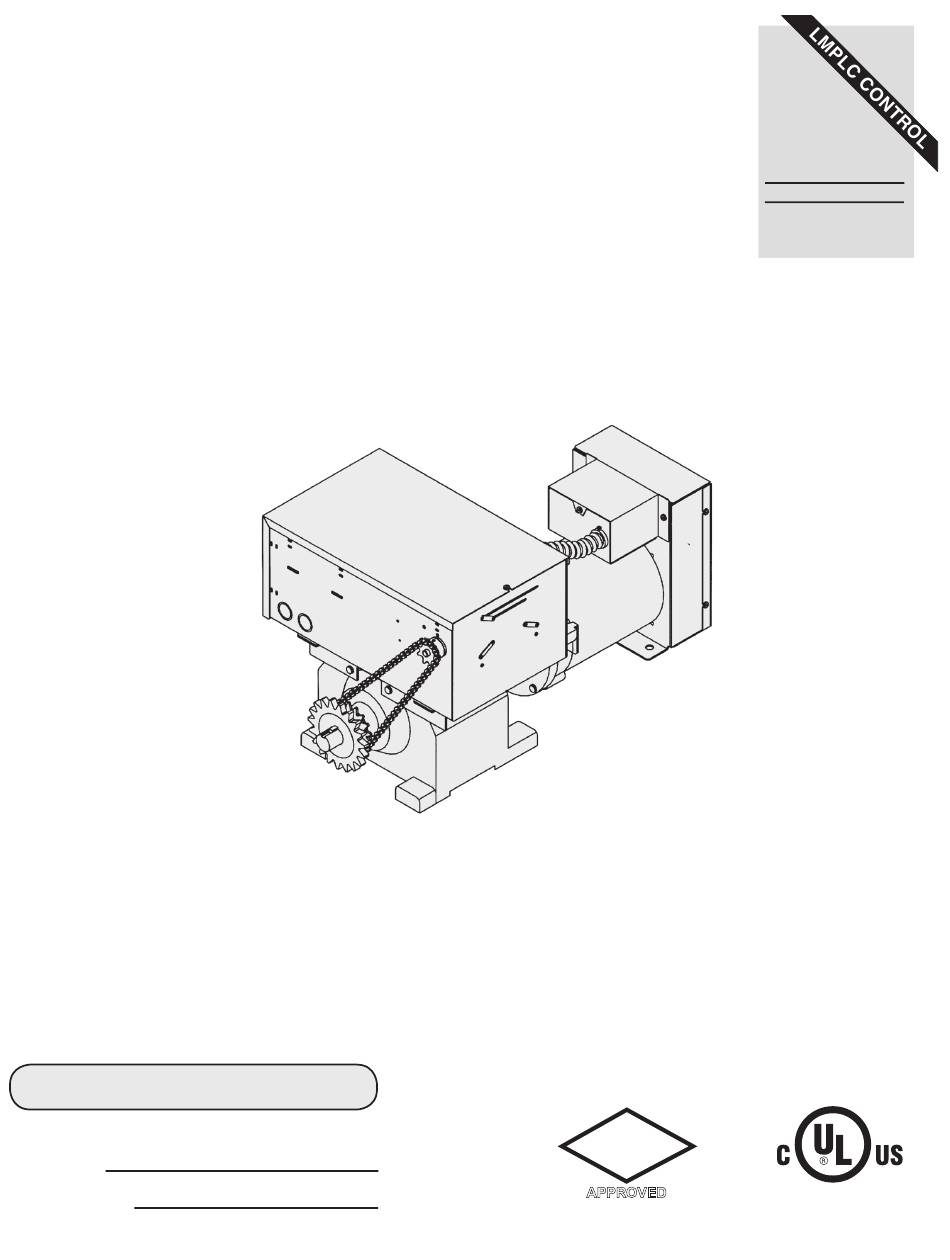

- Page 1 COOKSON OWNER’S MANUAL LMPLC FDO AC & BC C O N T R O L W I R E D B2/C2 Wiring SOLID STATE INDUSTRIAL DUTY FIRE DOOR OPERATOR FDO 1 & 1/2 HP FDO AC & BC 2 Y E A R W A R R A N T Y...
-
Page 2: Table Of Contents
T A B L E O F C O N T E N T S SPECIFICATIONS DIAGRAMS Operator Specifications....... . 3 Standard Power and Control Connection Diagrams . -
Page 3: Specifications
S P E C I F I C A T I O N S MOTOR ELECTRICAL TYPE: ..... . Continuous duty TRANSFORMER:. -
Page 4: Theory Of Operation
T H E O R Y O F O P E R A T I O N GENERAL DESCRIPTION: AC power. The battery is checked for presence once an The Fire Door Operator, FDO-A or FDO-B, is an integrated fire hour for 10 seconds. - Page 5 T H E O R Y O F O P E R A T I O N Battery Handling / Storage 2.5 UNIT HAS NO AC POWER & ACTIVE ALARM CONDITION: Refer to the battery manufacturer’s Safety Data Sheets • The warning system (optional) will activate. The door will (01-30839 "MSDS Sheets, Battery, Standard").
-
Page 6: Installation
I N S T A L L A T I O N Before your operator is installed, be sure the door has been properly aligned and is working smoothly. The operator may be wall mounted or mounted on a bracket or shelf. Refer to the To prevent possible SERIOUS INJURY or DEATH: illustration and instructions below that suits your application. -
Page 7: Entrapment Protection Accessories
I N S T A L L A T I O N ENTRAPMENT PROTECTION ACCESSORIES SENSING EDGES (REQUIRED B2 MODE) All types of sensing edges with an isolated normally open (N.O.) To avoid SERIOUS PERSONAL INJURY or DEATH, a sensing output are compatible with your operator. -
Page 8: Adjustment
A D J U S T M E N T LIMIT SWITCH ADJUSTMENT NOTE: Make sure the limit nuts are positioned between the limit switch actuators before proceeding with adjustments. RAYNOR To avoid SERIOUS PERSONAL INJURY or DEATH from 1. Depress retaining plate to allow nut to spin freely. After electrocution, disconnect electric power BEFORE manually adjustment, release plate and move nut back and forth to moving limit nuts. -
Page 9: Power Wiring & Ground Wiring
P O W E R W I R I N G & G R O U N D W I R I N G To reduce the risk of SEVERE INJURY or DEATH: • ALL electrical connections MUST be made by a qualified individual. -
Page 10: Control Station Wiring & Installation
C O N T R O L S T A T I O N W I R I N G A N D I N S T A L L A T I O N To reduce the risk of SEVERE INJURY or DEATH: •... -
Page 11: Standard Power And Control Connection Diagrams
S T A N D A R D P O W E R & C O N T R O L C O N N E C T I O N D I A G R A M S NOTE: The operator should be on a separate fused line of adequate capacity. -
Page 12: Logic Board Illustration
L O G I C B O A R D I L L U S T R A T I O N NOTE: For DIP switch field settings, see page 13. Dip Switches (S1) Terminal Block (J2) Terminal Block (J1) Heat Sink... -
Page 13: Optional Control Settings
O P T I O N A L C O N T R O L S E T T I N G S NOTE: All functions are independent of each other and do not require other control settings to be set at any certain configuration. -
Page 14: Phase Wiring Diagram
1 P H A S E W I R I N G D I A G R A M ( F D O 5 0 1 1 A C & F D O 5 0 2 1 A C ) NOTES: 1. -
Page 15: Phase Wiring Diagram
1 P H A S E W I R I N G D I A G R A M ( F D O 5 0 1 1 B C & F D O 5 0 2 1 B C ) NOTES: 1. -
Page 16: Phase Wiring Diagram
3 P H A S E W I R I N G D I A G R A M ( F D O 1 0 2 3 A C & F D O 1 0 4 3 A C ) NOTES: 1. -
Page 17: Phase Wiring Diagram
3 P H A S E W I R I N G D I A G R A M ( F D O 1 0 2 3 B C & F D O 1 0 4 3 B C ) NOTES: 1. -
Page 18: Maintenance Schedule / Contact Information
M A I N T E N A N C E S C H E D U L E Check at the intervals listed in the following chart: EVERY EVERY EVERY EVERY ITEM PROCEDURE 3 MONTHS 6 MONTHS 12 MONTHS 24 MONTHS Drive Chain Check for excessive slack... -
Page 19: Repair Parts Kits - Fdo5011Bc & Fdo5021Bc
R E P A I R P A R T S K I T S - F D O 5 0 1 1 B C & F D O 5 0 2 1 B C Refer to the parts lists below for replacement kits available for removed from these lists. -
Page 20: Illustrated Parts - Fdo5011Bc & Fdo5021Bc
I L L U S T R A T E D P A R T S - F D O 5 0 1 1 B C & F D O 5 0 2 1 B C... -
Page 21: Repair Parts Kits - Fdo5011Ac & Fdo5021Ac
R E P A I R P A R T S K I T S - F D O 5 0 1 1 A C & F D O 5 0 2 1 A C Refer to the parts lists below for replacement kits available for removed from these lists. -
Page 22: Illustrated Parts - Fdo5011Ac & Fdo5021Ac
I L L U S T R A T E D P A R T S - F D O 5 0 1 1 A C & F D O 5 0 2 1 A C... -
Page 23: Repair Parts Kits - Fdo1023Bc & Fdo1043Bc
R E P A I R P A R T S K I T S - F D O 1 0 2 3 B C & F D O 1 0 4 3 B C Refer to the parts lists below for replacement kits available for removed from these lists. -
Page 24: Illustrated Parts - Fdo1023Bc & Fdo1043Bc
I L L U S T R A T E D P A R T S - F D O 1 0 2 3 B C & F D O 1 0 4 3 B C... -
Page 25: Repair Parts Kits - Fdo1023Ac & Fdo1043Ac
R E P A I R P A R T S K I T S - F D O 1 0 2 3 A C & F D O 1 0 4 3 A C Refer to the parts lists below for replacement kits available for removed from these lists. -
Page 26: Illustrated Parts - Fdo1023Ac & Fdo1043Ac
I L L U S T R A T E D P A R T S - F D O 1 0 2 3 A C & F D O 1 0 4 3 A C... -
Page 27: Operator Notes
O P E R A T O R N O T E S... -
Page 28: Control Connection Diagram
C O N T R O L C O N N E C T I O N D I A G R A M IMPORTANT NOTE: The 3-Button Control Station provided must be connected for operation. 3-BUTTON STATION OR 3 POSITION KEYSWITCH WITH SPRING RETURN TO CENTER AND STOP BUTTON STANDARD 2 OR MORE KEY-TEST...
