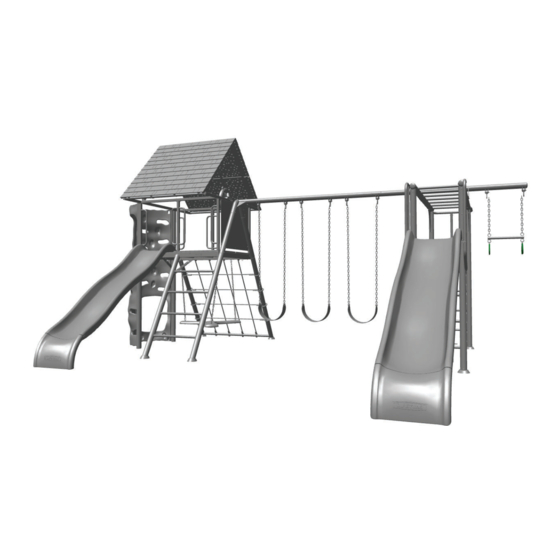

Lifetime BIG STUFF DELUXE Assembly Instructions Manual

BIG STUFF
SWING SET
MODEL 91087
BEFORE ASSEMBLY:
• Prepare a level surface with the proper Safety Zone
(see page 12).
• 2+ adults recommended for setup.
• Inspect all parts and hardware. Ensure all are
included using the parts identifier in the middle of
these instructions. The parts identifier , in yellow,
can be removed from the instructions for quick
reference.
WARNING: Only for domestic use.
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
TOOLS REQUIRED
(Not included—unless indicated otherwise)
(1)
(1)
QUESTIONS?
CONTACT LIFETIME CUSTOMER SERVICE:
Call: 1-800-225-3865
7:00 am–5:00 pm (Monday–Friday) MST
and 9:00 am–1:00 pm Saturday MST
(English, French, Spanish)
® DELUXE
1/2 in/po (≈13 mm)
(1, included)
(2)
3/16 in/po (≈5 mm)
(1)
(2, included)
(1)
1/4 in/po (≈6 mm)
(1)
(1)
Live Chat:
www.lifetime.com/customerservice
(click on "LIVE CHAT" tab)
ASSEMBLY INSTRUCTIONS
Pour le français, voir la page 2. Para el español, ver la página 3.
(1)
5/16 in/po (≈8 mm)
(1)
(2)
Model Number: 91087
Product ID:
TABLE OF CONTENTS
Icon legend...................................4
Warnings and notices..................5
Safety information.......................6
Safe play area............................12
Spare hardware bag...................13
A-frame assembly.......................14
Monkey bar assembly.................21
Slide assembly............................29
Fire pole assembly......................36
Deck support assembly..............40
Parts identifi er............................i-iv
Deck assembly............................56
Climbing wall and chalkboard
assembly.................................66
Roof assembly............................74
Slide and accessories assembly..80
Swing assembly..........................89
Maintenance............................94
Registration..............................97
Warning sticker.........................100
Warranty.............................101
