Reference Manual
00909-0300-4975, Rev AA
April 2022
™

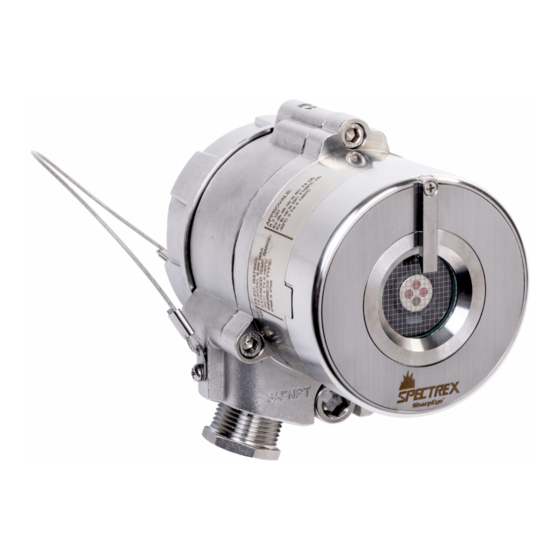

Spectrex SharpEye
40/40C & 40/40D Series
Flame Detectors

Advertisement

loading
Need help?

Need help?

Do you have a question about the SharpEye 40/40C Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Spectrex SharpEye 40/40C Series

Summary of Contents for Spectrex SharpEye 40/40C Series

  • Page 1 Reference Manual 00909-0300-4975, Rev AA April 2022 ™ Spectrex SharpEye 40/40C & 40/40D Series Flame Detectors...

  • Page 3: Table Of Contents

    2.1 Download the HART device driver (DD)..................7 ® 2.2 Load device driver (DD) on HART hand-held communicator............7 ® Chapter 3 Operating the HART hand-held communicator............9 3.1 Overview screen........................10 3.2 Device information screen......................11 3.3 Service tools screen........................15 Spectrex SharpEye 40/40...
  • Page 4 Contents Reference Manual April 2022 00909-0300-4975 Spectrex.net...

  • Page 5: Chapter 1 Introduction

    SharpEye 40/40 Flame Detectors to suit customer needs, perform firmware upgrades, and find troubleshooting information and functionality. This manual also describes the HART hand-held communicator software and provides instructions on how to install, operate, and maintain the software. Spectrex SharpEye 40/40...
  • Page 6 Introduction Reference Manual April 2022 00909-0300-4975 Spectrex.net...

  • Page 7: Chapter 2 Installation

    Download the HART device driver (DD) To download the HART device driver: Procedure 1. Go to Spectrex.net. 2. Navigate to the relevant product page. 3. Scroll down to Documents and Drawings. 4. Click SOFTWARE DOWNLOADS & DRIVERS. 5. Download the relevant file.
  • Page 8 Installation Reference Manual April 2022 00909-0300-4975 Spectrex.net...

  • Page 9: Operating The Hart ® Hand-Held Communicator

    April 2022 ® Operating the HART hand-held communicator From the main screen, you have three options: Figure 3-1: Main screen A. Overview: Opens Overview screen. B. Service Tools: Opens Service Tools screen. C. Configure: Opens Configure screen. Spectrex SharpEye 40/40...

  • Page 10: Overview Screen

    F. Locate Device: Click here to make the device light-emitting diode (LED) blink to locate a connected device. G. Log: Shortcut to Log screen. H. Device Information: Displays Device Information screen. When you open the Device Information screen from the Overview screen, all fields are read only. Spectrex.net...

  • Page 11: Device Information Screen

    ® Reference Manual Operating the HART hand-held communicator 00909-0300-4975 April 2022 Device information screen Figure 3-3: Device information screen A. Identification: Opens Identification screen. B. Revisions: Opens Revisions screen. C. Security: Opens Security screen. Spectrex SharpEye 40/40...
  • Page 12 C. Model D. Final asmbly num (Final assembly number) E. Dev id (Device identification) F. Date G. Descriptor H. Message I. Model Number Note When you access the Identification screen from the Overview screen, all fields are read only. Spectrex.net...
  • Page 13 00909-0300-4975 April 2022 3.2.2 Revision numbers screen A. Universal rev: Universal revision B. Fld dev rev: Field device revision C. Hardware rev: Hardware revision D. Software rev: Software revision E. DD Revision: Device driver revision Spectrex SharpEye 40/40...
  • Page 14 ® Operating the HART hand-held communicator Reference Manual April 2022 00909-0300-4975 3.2.3 Security screen A. Device lock status. B. Password Protection: Enabled or Disabled. Spectrex.net...

  • Page 15: Service Tools Screen

    00909-0300-4975 April 2022 Service tools screen The Service Tools screen provides links to sub-screens, in which you can view and edit service-related device parameters. Figure 3-4: Service tools screen A. Alerts B. Variables C. Trends D. Maintenance Spectrex SharpEye 40/40...
  • Page 16 Alerts screen The Alerts screen provides information about device alerts and enables you to reset any active alerts. Figure 3-5: Alerts screen A. Refresh Alerts: Tap to refresh alert status. B. Displays alert status: No Active Alerts in this example. Spectrex.net...
  • Page 17 B. Primary Variable: Opens screen where you can select analog output variables. C. Secondary Variable: Opens screen where you can select temperature-related variables. D. Tertiary Variable: Opens screen where you can select voltage-related variables. E. Quaternary Variable: Opens screen where you can select heater-related variables. Spectrex SharpEye 40/40...
  • Page 18 Reference Manual April 2022 00909-0300-4975 Primary variable screen The Primary Variable screen displays the analog output. Figure 3-7: Primary variable screen A. Analog Output: Displays analog output. B. Analog Output gauge: Tap to display Analog Output Gauge screen. Spectrex.net...
  • Page 19 The Secondary Variable screen displays electronics information. Figure 3-8: Secondary variable screen A. Electronics Temperature: Displays electronics temperature. B. Temperature Status: Displays how well the temperature is being read. C. Electronics Temperature gauge: Tap to display Electronics Temperature gauge screen. Spectrex SharpEye 40/40...
  • Page 20 Tertiary variable screen The Tertiary Variable screen displays voltage information. A. Supply Voltage: Displays current supply voltage. B. Voltage Status: Displays how well the voltage is being read. C. Supply Voltage gauge: Tap to display the Supply Voltage Gauge screen. Spectrex.net...
  • Page 21 ® Reference Manual Operating the HART hand-held communicator 00909-0300-4975 April 2022 Quaternary variable screen The Quaternary Variable screen displays heater information. A. Heater State: Displays heater state - On or Off. Spectrex SharpEye 40/40...
  • Page 22 From the Trends screen, you can view the variables listed on a graph. Figure 3-9: Trends screen A. Analog Output: Displays the analog output on a graph. B. Electronics Temperature: Displays the electronics temperature on a graph. C. Supply Voltage: Displays the supply voltage on a graph. Spectrex.net...
  • Page 23 April 2022 3.3.4 Maintenance screen Figure 3-10: Maintenance screen A. Routine Maintenance: Opens screen with routine maintenance functions. B. Log: Opens screen with event logs. C. Reset/Restore: Opens a screen from which you can reset the detector. Spectrex SharpEye 40/40...
  • Page 24 A. Manual Built In Test: Performs manual built-in test. B. Analog Trim. Calibrates 4-20 mA. (1) With the analog trim function, you can round multimeter values to a 4-mA fixed value. Tap Analog Trim and then enter and confirm the multimeter reading. Spectrex.net...
  • Page 25 B. Previous Log Records: Displays previous log records. C. Last Log Records: Displays the latest Log Record screen. D. Next Log Records: Displays the next Log Record screen. E. Device Log: Displays the log in a table. Spectrex SharpEye 40/40...
  • Page 26 ® Operating the HART hand-held communicator Reference Manual April 2022 00909-0300-4975 Reset/Restore screen A. Reset Device: Performs soft reset. Spectrex.net...
  • Page 27 From the Configure screen, you can configure the detector's parameters manually or using the wizard. Figure 3-12: Configure screen A. Guided Setup: Opens screen from which you can configure parameters using the wizard. B. Manual Setup: Opens screen from which you can manually configure parameters. Spectrex SharpEye 40/40...
  • Page 28 F. Access Control: Guides you through access control configuration. G. 4-20 Current: Guides you through the 4-20 mA current configuration. H. Device Information: Guides you through detector information configuration. (2) This is available for the SharpEye 40/40D models only. Spectrex.net...
  • Page 29 F. Security: Opens Security screen. G. Current Levels: Displays levels. H. Device Information: Displays the Device Information screen. See Device information screen. I. HART: Opens HART Settings screen. (3) This is available for SharpEye 40/40D models only. Spectrex SharpEye 40/40...
  • Page 30 00909-0300-4975 Detector settings screen Figure 3-15: Detector settings screen A. Sensitivity: Selects the sensitivity. See the options displayed in the SharpEye 40/40 Quick Start Guide. B. Alarm: Opens the Alarm screen. C. Window Heater: Opens Window Heater Settings screen. Spectrex.net...
  • Page 31 A. Alarm Delay: Select alarm delay. Options are: • 0 sec • Antiflare • 3 sec • 5 sec • 10 sec • 15 sec • 20 sec • 30 sec B. Alarm Latch: Activate or deactivate alarm latch. Spectrex SharpEye 40/40...
  • Page 32 Auto Window heater turns on when the environment reaches the activation temperature. Window heater is on all the time. B. Heater Power: Select power mode: low or high. C. Heater Activation Temperature: Heater activation temperature in degrees Celsius. Options are: • • • • • • • Spectrex.net...
  • Page 33 B. Accessory Relay on Manual BIT: Activate or deactivate accessory relay on BIT. C. Automatic BIT: Activate or deactivate automatic BIT. D. BIT Interval: Manually select BIT interval. E. BIT Fault Count: Manually select BIT fault count. F. Post Manual BIT Duration: Set post manual BIT duration in seconds. Spectrex SharpEye 40/40...
  • Page 34 B. Fast Detection: Enable or disable fast detection. C. IR/UV/UV+IR: Select single infrared (IR), single ultraviolet (UV), or both UV and IR channels. (4) This is available for SharpEye 40/40D models only. (5) This is available for UV/IR models only. Spectrex.net...
  • Page 35 B. Lock/Unlock: Lock or unlock the detector for maintenance. No other device can configure the detector while it is locked. C. Password Protection: Displays password protection status. D. Enable/Disable Password: Enable password protection to prevent unauthorized access. Spectrex SharpEye 40/40...
  • Page 36 E. Warning: Current displayed during warning. 13 - 16 mA (should always be lower than alarm value). Default: 16 mA. F. Alarm: Current displayed during alarm. 15 - 20 mA (should always be higher than warning). Default: 20 mA. (6) This is available with SharpEye 40/40 models only. Spectrex.net...
  • Page 37 B. Long tag: Displays detector long tag. This is editable. C. Model: Displays detector model. D. Final asmbly num: Displays final assembly number. This is editable. E. Dev id: Displays device identification number. F. Date: Displays current date. G. Descriptor. H. Message. I. Model Number. Spectrex SharpEye 40/40...
  • Page 38 Figure 3-23: Revision numbers screen ® A. Universal rev: Displays HART revision number. B. Fld dev rev: Displays device revision number. C. Hardware rev: Displays hardware revision number. D. Software rev: Displays software revision number. E. DD Revision: Displays device driver revision number. Spectrex.net...
  • Page 39 Operating the HART hand-held communicator 00909-0300-4975 April 2022 ® Figure 3-24: HART screen A. Poll addr: Displays polling address. B. Change Poll Address: Tap to change polling address. C. Reset "Configuration Changed" flag: Tap to reset configuration change count. Spectrex SharpEye 40/40...
  • Page 40 B. Long tag: Displays detector long tag. This is editable. C. Model: Displays detector model. D. Final asmbly num: Displays final assembly number. This is editable. E. Dev id: Displays device identification number. F. Date: Displays current date. G. Descriptor. H. Message. I. Model Number. Spectrex.net...
  • Page 41 A. Universal rev: Displays HART revision number. B. Fld dev rev: Displays device revision number. C. Hardware rev: Displays hardware revision number. D. Software rev: Displays software revision number. E. DD Revision: Displays device driver revision number. Spectrex SharpEye 40/40...
  • Page 42 ® Operating the HART hand-held communicator Reference Manual April 2022 00909-0300-4975 HART screen A. Poll addr: Displays polling address. B. Change Poll Address: Tap to change polling address. C. Reset "Configuration Changed" flag: Tap to reset configuration change count. Spectrex.net...
  • Page 43 Reference Manual 00909-0300-4975 April 2022 Spectrex SharpEye 40/40...
  • Page 44 00909-0300-4975 Rev. AA 2022 For more information: Emerson.com © 2022 Emerson. All rights reserved. Spectrex is a mark of one of the Emerson family of companies. All other marks are the property of their respective owners.
