Hubbell GAI-Tronics 13314 Series Manual

Model 13314-001 Div. 2 Hazardous Area

Confidentiality Notice

This manual is provided solely as an operational, installation, and maintenance guide and contains
sensitive business and technical information that is confidential and proprietary to GAI-Tronics. GAI-
Tronics retains all intellectual property and other rights in or to the information contained herein, and
such information may only be used in connection with the operation of your GAI-Tronics product or
system. This manual may not be disclosed in any form, in whole or in part, directly or indirectly, to any
third party.

Introduction

The GAI-Tronics Model 13314-001 Div. 2 Hazardous Area 8-Ohm Horn Driver is constructed of black
glass and fiber-reinforced polyester thermoplastic and has a rain-tight construction. It is built to
withstand harsh industrial environments and is approved for installation in hazardous areas.

Mounting Instructions

A typical installation of a 13314 Series Driver with an associated horn and mounting assembly is shown
in Figure 2. The recommended mounting height for the driver is 9 feet (2.7 meters) from the floor. The
installation of this speaker assembly must conform to regulations governing electrical equipment for
hazardous locations and provisions of the National Electrical Code.
WARNING
No alterations may be made to these driver units.
Refer to the following chart to verify that the horn is paired with the
correct speaker mounting assembly.
Horn Speaker Mounting
Series Assembly
13302 411A
13304 411A
13305 411A
13306 414-002
13309 411A
13340 411A
GAI-TRONICS 3030 KUTZTOWN RD. READING, PA 19605 USA
610-777-1374
V
ISIT WWW
G A I - T R O N I C S ®
A H U B B E L L C O M P A N Y
8-Ohm Horn Driver
800-492-1212
. - .
GAI TRONICS COM FOR PRODUCT LITERATURE AND MANUALS

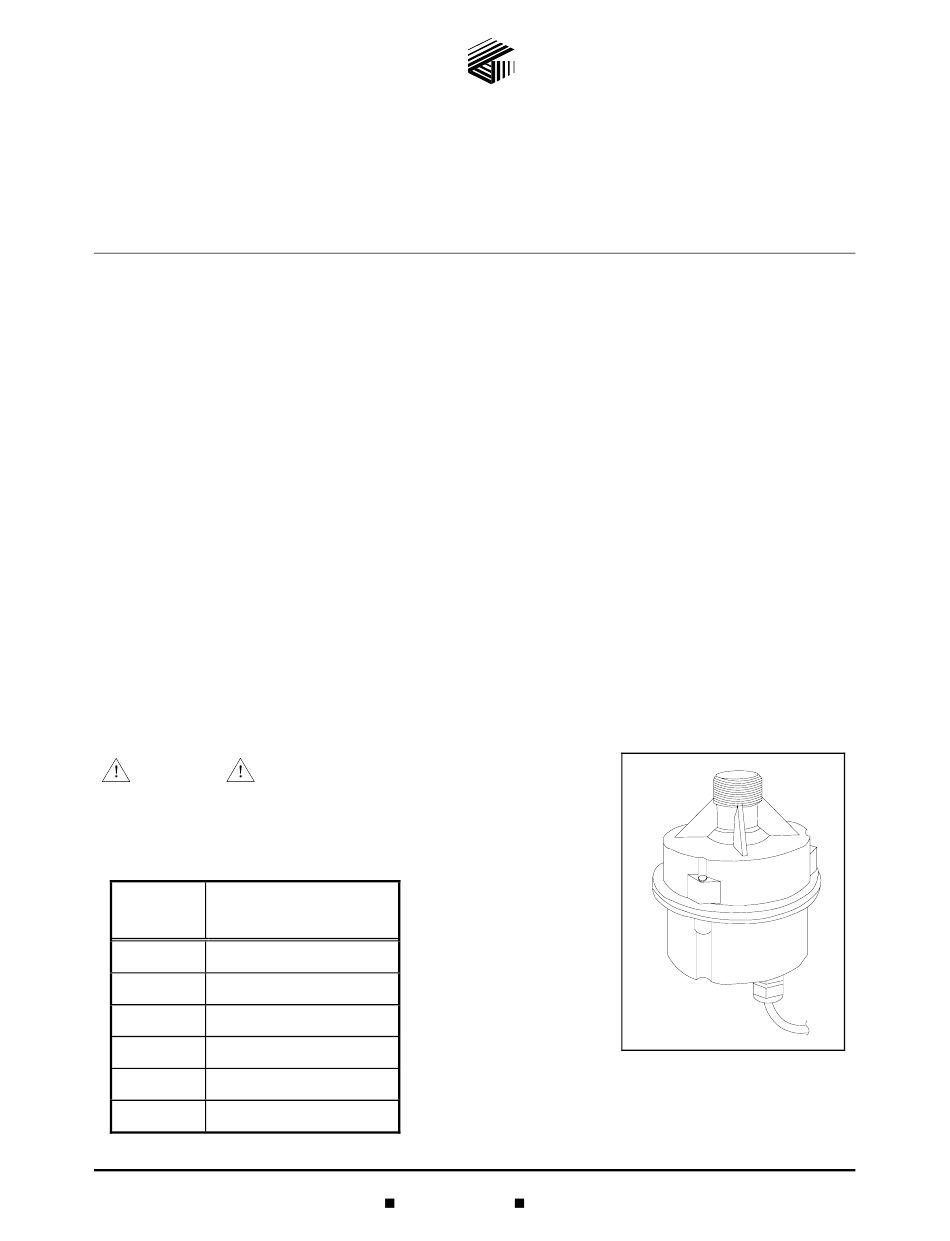

Figure 1. Model 13314-001
Div. 2 Hazardous Area 8-Ohm
Horn Driver
Fax: 610-796-5954
Pub. 42004-056F
