Kiloview RU-01 Quick Start Manual

Frame

Advertisement

Quick Links

RU-01 Frame
(2022-07 version)
Contents
Packing List
Interface description
Power components installation and removal
Card installation and removal
Before using this product, it is recommended that you read the guide carefully. To ensure your personal safety and avoid physical or electrical damage to the
device, please strictly follow the instructions of this guide to install and use it under the guidance of professionals. Incorrect electrical connections or physical
installation may cause permanent damage to the device and even threaten personal safety.
Leading solution provider of IP-based video transmission
Quick Start Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the RU-01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kiloview RU-01

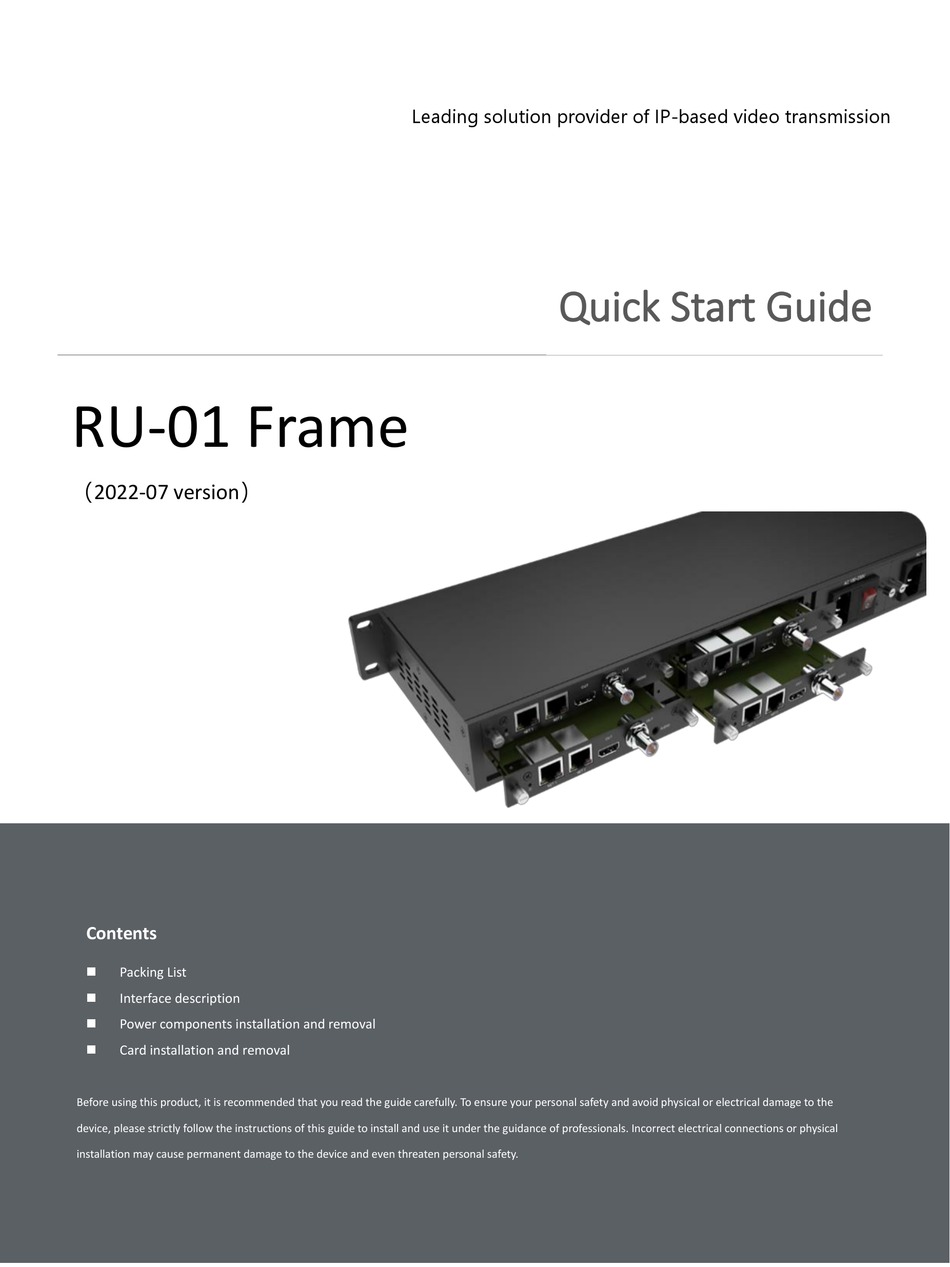

  • Page 1 Leading solution provider of IP-based video transmission Quick Start Guide RU-01 Frame (2022-07 version) Contents ◼ Packing List ◼ Interface description ◼ Power components installation and removal ◼ Card installation and removal Before using this product, it is recommended that you read the guide carefully. To ensure your personal safety and avoid physical or electrical damage to the device, please strictly follow the instructions of this guide to install and use it under the guidance of professionals.
  • Page 2 Page 1 Packing List (1) Device ×1 (2) Quick Start Guide×1 2 Interface description 1. Power light 2. Working indicators 3. Power card slot 4. Card slot...
  • Page 3 Page 3 LED light PWR1 and PWR2 respectively correspond to two power status indicators, and four card indicators display four card working states. Name Status Description No power supplied or device failure PWR1/PWR2 power light Red light always on Working Not enabled, not insert the card or the card works abnormally...
  • Page 4 Page 5 Power components installation and removal Align the power components with the card slots and push in parallel, then tighten the double-sided screws. Reverse the process for removal. 1. Align and push the power in parallel 2. Tighten the left and right screws Note: The two power components work uninterrupted at the same time.
