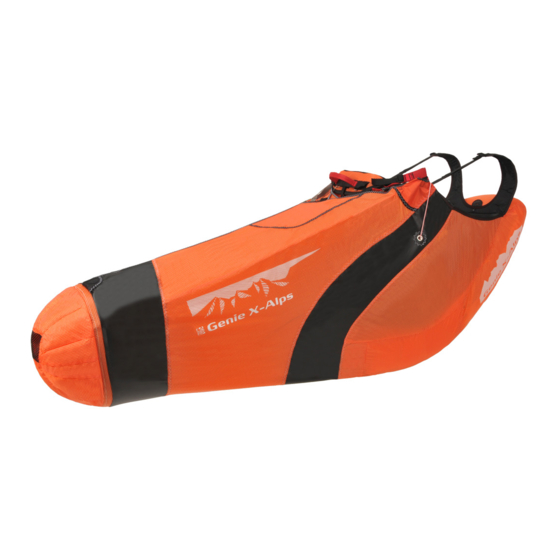

Gin Genie X-Alps Pilot's Manual

Ultra lightweight competition harness
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Genie X-Alps and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gin Genie X-Alps

Summary of Contents for Gin Genie X-Alps

  • Page 2 Genie X-Alps pilot manual v1.1 06/2015...
  • Page 3 Ultra lightweight X-Alps Competition Harness...

  • Page 4: Table Of Contents

    Contents Thank you ..............5 Warning ..............6 About Gin Gliders ............7 Introducing the Genie X-Alps ........8 Specifications .............9 Before you fly ............13 Flying with the Genie X-Alps ........28 Maintenance and repairs ..........31 Final words ...............34 ............35 Technical data Materials ..............37...

  • Page 5: Thank You

    Thank you..for choosing Gin Gliders. We are confident you’ll enjoy many rewarding experiences in the air with your GIN equipment. This manual contains important safety, performance and maintenance information. Read it before your first flight, keep it for reference, and please pass it on to the new owner if you ever re-sell your equipment.

  • Page 6: Warning

    Neither Gin Gliders nor the seller of GIN equipment can guarantee, or be held responsible for, the safety of yourself or anyone else.

  • Page 7: About Gin Gliders

    About Gin Gliders Dream In forming Gin Gliders, designer and competition pilot Gin Seok Song had one simple dream: to make the best possible paragliding equipment that pilots all over the world would love to fly— whatever their ambitions. At Gin Gliders, we bring together consultant aerodynamists, world cup pilots, engineers and paragliding school instructors, all dedicated to fulfilling this dream.

  • Page 8: Introducing The Genie X-Alps

    The range of 6 sizes gives you the best possible fit without the need for complicated adjustments. State-of-the-art lightness The Genie X-Alps is one of the lightest harnesses of its kind. It is also strong and easy to pack and carry. As with any lightweight equipment, a technical understanding of the product is necessary to obtain the longest possible period of use.

  • Page 9: Specifications

    Specifications The Genie X-Alps has EN and LTF certification. Size Weight (kg) Pilot height (cm) 155-165 160-170 165-175 170-180- 175-185 180-190 Delivery package 1 Harness with Ginsoft X-Alps 1 Carbon footplate 2 Yeti peguet carabiners 1 Rescue deployment handle 1 Rescue Y-bridle...
  • Page 10 Components of the Genie X-Alps Dyneema fabric 30mm Yeti Peguet carabiners X-Alps rescue deck 2-Step speedbar Back protection Harken & Ronstan pulley Carbon footplate...
  • Page 11 Carbon footplate Everything on the Genie X-Alps harness has been engineered to achieve the lightest harness in production. The Genie X-Alps comes standard with a carbon footplate for a better cocoon shape and improved aerodynamics.
  • Page 12 The Genie X-Alps is equipped with a lightweight 2 step speedbar that allows for more precise pilot input and speed control. Ronstan pulley The Genie X-Alps uses 2 lightweight pulleys to make the use of the speed system both easy and comfortable. The lightweight ball-bearing pulleys offer a smooth glide when applying the speedbar.

  • Page 13: Before You Fly

    Gin Gliders recommends that assembly be carried out in the following order. If you are in any doubt whatsoever about this procedure, please seek professional advice from your instructor, GIN dealer or importer.
  • Page 14 Installing the back protector The Genie X-Alps has a removable 14cm mousse bag back protector. The back protector comes pre-installed in the harness. If the back protector has been removed then follow these instructions for re-installation. To install the protector, first open the back protector pocket located under the harness seat.
  • Page 15 Connecting the carabiner Connecting the harness straps to the main carabiners needs to be done in a specific order. Follow the sequence from the image below. Seat strap BACK FRONT Main harness riser & lateral strap Side strap Upper cocoon adjustment *refer to page 24 for harness strap labeling...
  • Page 16 IMPORTANT: You must perform a test installation. deployment from a simulator to verify the The Genie X-Alps comes with the x-lite front rescue container that is compatible with Yeti rescue installation. parachutes (#27,35,40). Other manufacturers’ rescues may also be used but we cannot guarantee their function.
  • Page 17 Connecting the rescue bridle WARNING: When connecting the rescue bridle To connect a rescue to your harness we recommend using a GIN Rescue Carabiner. If you choose be sure to secure the connection using tape, to use different type of connector, it should be rated at least 9 times the maximum weight. For rubber bands or heat shrink wrap.
  • Page 18 The deployment bag of other manufacturers’ rescue systems (i.e. non-GIN rescue systems) may have different loop positions which may cause a deployment failure. Be sure to contact your parachute dealer or a qualified professional to check the connection, position and secure...
  • Page 19 Rescue installation guide WARNING: When installing the reserve The Genie X-Alps comes with the X-Lite rescue deck. The X-Lite rescue deck is designed to attach make sure the reserve handle is up and the to the main carabiners and is designed with adjustable support straps for pilot comfort. It is very reserve lines are facing down.
  • Page 21 X-Alps rescue deck attachment To attach the rescue deck to the Genie X-Alps, first connect the Y bridle risers (1) to the main carabiners. After connecting the flight deck close the cocoon, right side first, left side second. Make sure to leave the rescue handle (2) exposed, above the cocoon.
  • Page 22 Storage Back Pocket The Genie X-Alps features a large back pocket with room to store your rucksack and extra gear you want to carry with you while flying. Sewn into the pocket is a pouch for a hydration pack. At the top of the pocket is a hole for your hydration hose and/or radio cord.
  • Page 23 NOTE: Make sure that the rescue system has been installed before making The Genie X-Alps harness is uniquely designed to be a near custom fit for each pilots size. The adjustments. wide selection of harness sizes helps reduce the weight by removing unnecessary buckles and straps.
  • Page 24 Adjustments to the seat straps can not be performed while flying. Side Straps (control angle of seat) (3) The side straps of the Genie X-Alps are factory set to the optimum flying position. Further adjustment to the side straps may be done by tying a knot in the Dyneema line.
  • Page 25 Footplate adjustment strap NOTE: The proper adjustment of the cocoon Use the Orange and Blue footplate straps to adjust the length of the cocoon to match your allows for safer flying and better perfor- physique. Adjustments should be done while hanging in a simulator before your first flight. Do not mance.
  • Page 26 Cocoon straps IMPORTANT: Before take-off, loosen the The cocoon straps are used to pull the upper fabric of the cocoon tight during flight to decrease cocoon straps. After take-off pull on the drag and improve the flying characteristics of your harness. green loops to tighten.
  • Page 27 Seat adjustment strap SHORT LONG...

  • Page 28: Flying With The Genie X-Alps

    Flying with the Genie X-Alps IMPORTANT: Use a complete and consistent system of pre-flight checks and repeat the same sequence every flight. General warnings and advice Before every flight, check the following: Are you in good physical and mental condition? Are you familiar and compliant with all applicable laws and regulations in your area? Are you within the certified weight range of your paraglider?
  • Page 29 Are all buckles, belts, zips securely fastened? Buckles should click into place as you close them, IMPORTANT: In normal flight, periodically and a gentle pull on the fastened buckle verifies this. Secure any zips after fastening the buckles. feel the position of the rescue handle so Take extra care in snowy or sandy environments.
  • Page 30 Miscellaneous Towing The Genie X-Alps can be used for towed launches. The tow bridle release should be hooked directly to the main carabiners, ensuring that the carabiners are positioned with the opening bar facing the rear. For further details, refer to the documentation provided with your tow release, or ask a qualified towing instructor at your flying site.

  • Page 31: Maintenance And Repairs

    Maintenance and repairs IMPORTANT: Any repairs should only be carried out by the manufacturer or by an approved agent. This will ensure that the correct materials and repair techniques The materials used in this harness have been carefully selected for maximum durability. are used.
  • Page 32 All sewing must be intact and any anomalies attended to immediately to avoid exacerbation of the problem. Special attention should be paid to the rescue installation, particularly the elastic and Velcro parts. The main carabiners must be replaced at least every 5 years or after 500 hours, whatever comes first.
  • Page 33 The synthetic materials used in a harness must be disposed of properly. If you are not able to arrange appropriate disposal, Gin Gliders will be happy to recycle the harness for you. Send the harness with a short note to this effect to Gin Gliders Inc.

  • Page 34: Final Words

    There is no substitute for self-responsibility and good judgment. In the end, paragliding offers a unique opportunity to learn to take control of your own destiny. Memento mori, carpe diem! Fly safely, and...E N J O Y! GIN team...

  • Page 35: Technical Data

    175-185 180-190 Height of attachment points (cm) Carabiner distance (cm) Certification The Genie X-Alps has EN and LTF certification, max load 120daN Genie X-Alps harness: (EN) _______, (LTF) _______ Parachute container Removable front rescue deck Back protection 14cm mousse bag...
  • Page 36 Harness measurements lateral adjustment max- 145 min- 50 carabiner distance seat depth seat width...

  • Page 37: Materials

    Materials Harness fabric Outer 40D(66)N/Dyneema R/S PU ORANGE Inner ROBIC PING DOBBY 60” BK Webbing Dyneema 30mm, 12mm Tread P/F 210 D/9 Bonded, P/F 210 D/4 & 210 D/6 Bonded Polyester...
  • Page 38 Harness details Size Colour Serial Number Check flight (date): Mark and signature: Inspections and repairs overview Date Work carried General conditions Completed by Stamp and signature on delivery (name)
  • Page 39 Pilot details / Proof of ownership 1. Owner Name: Address: Phone: Email: 2. Owner Name: Address: Phone: Email: 3. Owner Name: Address: Phone: Email:...
  • Page 40 www.gingliders.com Dream. Touch. Believe...
