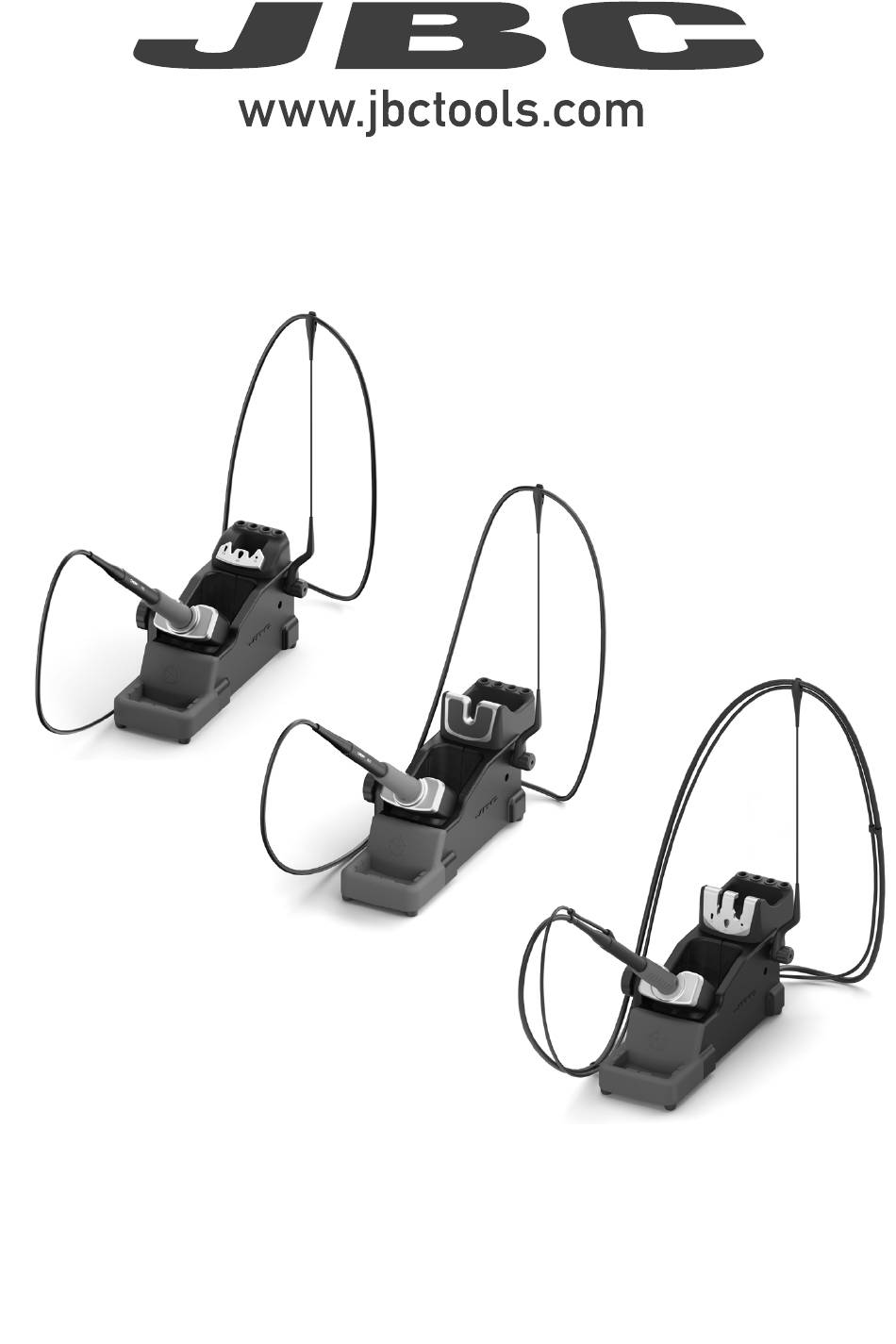

- Page 1 INSTRUCTION MANUAL ADS / HDS / DNS Stands for Handles...
-
Page 2: Packing List
This manual corresponds to the following references: AD-SF (for T210 & T245 Handles) HD-SF (for T470 Heavy Duty Handles) DN-SF (for T210N/T245N/T470N Nitrogen Handles) Packing List Box includes one stand according to purchased reference. Stand for T210 & T245 Stand for T470 Heavy Duty Stand for T210N/T245N/T470N Handles ...... -
Page 3: Features And Connections

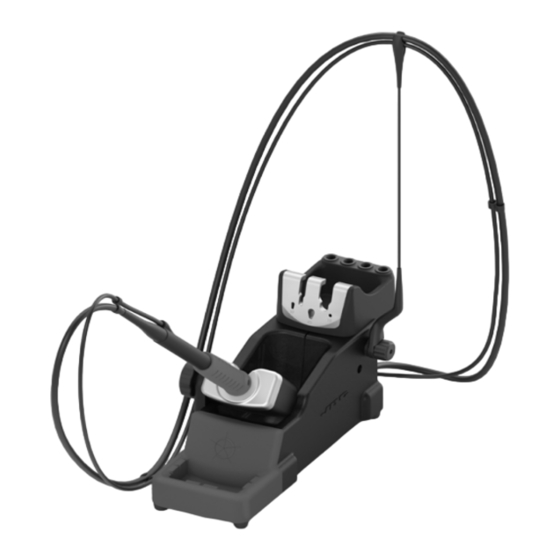

w w w.jbctools.com Features and Connections Adjustable Cartridge Storage Cable Collector Ref. CC1001 Quick Tip Changer Ajustable Tool Holder Brass Wool (inside) Wiper for Sponge Modular Tool Stand Ref. CL7899 To Control Unit To Tool (DIU, DDU or DMU) - Page 4 Assembly Cable Collector and Adjustable Tool Holder The cable collector is flexible. It accompanies and adapts to the movements during the soldering process. Insert the cable into the cable collector clip. Do not leave the cable longer than necessary to reach the work area freely. Adjust the tool holder angle to suit the work position.
- Page 5 Ref. AD-SF 1. Removing 2. Inserting 3. Fixing for ADS and DNS Place the cartridge in the Place the handle on top Use the holes to fix the extractor and pull the handle...
- Page 6 The quick tip changer area of DNS stand features both, one slot for cartridge exchange and one for nozzle exchange. The nozzle exchange works as well as the cartridge exchange. Use the fixings holes as described for the ADS on page 5. Cartrige...
- Page 7 w w w.jbctools.com Wiper and Brass Wool Replacement The wiper and brass wool can easily be removed for cleaning or replacement when they are worn. Lift the wiper at its front edge. Remove the wiper by pulling Replace the brass wool with it out.
- Page 8 Compatibility - Stand/Tool/Control Unit Stands for T210 & T245 for T470 Heavy for T210/T245/T470 Handles Duty Handles Nitrogen Handles Control Units DIU, DDU, DMU DIU, DDU, DMU Handles T210 Presicion Handle T210P Blue Grip Precision Handle T210N Nitrogen Precision Purpose Handle T245 General Purpose Handle T245G...
-
Page 9: Maintenance
- Periodically check all cables and tube con- nections. - Replace any defective or damaged parts. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service. - Page 10 Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the stands for any purpose other than soldering or rework. - The power cord must be plugged into approved bases. Be sure that it is properly grounded before use.
-
Page 11: Specifications
w w w.jbctools.com Specifications Stand for T210 & T245 Handles Ref.: AD-SF - Includes Sleep Mode - Total Net Weight 1440 g / 3.17 lb - Package Dimensions / Weight: 342 x 155 x 120 mm / 2002 g (L x W x H) 13.46 x 6.10 x 4.72 in / 4.41 lb Stand for T470 Heavy Duty Handles Ref.: HD-SF... - Page 12 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
