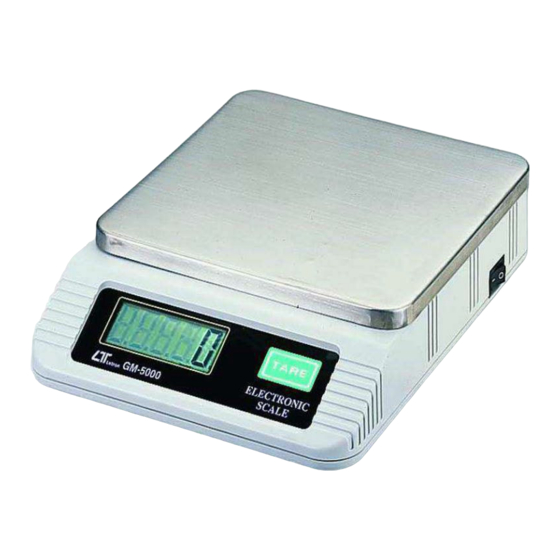

5000 g x 1 g, RS-232/USB
DIGITAL SCALE
Model : GM-5000
Your purchase of this DIGITAL SCALE marks a step forward for
you into the field of precision measurement. Although this
DIGITAL SCALE is a complex and delicate instrument, its durable
structure developed. Please read the following instructions
carefully and always keep this manual within easy reach.
OPERATION MANUAL
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lutron Electronics GM-5000
Summary of Contents for Lutron Electronics GM-5000
- Page 1 5000 g x 1 g, RS-232/USB DIGITAL SCALE Model : GM-5000 Your purchase of this DIGITAL SCALE marks a step forward for you into the field of precision measurement. Although this DIGITAL SCALE is a complex and delicate instrument, its durable structure developed.
- Page 2 TABLE OF CONTENTS 1. FEATURES .....................1 2. SPECIFICATIONS ..................1 3. FRONT PANEL DESCRIPTION ..............2 3-1 Platform ....................2 3-2 Tare Button ....................2 3-3 Display .....................2 3-4 Power Switch ...................2 3-5 Rubber Pads ...................2 3-6 Battery Cover/Compartment ..............2 3-7 DC 9V receptacle ...................2 3-8 RS232 Output Socket ................2 3-9 Unit Switch ....................2 4.
- Page 3 1. FEATURES * 5000 g measuring capacity with 1 g resolution. * RS 232 PC serial interface. * Full capacity tare function capability. * Only one control button on front panel, easy operation. * Battery or DC adapter power supply. * Large LCD display.
- Page 4 Power Consumption Approx. DC 9 mA. Accessory Included Manual ..1 PC. Interface cable USB cable, USB-01. RS232 cable, UPCB-02. * optional Software Data acquisition software Model : SW-U801-WIN * optional Excel data acquisition software Model : SW-E802 3. FRONT PANEL DESCRIPTION Side view Bottom view Front view...
- Page 5 3-1 Platform 3-2 Tare Button 3-3 Display 3-4 Power Switch 3-5 Rubber Pads 3-6 Battery Cover/Compartment 3-7 DC 9V receptacle 3-8 RS232 Output Socket 3-9 Unit Switch 4. PLATFORM INSTALLATION Fig. 2...
- Page 6 5. MEASURING PROCEDURE 1) Place scale on a flat hard surface. Adjust the 'Rubber Pad"(3-5, Fig. 1) until the scale install under the horizontal position completely. 2) Set the "gm" or "oz" unit by slide the "Unit Switch" (3-9, Fig. 1). * Use the "-"...
- Page 7 6. BATTERY REPLACEMENT If battery is weak, LCD display will show "LO" indicator. This reminds user to replace new battery. 1) Open "Battery Cover"(3-6, Fig. 1) located at the bottom of the scale. 2) According to the device instruction, place batteries(1.5V AA size battery x 6 PCs) into the battery compartment &...
- Page 8 Scale (3.5 mm jack plug) (9W 'D" Connector) Center Pin ..........Pin 4 (3.5 jack plug) Ground/shield ..........Pin 2 2.2 K resistor Pin 5 The 16 digit data stream will be displayed in the following format : D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 Each digit indicate the following status : Start Word ( 02 ) D12, D11...
