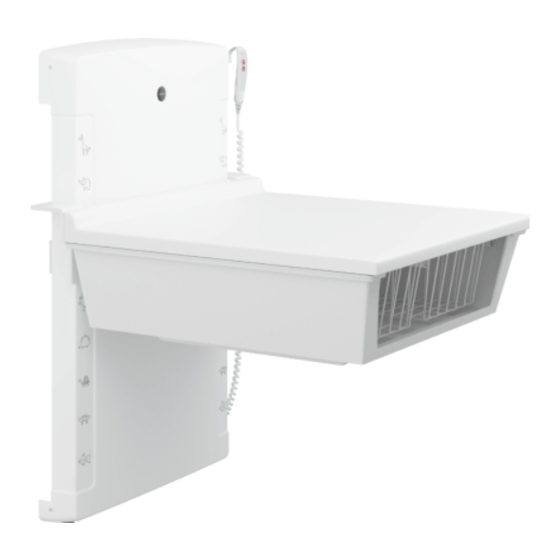

Wallaby Small (35.5"length)
SKU: R8961000/R8690000
EAN: 5708590367224
Giraffe Small (35.5" length)
SKU: R8971000/RB1922
EAN: 5708590367255
Previous version: R8671/RB1922
MAX-Ability, Inc.
info@max-ability.com
800 577-1555
User Guide
Wallaby Changing Station
Giraffe Changing Table
Wallaby Child (55" length)
SKU: R8962000/R8694000
EAN: 5708590367231
Giraffe Child (55" length)
SKU: R8972000/RB1922
EAN: 5708590367262
Previous version: R8672/RB1922
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Max-Ability PRESSALIT R8961000
Summary of Contents for Max-Ability PRESSALIT R8961000

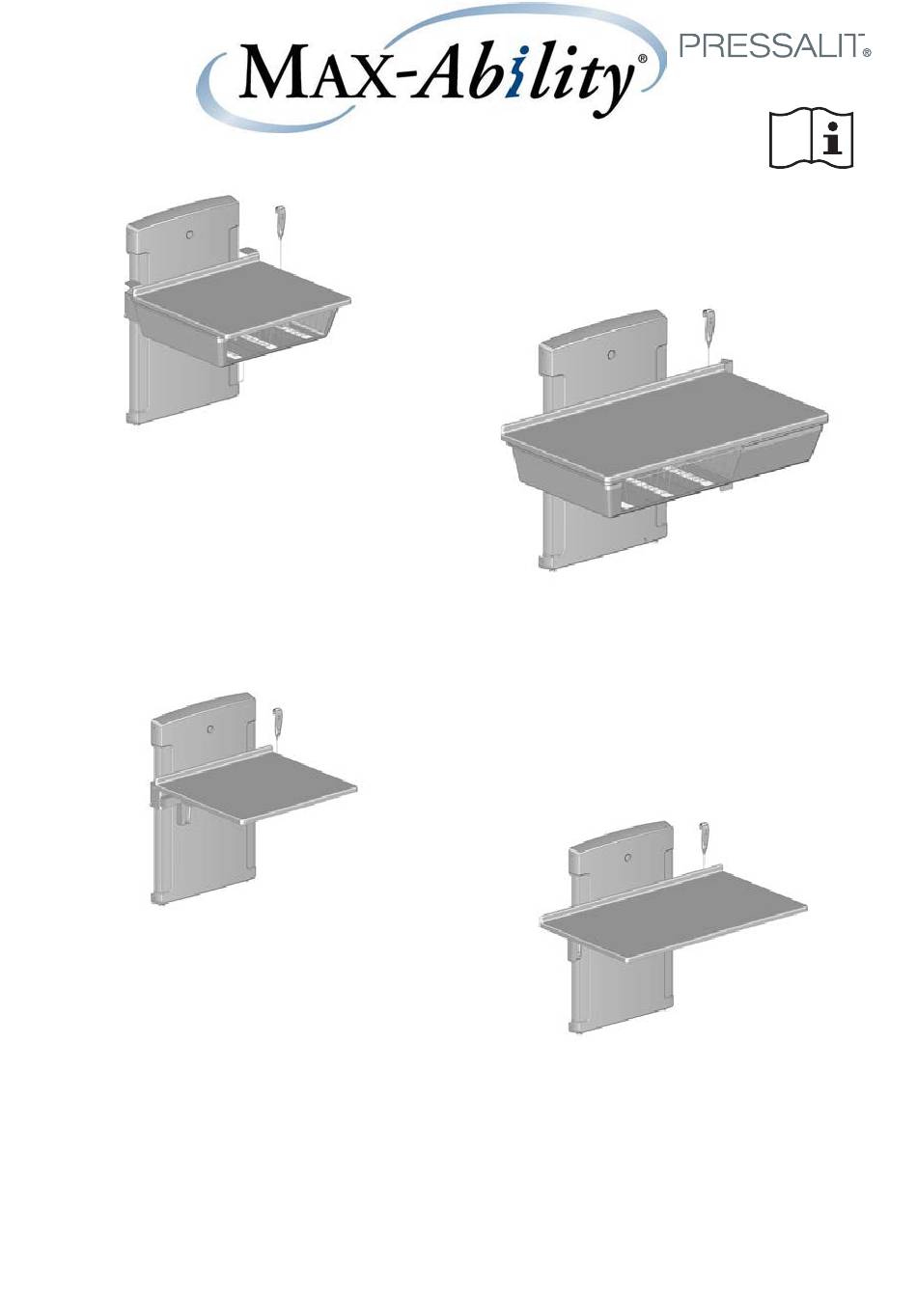

- Page 1 Wallaby Small (35.5"length) SKU: R8961000/R8690000 EAN: 5708590367224 Wallaby Child (55" length) SKU: R8962000/R8694000 EAN: 5708590367231 Giraffe Small (35.5" length) SKU: R8971000/RB1922 EAN: 5708590367255 Previous version: R8671/RB1922 Giraffe Child (55" length) SKU: R8972000/RB1922 EAN: 5708590367262 Previous version: R8672/RB1922 MAX-Ability, Inc. info@max-ability.com 800 577-1555...
-
Page 2: Mounting Instruction
An operational signage can be downloaded from pressalit.com. IMPORTANT RETAIN THIS MANUAL FOR FUTURE REFERENCE. READ CAREFULLY. اﻟﻌرﺑﯾﺔ ﯾﻐطﻲ اﻟﺿﻣﺎن اﻷﺧطﺎء أو اﻟﻌﯾوب ﻓﻲ اﻟﻣواد أو اﻟﺗﺻﻧﯾﻊ ﻟﻔﺗرة 5 أﻋوام. اﻟﻣﻧﺗﺟﺎت ﻋرﺿﺔ ﻟﺗﻌدﯾﻼت ﻓﻧﯾﺔ وﻓروق .طﻔﯾﻔﺔ ﻓﻲ اﻟﺗﺻﻣﯾم. ﺣﺎﻻت اﻟﺧطﺄ واﻟﺳﮭو ﻣﺳﺗﺛﻧﺎة Original instructions info@max-ability.com 800.577.1555... - Page 3 R8961, R8962, R8971, R8972 120V RZZZZYYYXXX-X RZZZZYYYXXX-X YYYY-MM-DD XXX kg XXX kg XXX lbs XXX lbs P:X W U:XXXV I:XXA XX-XX Hz IPXX Xxxxxx DS/EN XXXXX-X/X A1:YYYY Pressalit A/S Pressalitvej 1 DK-8680 Ry 45 8788 8777 pressalit.com Y YYYYYY XXXXXX...
- Page 4 R8690, R8694, R8698 RB1922 R8700, R8701, R0702, R8708 R8703, R8704, R0705 R8710 R8709 V8585...
- Page 5 R8661, R8961 50 kg / 110 lbs R8662, R8962 65 kg / 143 lbs 75 kg / 165 lbs R8671, R8971 55 kg / 121 lbs 60 kg / 132 lbs R8672, R8972 Max P Max I R8961, R8962, R8971, R8972 120V...
- Page 6 inch R8661,R8961 R8662, R8962 2 9 . 4 3 5 . 2 9 . 4 3 5 . 3 1 . 3 1 . 6 5 . 7 6 5 . 7 5 5 . 1 3 5 . 4 R8671, R8971 R8672, R8972 2 9 .
-
Page 7: Symbols Used In This Manual
Symbols used in this manual The following symbols are used in this manual as well as the associated documentation supplied with the product. WARNING indicates a potentially WARNING hazardous situation which, if not avoided, could result in death or serious injury. CAUTION indicates a potentially CAUTION hazardous situation which, if not... -
Page 8: General Safety
General safety WARNING • Read and understand the manual completely before use. Keep the manual close to the unit. • Comply with this manual to avoid accidents involving serious personal injury. • Never use or handle this product in other ways than are specified in this manual, as this can put your safety at risk and cause damage to the product. -
Page 9: Intended Use
Intended use This product is intended for optimum ergonomics when caring for children. The child's weight must not exceed 75 kg / 165 lbs. Intended operator profile The product shall only be operated by adults. Operating environment The product is intended to be used indoor at room temperature under normal working conditions. - Page 10 Operating instructions The changing table can be adjusted from 300 to 1000 mm / 12 to 39 inches up and down. Max load is 75 kg / 165 lbs. The height adjustment is controlled by the wired remote control unit. Press and hold the Up button to raise the unit.
- Page 11 Models with built-in sinks The models with safety tray not available in the US. All lowstart changing tables, except foldable models, are equipped with a safety tray. If the safety tray comes into contact with an object when the table is being lowered, the motor stops immediately and the table will rise 3-4 cm to reduce the risk of pinching/compression injuries...
- Page 12 Cleaning The product is to be cleaned with hot water or a mild soapy cleaning agent. A list of suitable cleaning agents tested by Pressalit can be found on pressalit.com. CAUTION Always read the material safety data sheet (MSDS) and supplied instructions of the cleaning, disinfecting or de-scaling agent and comply with instructions for safe use, dilution, rinsing, drying, handling and storage of the agent.
-
Page 13: Maintenance
Maintenance Expected service life of the changing table is 8 years, provided that maintenance is carried out as described below: It is recommended on a weekly basis to run the motors on the product to their maximum positions by raising the product to its full height, and then lowering it to its lowest position, so that the internal parts are lubricated. - Page 14 Lift off the top cover. Models with built-in sinks not available in the • Check the wall brackets and tighten if necessary. • Oil moving parts, especially the sliding brackets • Check all electrical connections to the control box • Check the chain wheel for wear.
-
Page 15: Product Label
Product label RZZZZYYYXXX-X ① ⑫ RZZZZYYYXXX-X YYYY-MM-DD ② ⑬ ③ ⑭ ④ ⑮ ⑤ ⑯ XXX kg XXX kg XXX lbs XXX lbs ⑥ ⑰ U:XXXV P:X W I:XXA XX-XX Hz ⑦ ⑱ IPXX Xxxxxx ⑧ ⑲ DS/EN XXXXX-X/X A1:YYYY ⑨... - Page 16 ① Article number ② Serial number ③ Production date ④ Consult manual for use Do not dispose as unsorted municipal waste. The product should ⑤ be collected separately and returned to the designated recycling service. ⑥ Product weight ⑦ Maximum power consumption ⑧...
-
Page 17: Troubleshooting
Trouble-shooting Symptom Cause Action The product will not Fault in power supply. Check that all wires and work, even though plugs are intact and the control is used correctly connected. correctly. Contact Pressalit A/S or your local dealer. The product runs up The sliding brackets Oil the sliding brackets and down unevenly. -
Page 18: Storage And Transportation
Storage and transportation • The temperature for transportation and storage of the unit must be between 5 and 40° Celsius (41 and 104° F). • The unit must always be transported in its original packaging. • Avoid subjecting the packaging to shocks and impacts. •...
