- Page 1 Shenzhen BIGTREE technology co., LTD. BIG TREE TECH BIGTREETECH TFT70 V3.0 User Guide...

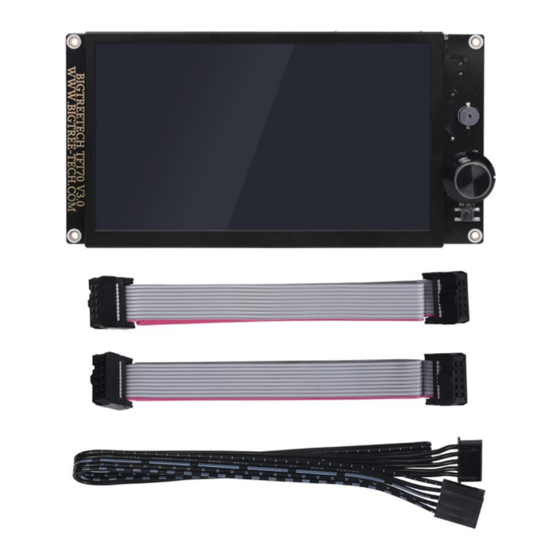

- Page 2 Shenzhen BIGTREE technology co., LTD. BIG TREE TECH Ⅰ. Introduction BIGTREETECH TFT70 V3.0 is a display screen with middle size, two operation mode and super clear launched by the 3D printing team of Shenzhen BIGTREE technology co., LTD., which can perfectly replace LCD12864.
- Page 3 Shenzhen BIGTREE technology co., LTD. BIG TREE TECH Ⅱ. Description of motherboard indicators Motherboard with power: D6 red light is power indicator: the red light is on, indicating power supply. D4 red light is SD card indicator: the light is on when plug SD card, go out after pulling out.
- Page 4 Please copy the firmware into the root directory of SD card. Then, plug it into the interface of screen. Next, power it and press the RESET b utton. Last, it will successfully copy in 10S 3. Please refer to BTT TFT70 V3.0-PIN.pdf for firmware of motherboard DIY.
- Page 5 PIN document. If you encounter other problems, please contact us. We will definitely answer your questions patiently. If you have any good suggestions on our products, please give us feedback. We will consider them seriously. Thank you for choosing BIGTREETECH products!
