Summary of Contents for BIGTREETECH TFT24-V1.1

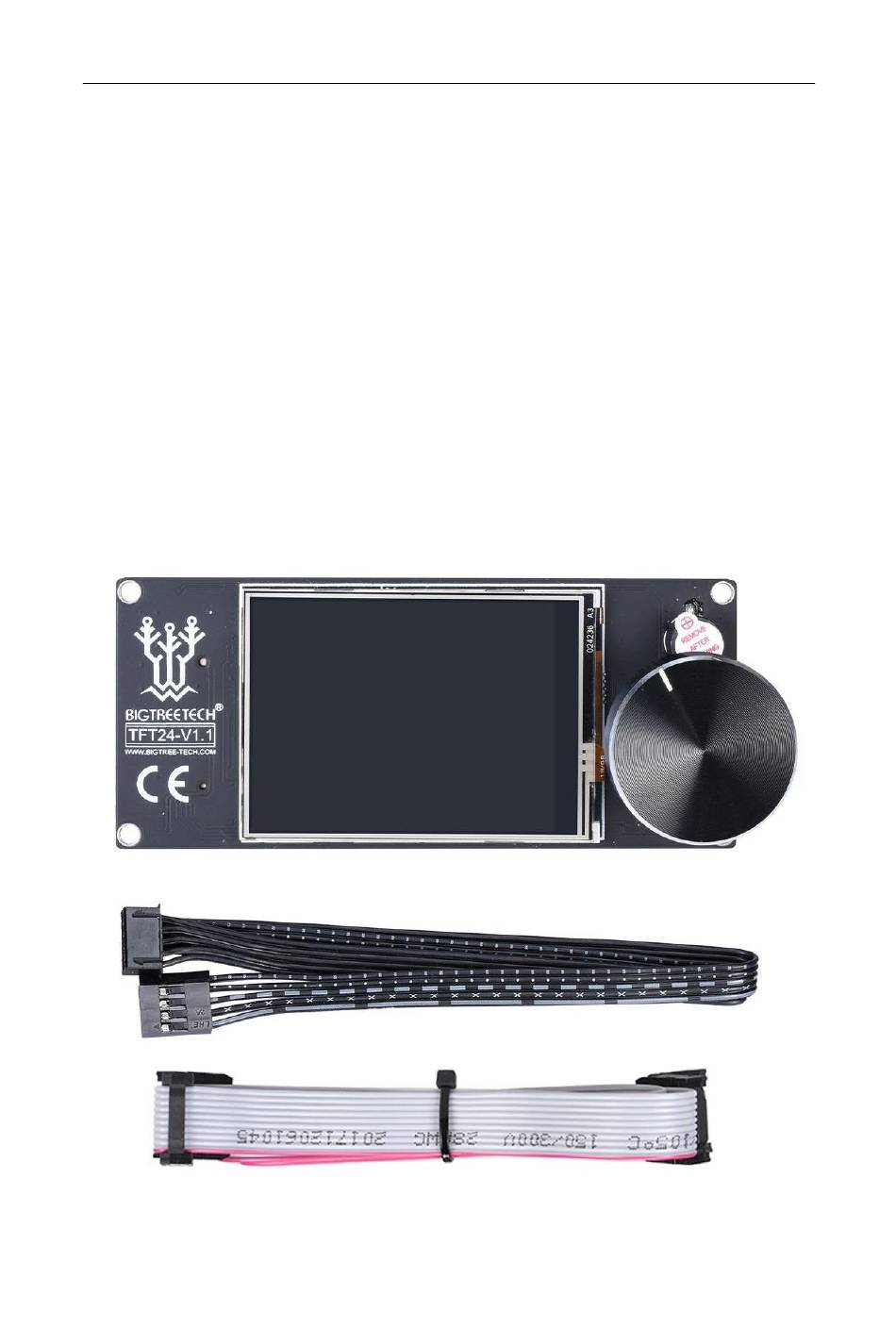

- Page 1 Shenzhen BIGTREE Technology co., LTD. BIG TREE TECH BIGTREETECH TFT24-V1.1 User Guide...
- Page 2 Shenzhen BIGTREE Technology co., LTD. BIG TREE TECH I. Product Introduction BIGTREETECH TFT24-V1.1 is a small volume ultra-clear 3D printer display board. It can work in two modes. The board is launched by the 3D printing team of Shenzhen BIGTREE Technology co., LTD.
- Page 3 Shenzhen BIGTREE Technology co., LTD. BIG TREE TECH III. Interfaces on the board Size diagram Connection diagram When using 12864 screen mode, connect the port EXP1 and EXP2 to the motherboard. There is no touch function in this mode. 2) When using serial port screen mode, connect with TFT or aux-2 on the motherboard via RS232.
- Page 4 SD card slot of the board. Next please re-power the board or press the reset key, and wait for about 10 seconds before the update is completed. For DIY board firmware, please refer to the file TFT24-V1.1-PIN. V. Notes：...
