Content General aspects Introduction Warning notes Copyright protection Disposal information Warranty Obligation of the operating company Liability disclaimer Declaration of conformity Address of the manufacturer Safety Intended use Requirements on persons Safety instructions Safety devices 2.4.1 Fundamental aspects 2.4.2 Safety devices on the flame scanner Safety instructions in case of maintenance and troubleshooting 2.5.1 Fundamental aspects...
Page 4
Content Operation of the flame scanner Test of the flame scanner Maintenance and servicing Failures Order data Accessories 10-1...
General aspects General aspects Introduction These operating instructions are a helpful guide for ensur- ing the successful and safe operation of the flame scan- ner. They contain important information on how to operate the system safely, correctly and efficiently. Observing the operating instructions will help to prevent hazards, reduce costs of repair and downtimes and increase the reliability and life of the device.
General aspects Warning notes The following warning notes are used in these operating instructions: This warning level indicates an imminent hazardous situa- tion. If the hazardous situation is not prevented, this will result in death or severe injury. Follow the instructions that accompany this warning to prevent the risk of death and severe personal injury.
These operating instructions have to be treated as confi- dential. They may only be used by authorised staff. Ac- cess by third parties may only be granted upon written agreement of BFI Automation. All documents are protected in keeping with the German copyright law.
non-performance of specified maintenance work It is recommended that the operator of the device con- cludes a service contract with BFI Automation. This guar- antees that the device is regularly checked by our service staff and ensures that any required wearing and spare...
General aspects Obligation of the operating company The flame scanner may cause hazards if it is operated in- appropriately or in an improper condition. The operating company is under the obligation to operate the machine in proper state only. The operating company has to secure hazardous areas that exist between BFI de- vices and the customer's own equipment.
BFI Automation for consequential damages. BFI Automation is liable for possible errors or omissions with the exclusion of additional claims entered into in the framework of the warranty obligations conceded to in the contract.
Safety Safety Intended use The flame scanner shall be used exclusively to detect flames in combination with a suitable flame amplifier. The flame scanner and flame amplifier together constitute a complete flame amplifiering system for burners with a ran- dom capacity and random fuels in single and multiple burner systems.
Safety Requirements on persons Work on/with the device may only be performed by per- sons authorized to do so based on their training and quali- fication. Furthermore, such persons have to have been commissioned by the operating company. Do not allow any persons who are being apprenticed, ed- ucated, instructed or on a general training programme to work on the device without the constant supervision of an experienced person.
Safety Safety instructions The following instructions on accident prevention have to be observed when operating the flame scanner. Only operate the device if it is in a proper state ! Do not remove or disable safety devices. Check for externally noticeable damage and defects prior to using the device ! Immediately notify the appro- priate authority/person of any changes that occur (in- cluding changes in operating performance).
Safety Safety devices 2.4.1 Fundamental aspects Check the safety equipment and locking devices on the device for safe operational condition. Only operate the device if all safety devices are present and enabled. The operating company or operator of the flame scanner is responsible for the proper operation of the device.
Operating and auxiliary materials as well as exchanged parts have to be disposed of in a safe and eco-friendly way. Spare parts supplied by BFI Automation or approved of by BFI Automation only may be used.
Safety 2.5.2 Electrical / electronic devices Danger to life caused by electrical current! Contact with live wires or components presents a danger to life ! Prior to any work on the electrical equipment, disconnect the flame amplifiering system from the power supply net- work ! In keeping with the electrical regulations, work on electri- cal / electronic parts / components may only be carried...
Safety 2.5.3 Testing in keeping with the German Work- place Safety Ordinance (BetrSichV) In case of the coupling or installation of devices from vari- ous manufacturers or suppliers, the operating company has to carry out a precise test, prior to start-up, in keeping with the German Workplace Safety Ordinance (BetrSichV) in force and the applicable electrical regulations.
Technical data Technical data General characteristic features Self-control to verify flawless function in keeping with EN 298:2012. Flame scanner 4.1 for selective coaldust flame detection at oil/coaldust combined firing Si sensor Fully electronic construction Spectral analyzing process ...
Technical data Connection of fibre optic cable via screw joint M30 x 2 Sighting tube connection of SKL 1“ internal thread ISO 228 Electric connection dustproof plug-type connector (Harting) Approvals: CE0085BS0478 1150499 Weight Standard housing approx. 1.5 Dimensions Standard housing Length Width (with plug) Height...
Technical data Block diagram of the flame scanner type 4.1 1 – 5 Pin no. at Harting plug a) Electronical shutter j) Puls shaper b) Si sensor k) Power amplifier c) aperture l) Signal output d) Automatic gain control m) Signal ground e) Preamplifier n) Supply voltage 24VDC (+) f) Band pass...
Report any damage After arrival of the device and accessories, notify the ship- ping agent, the insurance company and BFI Automation immediately in case of any damage caused by transport or inadequate packaging. Take steps to minimise and prevent further damage.
Transport, installation and connection Packaging The flame scanner is shipped in different packaging mate- rials. The most frequently used packaging materials are card- board and plastics (foils, foamed material). Packaging has to be disposed of in an environmentally friendly way and in accordance with the relevant provi- sions on disposal.
Transport, installation and connection Installation All installation and connection work may be carried out by qualified and approved specialist staff only ! The legal regulations as well as adjustment instructions of the plant operator have to be observed ! Automation technology for your f uture Type Ser.-No.:...
Page 28
Transport, installation and connection Danger of injuring the eyes by infrared and ultraviolet radi- ation and penetrating gases when checking the flame vis- ually ! Wear filtering protective glasses ! Vision images of the optical adjustment device correct wrong The images appear mirror inverted in horizontal and verti- cal direction ! The length and the diameter of the sighting tube have a direct influence on the usable flame radiation as the visual...
Page 29
The exit of hot gas after removal of the SKL-probe is prevented, ensuring further cooling and purging of the arrangement. The entire mechanical peripheral system can be supplied by BFI Automation. Aut omation tec h n olo g y f or yo u r fut ure Ty pe Ser.-No.:...
Transport, installation and connection 4.6.1 Adapting the flame scanner to the fuel Danger to life caused by combustion or explosion ! In case of incorrect installation or adjustment, uncon- trolled combustion or explosions may be caused ! Observe the adjustment instructions of the plant operator ! Adjustment work may be carried out only by qualified and approved specialist staff ! All alignments and settings have to be carried out, when...
Transport, installation and connection Connection 4.7.1 Electrical connection Danger to life caused by electrical current ! The safety instructions and local safety regulations have to be observed during connection ! For connection data, please refer to the chapter titled "Technical data" as well as to the following terminal dia- gram.
Transport, installation and connection Prior to the connection of the flame scanner, observe the separate operating instructions of the flame amplifier (System 3000) ! 4.7.2 Laying the special cable KW5 for standard housings No contact chamber may remain bare ! All contact chambers in the contact insert have to be fitted with crimp contacts ! For this purpose use a suitable crimp tool (BFI part No.
Transport, installation and connection 4.7.3 Handling of the KW5-Shieldings Outer shielding: The outer shielding is only connected to the device via the cable gland. On the loose cable end the shielding should be cut off short. Inner shielding: The inner shielding has to be connected to ground of the flame amplifier side.
Page 34
Transport, installation and connection 4-10...
Description Description Functional description The OE- Converter 4.1L utilizes the well approved inte- gral procedure of the flame radiation analysis. The radia- tion sensed by a photo element is immediately pro- cessed by a control circuit (AGC) optimizing the operat- ing point of the flame scanner in relation with the fuel ra- diation.
Description High pass filter The flame scanner is equipped with an adjustable high- pass-filter, which eliminates unwanted flame signals from lower frequency sources like neighbour flames or fireball radiations. The filter can be set as follows: DIP-switch position Frequency Medium High...
Operation of the flame scanner Operation of the flame scanner For the operation of the flame scanner, please observe the separate operating instructions of the flame amplifier. The flame scanner is made to use fiber optic cable, please observe the separate operating instruction of the fiber optic cable.
Maintenance and servicing Maintenance and servicing The flame scanner requires no maintenance. For cleaning, use a moist cloth to wipe the housing from the outside only. Do not scratch the lens !
Failures Failures Problem Display Cause Remedy No flame - ON No analogue Flame ampli- Check power supply signal after the signal fier is not op- Check fuse F101 (F 0.8 amps) burner has erational LED RF OFF Replace flame amplifier been started LED RM OFF Check electrical connection...
Order data Order data Flame scanner 4.1 is available from BFI Automation GmbH under the following order data: Flame scanner with standard housing for ATEX Zone 2 Order-No. 4.1 L 6010-4103-00...
Page 49

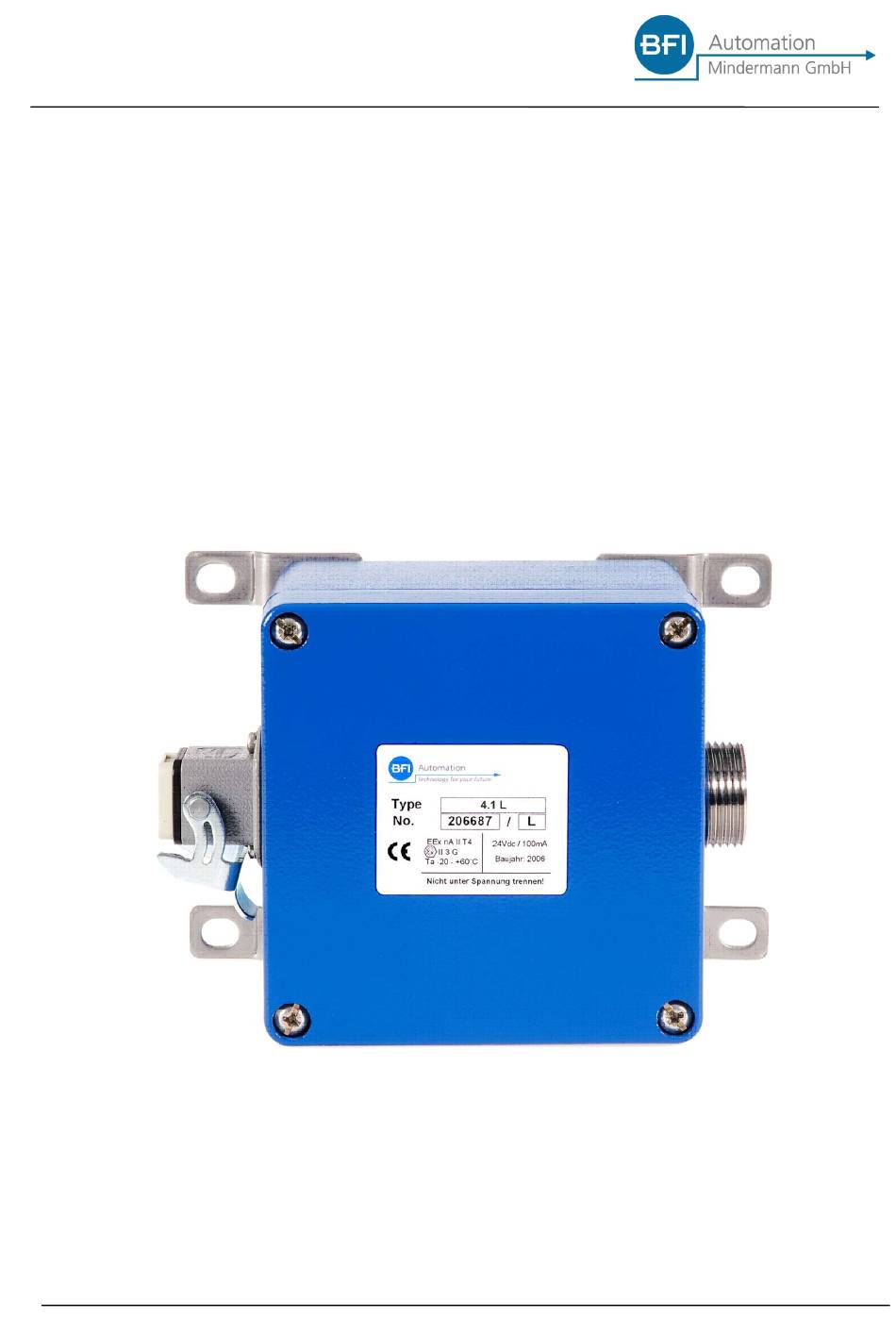

Original Operating Instructions Flame Scanner for fibre optic cable (OE-Converter) Type: 4.1L Document: BA 4.1L EN Rev6 BFI Automation Mindermann GmbH Ruegenstr. 7 42579 Heiligenhaus, Germany Telephone +49 2056 98946-0 Facsimile +49 2056 98946-42 http://www.bfi-automation.de...
Page 51
Content General aspects Introduction Warning notes Copyright protection Disposal information Warranty Obligation of the operating company Liability disclaimer Declaration of conformity Address of the manufacturer Safety Intended use Requirements on persons Safety instructions Safety devices 2.4.1 Fundamental aspects 2.4.2 Safety devices on the flame scanner Safety instructions in case of maintenance and troubleshooting 2.5.1 Fundamental aspects...
Page 52
Content Operation of the flame scanner Test of the flame scanner Maintenance and servicing Failures Order data Accessories 10-1...
General aspects General aspects Introduction These operating instructions are a helpful guide for ensur- ing the successful and safe operation of the flame scan- ner. They contain important information on how to operate the system safely, correctly and efficiently. Observing the operating instructions will help to prevent hazards, reduce costs of repair and downtimes and increase the reliability and life of the device.
General aspects Warning notes The following warning notes are used in these operating instructions: This warning level indicates an imminent hazardous situa- tion. If the hazardous situation is not prevented, this will result in death or severe injury. Follow the instructions that accompany this warning to prevent the risk of death and severe personal injury.
These operating instructions have to be treated as confi- dential. They may only be used by authorised staff. Ac- cess by third parties may only be granted upon written agreement of BFI Automation. All documents are protected in keeping with the German copyright law.
non-performance of specified maintenance work It is recommended that the operator of the device con- cludes a service contract with BFI Automation. This guar- antees that the device is regularly checked by our service staff and ensures that any required wearing and spare...
General aspects Obligation of the operating company The flame scanner may cause hazards if it is operated in- appropriately or in an improper condition. The operating company is under the obligation to operate the machine in proper state only. The operating company has to secure hazardous areas that exist between BFI de- vices and the customer's own equipment.
BFI Automation for consequential damages. BFI Automation is liable for possible errors or omissions with the exclusion of additional claims entered into in the framework of the warranty obligations conceded to in the contract.
Safety Safety Intended use The flame scanner shall be used exclusively to detect flames in combination with a suitable flame amplifier. The flame scanner and flame amplifier together constitute a complete flame amplifiering system for burners with a ran- dom capacity and random fuels in single and multiple burner systems.
Safety Requirements on persons Work on/with the device may only be performed by per- sons authorized to do so based on their training and quali- fication. Furthermore, such persons have to have been commissioned by the operating company. Do not allow any persons who are being apprenticed, ed- ucated, instructed or on a general training programme to work on the device without the constant supervision of an experienced person.
Safety Safety instructions The following instructions on accident prevention have to be observed when operating the flame scanner. Only operate the device if it is in a proper state ! Do not remove or disable safety devices. Check for externally noticeable damage and defects prior to using the device ! Immediately notify the appro- priate authority/person of any changes that occur (in- cluding changes in operating performance).
Safety Safety devices 2.4.1 Fundamental aspects Check the safety equipment and locking devices on the device for safe operational condition. Only operate the device if all safety devices are present and enabled. The operating company or operator of the flame scanner is responsible for the proper operation of the device.
Operating and auxiliary materials as well as exchanged parts have to be disposed of in a safe and eco-friendly way. Spare parts supplied by BFI Automation or approved of by BFI Automation only may be used.
Safety 2.5.2 Electrical / electronic devices Danger to life caused by electrical current! Contact with live wires or components presents a danger to life ! Prior to any work on the electrical equipment, disconnect the flame amplifiering system from the power supply net- work ! In keeping with the electrical regulations, work on electri- cal / electronic parts / components may only be carried...
Safety 2.5.3 Testing in keeping with the German Work- place Safety Ordinance (BetrSichV) In case of the coupling or installation of devices from vari- ous manufacturers or suppliers, the operating company has to carry out a precise test, prior to start-up, in keeping with the German Workplace Safety Ordinance (BetrSichV) in force and the applicable electrical regulations.
Technical data Technical data General characteristic features Self-control to verify flawless function in keeping with EN 298:2012. Flame scanner 4.1 for selective coaldust flame detection at oil/coaldust combined firing Si sensor Fully electronic construction Spectral analyzing process ...
Technical data Connection of fibre optic cable via screw joint M30 x 2 Sighting tube connection of SKL 1“ internal thread ISO 228 Electric connection dustproof plug-type connector (Harting) Approvals: CE0085BS0478 1150499 Weight Standard housing approx. 1.5 Dimensions Standard housing Length Width (with plug) Height...
Technical data Block diagram of the flame scanner type 4.1 1 – 5 Pin no. at Harting plug a) Electronical shutter j) Puls shaper b) Si sensor k) Power amplifier c) aperture l) Signal output d) Automatic gain control m) Signal ground e) Preamplifier n) Supply voltage 24VDC (+) f) Band pass...
Report any damage After arrival of the device and accessories, notify the ship- ping agent, the insurance company and BFI Automation immediately in case of any damage caused by transport or inadequate packaging. Take steps to minimise and prevent further damage.
Transport, installation and connection Packaging The flame scanner is shipped in different packaging mate- rials. The most frequently used packaging materials are card- board and plastics (foils, foamed material). Packaging has to be disposed of in an environmentally friendly way and in accordance with the relevant provi- sions on disposal.
Transport, installation and connection Installation All installation and connection work may be carried out by qualified and approved specialist staff only ! The legal regulations as well as adjustment instructions of the plant operator have to be observed ! Automation technology for your f uture Type Ser.-No.:...
Page 76
Transport, installation and connection Danger of injuring the eyes by infrared and ultraviolet radi- ation and penetrating gases when checking the flame vis- ually ! Wear filtering protective glasses ! Vision images of the optical adjustment device correct wrong The images appear mirror inverted in horizontal and verti- cal direction ! The length and the diameter of the sighting tube have a direct influence on the usable flame radiation as the visual...
Page 77
The exit of hot gas after removal of the SKL-probe is prevented, ensuring further cooling and purging of the arrangement. The entire mechanical peripheral system can be supplied by BFI Automation. Aut omation tec h n olo g y f or yo u r fut ure Ty pe Ser.-No.:...
Transport, installation and connection 4.6.1 Adapting the flame scanner to the fuel Danger to life caused by combustion or explosion ! In case of incorrect installation or adjustment, uncon- trolled combustion or explosions may be caused ! Observe the adjustment instructions of the plant operator ! Adjustment work may be carried out only by qualified and approved specialist staff ! All alignments and settings have to be carried out, when...
Transport, installation and connection Connection 4.7.1 Electrical connection Danger to life caused by electrical current ! The safety instructions and local safety regulations have to be observed during connection ! For connection data, please refer to the chapter titled "Technical data" as well as to the following terminal dia- gram.
Transport, installation and connection Prior to the connection of the flame scanner, observe the separate operating instructions of the flame amplifier (System 3000) ! 4.7.2 Laying the special cable KW5 for standard housings No contact chamber may remain bare ! All contact chambers in the contact insert have to be fitted with crimp contacts ! For this purpose use a suitable crimp tool (BFI part No.
Transport, installation and connection 4.7.3 Handling of the KW5-Shieldings Outer shielding: The outer shielding is only connected to the device via the cable gland. On the loose cable end the shielding should be cut off short. Inner shielding: The inner shielding has to be connected to ground of the flame amplifier side.
Page 82
Transport, installation and connection 4-10...
Description Description Functional description The OE- Converter 4.1L utilizes the well approved inte- gral procedure of the flame radiation analysis. The radia- tion sensed by a photo element is immediately pro- cessed by a control circuit (AGC) optimizing the operat- ing point of the flame scanner in relation with the fuel ra- diation.
Description High pass filter The flame scanner is equipped with an adjustable high- pass-filter, which eliminates unwanted flame signals from lower frequency sources like neighbour flames or fireball radiations. The filter can be set as follows: DIP-switch position Frequency Medium High...
Operation of the flame scanner Operation of the flame scanner For the operation of the flame scanner, please observe the separate operating instructions of the flame amplifier. The flame scanner is made to use fiber optic cable, please observe the separate operating instruction of the fiber optic cable.
Maintenance and servicing Maintenance and servicing The flame scanner requires no maintenance. For cleaning, use a moist cloth to wipe the housing from the outside only. Do not scratch the lens !
Failures Failures Problem Display Cause Remedy No flame - ON No analogue Flame ampli- Check power supply signal after the signal fier is not op- Check fuse F101 (F 0.8 amps) burner has erational LED RF OFF Replace flame amplifier been started LED RM OFF Check electrical connection...
Order data Order data Flame scanner 4.1 is available from BFI Automation GmbH under the following order data: Flame scanner with standard housing for ATEX Zone 2 Order-No. 4.1 L 6010-4103-00...
