10 U-CONTROL UCA222 User Manual
7. Audio Connections
Although there are various ways to integrate the UCA222 into
your studio or live set-up, the audio connections to be made
will basically be the same in all cases:

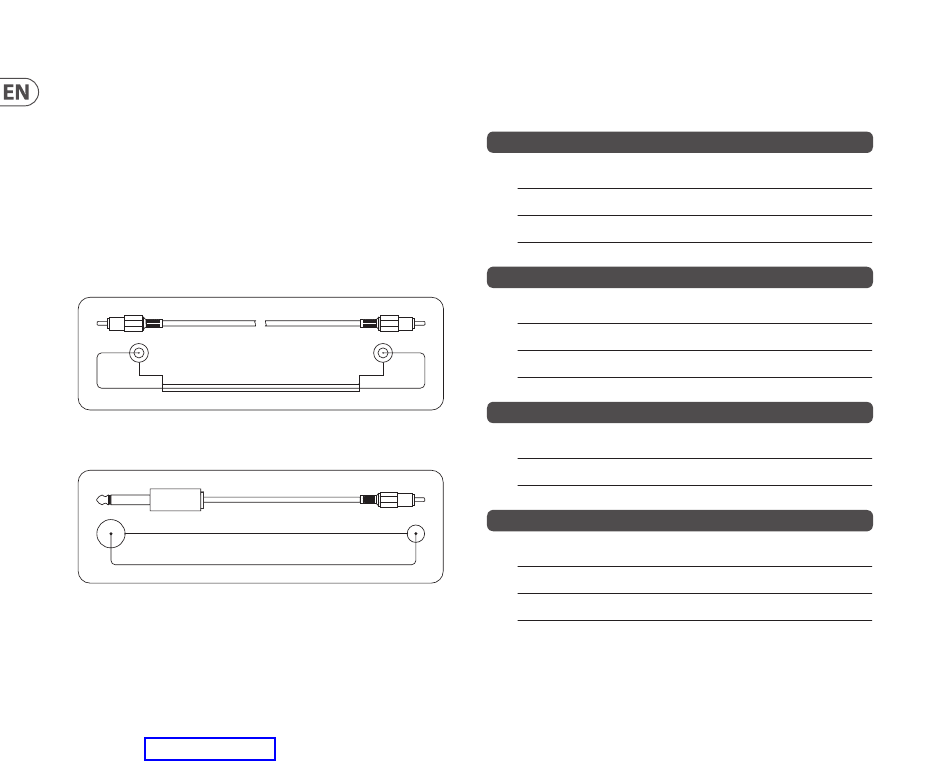

7.1 Wiring
Please use standard RCA cables to connect the UCA222
to other equipment:
tip
sleeve
You can also use a ¼" adapter cable:
sleeve
tip
Downloaded from
ManualsNet.com
tip
sleeve
shield
sleeve
tip
search engine
8. Specifications
Line In
Connectors
Input impedance
Max. input level
Line Out
Connectors
Output impedance
Max. output level
Digital Output
Socket
Output format
Phones Out
Socket
Output impedance
Max. output pegel
RCA, unbalanced
approx. 27 kΩ
2 dBV
RCA, unbalanced
approx. 400 Ω
2 dBV
Toslink, optical cable
S/PDIF
1/8" TRS stereo jack
approx. 50 Ω
-2 dBu, 2 x 3.7 mW @ 100 Ω
