- Page 1 B-Cool A/C Operator’s Manual...
- Page 2 DC Power solution’s warranty. DC Power Solutions accepts no liability to any person or entity for personal injury of any kind, property damage, or any other direct, indirect, special, or consequential damages whatsoever arising out of the use of the manuals or deriving from any information, recommendations or descriptions contained in the manuals.
- Page 3 The installation must be performed by a qualified professional. Switch off / disconnect the battery before installation and performing maintenance work. Wear goggles and gloves for the installation of this product or disassembly an item for repair. ATTENTION: The unit must be cooled before any work is performed.

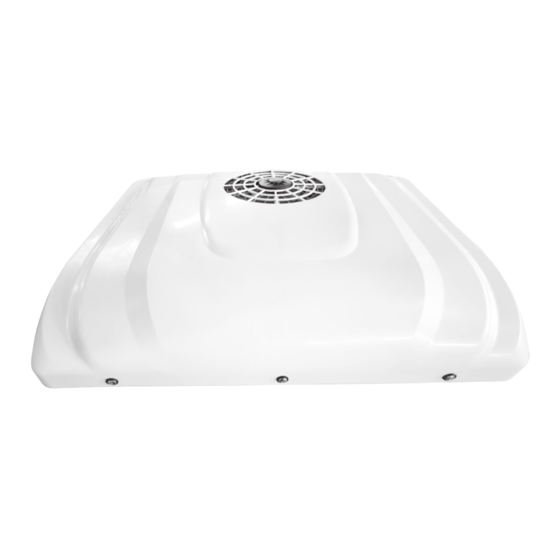

- Page 4 BCOOL9000RM – FULLY SELF-CONTAINED – ELECTRIC MODEL# B-COOL9000RM - 12V B-COOL9000RM – 24V VOLTAGE COMPRESSOR TYPE 25cc Electric scroll 25cc Electric scroll Compressor Compressor MAXIMUM CURRENT 70 amps 40 amps WORKING CURRENT 50 – 70 amps 15 – 40 amps FREON TYPE R134a R134a...
-
Page 5: Automatic Mode
OPERATING INSTRUCTIONS Determining the operating mode of your A/C: Press ON/OFF (power) Key for 3 Seconds to turn on the air conditioner. Look at the control panel. It will display either the letter “A” or the letter “P”. A – Stands for Automatic Mode P –... -
Page 6: Manual Mode
2) Manual Mode The temperature display on control panel is air outlet temperature. This temperature can be called “Compressor Protect Temperature” (to prevent compressor from over-heating and evaporator from freezing). The lowest you can set is 4℃ or 39 F. When the thermostat senses that the air outlet temperature has reached the set temperature, the compressor shuts off and the Snowflake Mark disappear. - Page 7 Setting up the Manual Mode from Automatic Mode Press “STANDARD” button on the Remote control to enter Manual Setting Mode. “P” Means the air conditioner is in Manual Setting Mode. Setting up the Automatic Mode from Manual Mode Press the button #10 (26°C) on your remote, and you should then see an “A” on the control panel.
- Page 8 OPERATING INSTRUCTIONS FOR THE REMOTE CONTROL The Key’s have the following functions： Turn on/off air conditioner Swing Flap: Only available on B-COOL12000FlexM-24V – swing air function. Increase (evaporator blower motor) air flow. Reduce (evaporator blower motor) air flow. Temperature + Temperature - Strong mode Standard mode **...
- Page 9 ERROR CODES - INSIDE CONTROL PANEL If, while the air conditioner is running, any of the following codes appear on the controller screen, please take the following steps as the code may indicate a serious problem 1) Stop the Air conditioner & Power Off 2) After 10 minutes power ON &...
- Page 10 ERROR (FLASHES) CODES – COMPRESSOR FLASH Result Solution Standby Compressor Case temprature is too Lack of refrigerant or dirty condenser high Open circuit of cooling fan Bad contact of electromagenetic fan plug Short circuit of cooling fan Short circuit in the motor or in the connection line Condenser fan controller failure Replace the controller...
-
Page 11: General Troubleshooting
GENERAL TROUBLESHOOTING ISSUE SOLUTION IF THE COOLING EFFECT IS NOT Select the right mode and set proper temperature and GOOD speed. Check if there is any obstruction at the air inlet and outlet Check if the surface of the condenser is too dirty Check if it is short of refrigerant and if the high and low voltage is within the normal range THERE IS WATER ON THE SURFACE... - Page 12 MAINTENANCE GUIDELINES Before beginning cleaning, make sure the air conditioner is turned off & powered off. 1) Surface Cleaning of inside unit: Wipe with a clean damp cloth. The cloth can be dipped in a mild cleaning solution if the unit is very dirty. 2) The core of evaporation chamber is too dirty.
