Summary of Contents for DC Power Solutions B-COOL12000WMB 12V

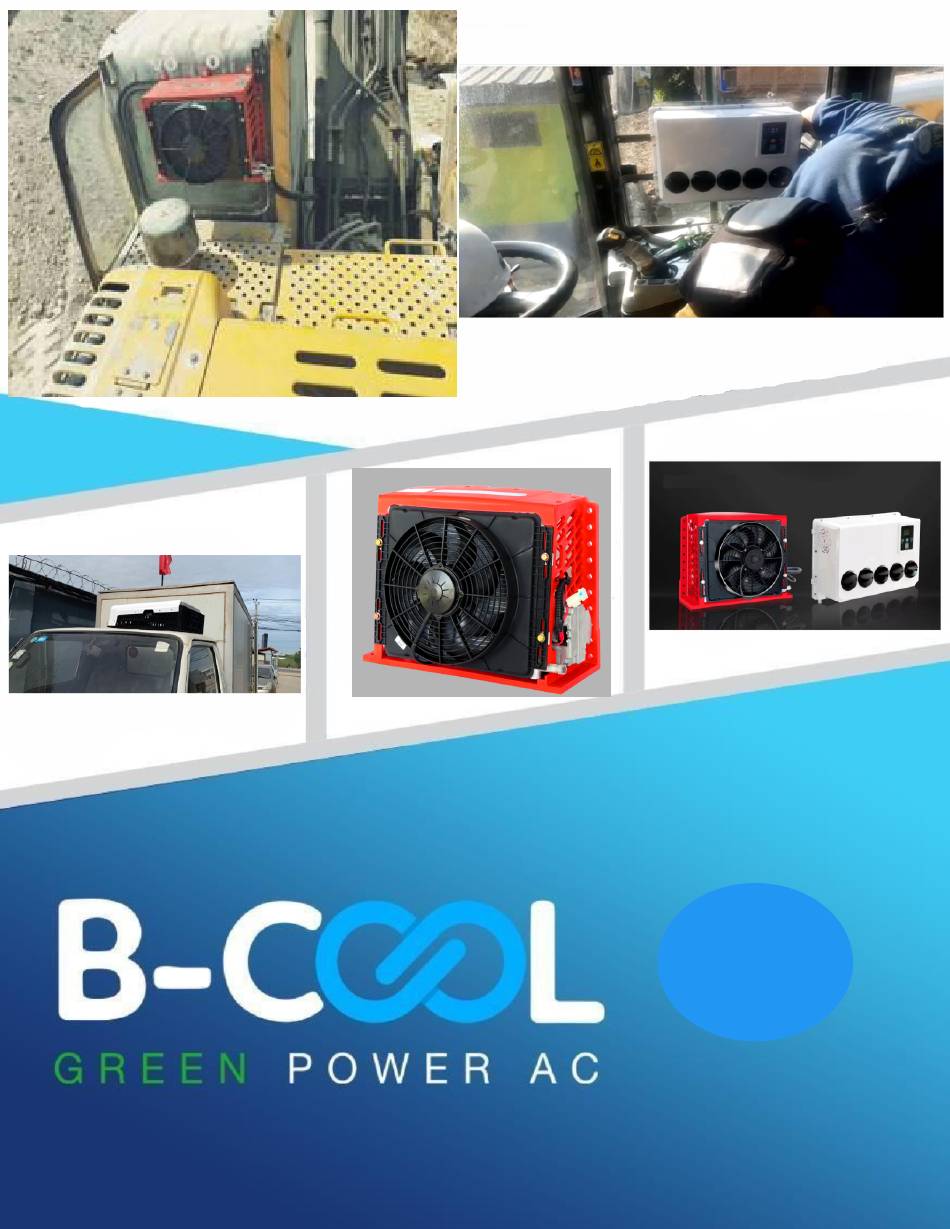

- Page 1 SPLIT UNIT REINFORCED DESIGN FOR INDUSTRIAL MACHINERY...
-
Page 2: Table Of Contents
INDEX: Introduction & Company Information ......3 Safety instructions… ............4 B-COOL SPU Specifications… .......... 5 Parts List & Numbers …………………………………….. 6 Parts List & Numbers Continued……………………….. 7 Installation………………………………………………….. 8 Technical & Install Specifications………………………. 9 Operating Instructions…………………………………… 10 Fault Analysis …………………………………………….. 11 Compressor / Trouble Shooting……………………….. -
Page 3: Introduction & Company Information
DC Power solution’s warranty. DC Power Solutions accepts no liability to any person or entity for personal injury of any kind, property damage, or any other direct, indirect, special, or consequential damages whatsoever arising out of the use of the manuals or deriving from any information, recommendations or descriptions contained in the manuals. -
Page 4: Safety Instructions
Recommendations / Safety Instructions The installation must be performed by a qualified professional. Switch off / disconnect the battery before installation and performing maintenance work. Wear goggles and gloves for the installation of this product or disassembly an item for repair. ATTENTION: The unit must be cooled before any work is performed. -
Page 5: B-Cool Spu Specifications
B-COOL12000WMB – SPLIT UNIT - 100% Electric MODEL # B-COOL12000WMB B-COOL12000WMB Voltage DC scroll frequency DC scroll frequency Compressor type compressor compressor 80amps 50 amps Max. current Working current 60-80 amps 15-50 amps Working Time 6-8 Hours 6-8 Hours (Parked Vehicle) Freon type R134a R134a... -
Page 6: Parts List & Numbers
PARTS LIST & NUMBERS SPU – BOX-TYPE SPU – 300-01 ---------- 1X PLASTIC ENCLOSURE SPU – 300-02 ---------- 1X SPU – BOX-TYPE UPPER COVER SPU – 100-05 (12V) ---------- 1X SPU - SPU – 100-06 (24V) ---------- 1X CONDENSER FAN SPU –... -
Page 7: Parts List & Numbers Continued
PARTS LIST & NUMBERS SPU – 5 SPU – 100-14 – 1X POINT HOSE SPU – POWER SPU – 100-15 – 1X HARNESS SPU – CONTROL SPU – 100-16 – 1X HARNESS SPU – COMPRESSOR SPU – 100-17 – 1X CONTROLLER SPU –... -
Page 8: Installation
Installation Pre-Install: Open both the boxes and first check all the components and parts are present. Read the Installation section to understand how the unit is mounted and installed before starting. Mounting surfaces must be clean and free of debris. Gather all equipment needed for the installation. -
Page 9: Technical & Install Specifications
Installation Instructions For B-COOL12000SPU MODEL # B-COOL12000WMB 12V & 24V Keep in mind the outside machine weighs 24 Kgs or 53lbs, Get someone to help you. Place the Air conditioner in the desired position. Select the installation position and mark spot where to punch the holes. -
Page 10: Operating Instructions
OPERATING INSTRUCTIONS Functions of the Control panel & the Remote Control Turn on A/C: Press On / Off button to turn on A/C (long press) Check High/Low Pressure Normal range: H/P 1.2 - 1.4 L/P 0.2 - 0.25 Temperature setting: A) Click the Temp. -
Page 11: Fault Analysis
ERROR Codes displayed on the controller If, while the air conditioner is running, any of the following codes appear on the controller screen, please take the following steps as the code may indicate a serious problem 1: STOP THE AIR CONDITIONER & POWER OFF. 2: AFTER 10 MINUTES POWER ON &... -
Page 12: Compressor / Trouble Shooting
Troubleshooting - Air conditioners If any of the following situations occur during the use of air conditioners, please find out a solution by following the index If it’s a fault, please contact the tech. / repair center. Condition Solution Select the right mode and set proper temperature and speed. Check if there is any obstruction at the air inlet and outlet If the cooling effect is not good... -
Page 13: Refrigerant Leakage
The B-COOL9000 unit comes pre-charged. However, should a leak or an Incident occur during shipping, the following steps must be taken. Leak Testing 1 - Refrigerant volume (check with level glass) 2 - If volume is low or is lower than the previous check, investigate possible leak by looking for traces of oil. -
Page 14: Maintenance
Maintenance Before beginning cleaning, make sure the air conditioner is turned off, powered off. 1) Surface Cleaning of inside unit: Wipe with a clean damp cloth. The cloth can be dipped in a mild cleaning solution if the unit is very dirty. 2) The core of evaporation chamber is too dirty.
