Table of Contents
Items Needed
1. Rocket with New Retrofitted Lid
2. Direct Connect Cable
3. USB Extension Cord
4. Polycarbonate Lid Insert
5. Verizon 4G LTE USB modem - UML295
Installing the Verizon Modem
• On the Verizon UML295 modem, open the USB
connector and rotate 180 degrees.
• Locate the port on the back of the modem, as shown
below. Line that port up with the hole in the
polycarbonate lid insert and then plug the Direct Connect
Cable into the port. Velcro the modem into place.
All manuals and user guides at all-guides.com
I N S T R U C T I O N G U I D E

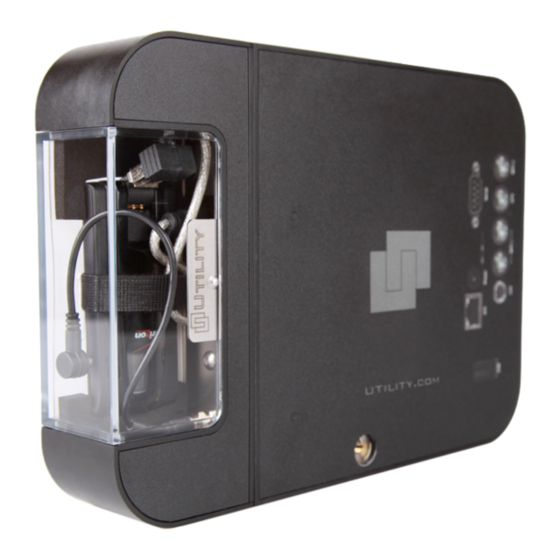

Inserting the Verizon
4G LTE USB Modem - UML295
in the Rocket Lid
1.
utility.com
2.
3.
• Plug the USB extension cord into the modem.
• Be sure the Direct Connect cord hooks onto the notch on the
polycarbonate lid insert and wraps around to the front.
notch
NOTE: Do NOT velcro the cords to the modem, doing so may
damage the cords and/or modem.
4.
5.
Advertisement
Table of Contents
Related Manuals for UTILITY ROCKET
Summary of Contents for UTILITY ROCKET
- Page 1 All manuals and user guides at all-guides.com I N S T R U C T I O N G U I D E Inserting the Verizon 4G LTE USB Modem - UML295 in the Rocket Lid Items Needed 1. Rocket with New Retrofitted Lid 2. Direct Connect Cable 3. USB Extension Cord...
- Page 2 All manuals and user guides at all-guides.com I N S T R U C T I O N G U I D E Installing the Verizon Modem • Close the Hinged Lid Support with both cables extending through the center. Continued • Open the Rocket Lid and slide out the Hinged Lid Support. • Lay the opened Rocket down with the serial number and ports on the label facing up, as shown below. • Plug the USB extension cord and direct connect cable into the Rocket and hand tighten. direct connect • Position the polycarbonate insert with attached modem into...
