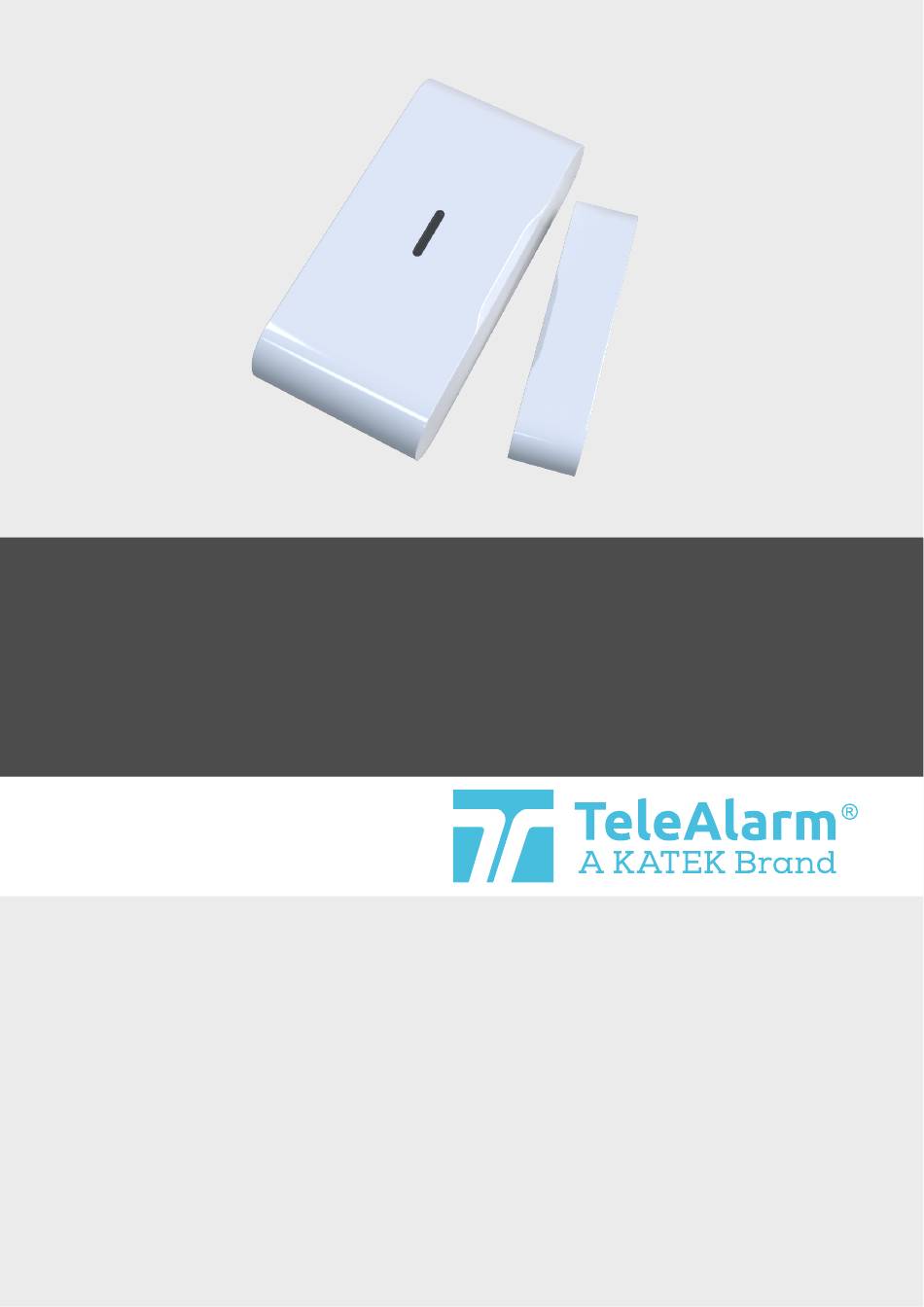

- Page 1 RAC80 Radio Alarm Contact with Magnet RAC80_DS_EN_V1.1_2021.12_Final Quick Guide...
- Page 2 2 en | RAC80 RAC80 Radio Alarm Contact with magnet Setup Information The RAC80 Radio Alarm Contact with magnet (called RAC80 hereafter) is used as wireless door- or window contact. To use the RAC80 as a transmitter for certain events, the alarm can be activated by approaching and/or moving away a magnet, or by the opening and/or closing of an electrical contact.
- Page 3 RAC80 | en 3 Opening the housing and exchanging the battery The RAC80 housing could be opened, for connecting optional wiring or replacing the battery. Warning ! Do not ingest battery, Chemical Burn Hazard. This product contains a coin / button cell battery. If the coin button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
- Page 4 4 en | RAC80 Operation Put the closed device with the opening notch (small side, right bottom in view 1) on a flat surface (a table for instance) 2. Maintain the bottom part of the housing on both side and, using a small tool or your finger, open the upper part in tiring it above the notch 3.
- Page 5 RAC80 | en 5 Optional wiring Wiring has to be done before placing the battery. Battery power The RAC80 could be powered by an replaceable 3V lithium battery type CR2430 (use a Renata brand battery). The battery is able to generate up to 5’000 radio transmissions in a period of up to 3 years.The battery level is monitored during each alarm transmission or daily code.
- Page 6 6 en | RAC80 Output The RAC80 features a terminal block to connect an external alarm device, as a buzzer or a LED. The output generates from 0 (OFF) to 3 pulses triggered by the "Door" and the "Door/Window Reed Relay" criteria., see the document "Programming Reference Manual".
- Page 7 RAC80 | en 7 Operation check It is strongly recommended to perform an operation check of the installation on a regular basis. Environmental note This product has been made from high-quality parts and materials which can be re-used and recycled. Therefore, do not throw the product away with normal household waste at the end of its life.
- Page 8 TeleAlarm SA Rue du Pont 23 2300 La Chaux-de-Fonds Switzerland www.telealarm.com TeleAlarm Europe GmbH Hertzstraße 2 04329 Leipzig Germany © Copyright TeleAlarm SA, 2021...
