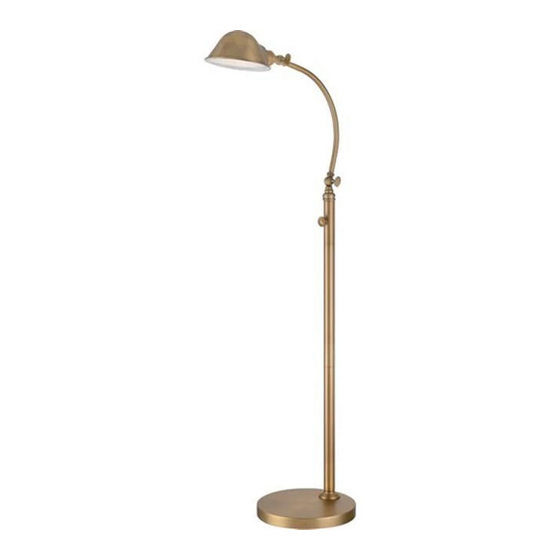

Quoizel VVTH9348BN Assembly Instruction Sheet

6 CORPORATE PARKWAY
, .
GOOSE CREEK SC 29445
. .
www quoizel com
Quoizel, Inc.
6 Corporate Parkway
Goose Creek, SC 29445
Customer Service
Phone 631.273.2700
Fax 631.231.7102
www.quoizel.com
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal. Do not subject
glass parts to any shock while in operation or shattering may result.
Package Contents
Plug
A
x 1
Wrench
B
x 1
-
STEP 1 Install Rods and Socket
Assembly
A. Thread the Socket Assembly (C) and the
Rods (D/E) to the Base (F) together as
shown. Hand tighten until snug. Note: If the
shade and the base are not lined up after
assembly, unscrew the hex nut on the
bottom of the base with the wrench (B),
adjust the rods until the shade and the base
are lined up. And then secure the rods to
the base. Hand tighten until snug with
the Wrench (B).
B. Adjust the Support Arm and the Shade
to proper location by adjust the
Ajustment Buttons.
C. Insert the Plug (A) into the cord from
the Base (F) as shown.
Your fixture is now assembled and
ready to use. Enjoy!
A
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2014 QuoizelInc.
Assembly Instruction Sheet #IS-VVTH9348
For Styles VVTH9348BN,VVTH9348AB,
Tools Required: Flathead screwdriver, Phillips screwdriver.
Bulb Recommended: LED 7W
Estimated Assembly Time: 15-20 minutes
Preparation: Identify and inspect all parts before beginning installation. Check package content list and diagrams
below to be sure all parts are present. If any parts are missing or damaged, do not attempt to assemble, install, or
operate the fixture. Contact customer service for replacement parts.
Socket
Assembly C
x 1
Threaded
Rod D
x 1
Rod
E
x 1
Base
F
x 1
Adjustment
Button
C
D
E
B
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
Replace LED Lamp
A. Unscrew the lock screws from the shade and remove the diffuser
from the shade.
B. Unscrew the screws on the LED Lamps and remove the LED lamp.
Pull out the connectors from the fixture and seperate the connectors
on the wires.
C. Connect the female connector of the replacement LED lamp to the
male connector from fixture. Attach the LED lamp into the shade
holder and secure with the removed lock screws.
D. Place the diffuser back onto the shade and secure with the removed
screws. Hand tighten until snug.
Figure 1
F
1of2
VVTH9348 IB
March2014
