c
(Stop)
Stop play.
In radio mode, press and hold to erase
the current preset radio stations.
d SOURCE
Select an audio or video source for the
home theater.
e
+/-
Increase or decrease volume.
f
(Open/Close)
Open or close the disc compartment.

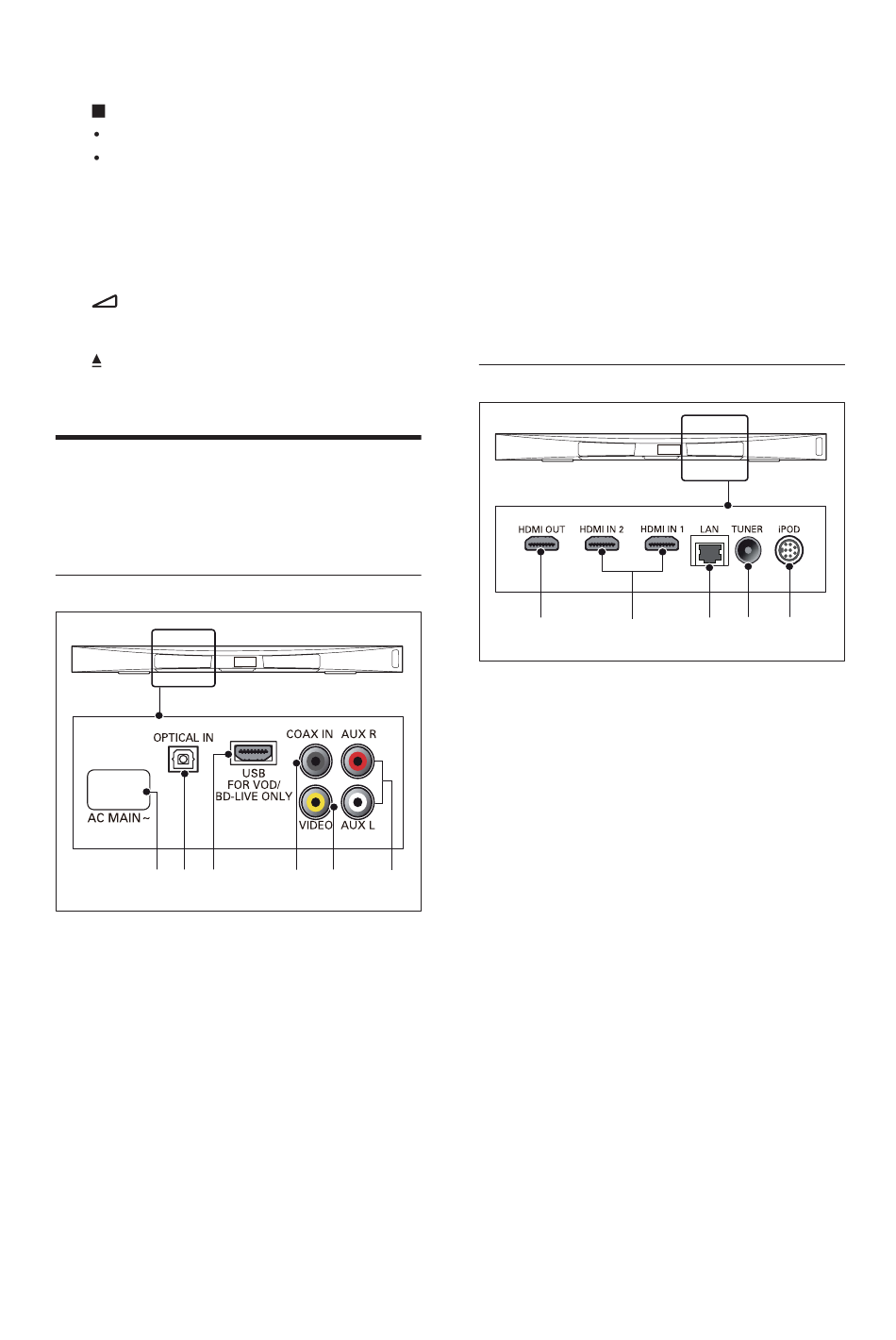

Connectors
This section includes an overview of the
connectors available on your home theater.
Rear left
a b
c
a AC MAINS~
Connect to the power supply.
b OPTICAL IN
Connect to an optical audio output on the
TV or a digital device.
c USB FOR VOD/BD-LIVE ONLY
Slot for a USB storage device. The USB
storage device is used to rent online videos
and access BD-Live.
d COAX IN
2-3
d
e
f
Connect to a coaxial audio output on the
TV or a digital device.
e VIDEO
Connect to the composite video input on
the TV.
f AUX
Connect to an analog audio output on the
TV or an analog device.
Rear right
a
b
a HDMI OUT (ARC)
Connect to the HDMI input on the TV.
b HDMI IN1 / HDMI IN2
Connect to the HDMI output on a digital
device.
c LAN
Connect to the LAN input on a
broadband modem or router.
d TUNER
Signal input from an antenna, cable or
satellite.
e DOCK for iPod
Connect to a Philips dock for iPod or
iPhone.(Model: Philips DCK306x, sold
separately)
