Quick Start Guide
UA-SNVR1620-P, UA-SNVRL810-P
Before attempting to connect or operate this product,
UVSSNVR-QG-A
please read these instructions carefully and save this manual for future use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UA-SNVR1620-P and is the answer not in the manual?

Questions and answers

Summary of Contents for USAVision UA-SNVR1620-P

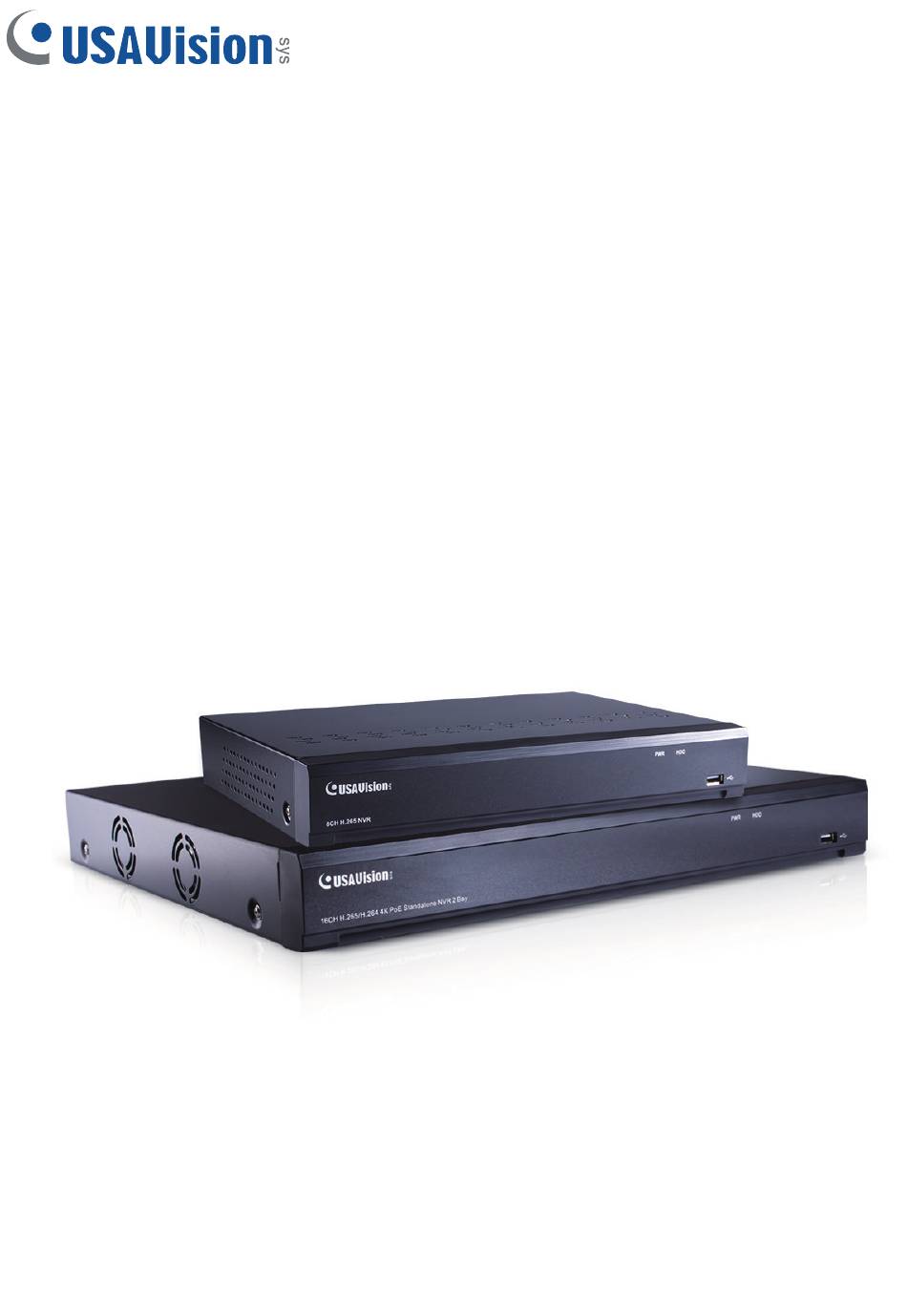

  • Page 1 Quick Start Guide UA-SNVR1620-P, UA-SNVRL810-P Before attempting to connect or operate this product, UVSSNVR-QG-A please read these instructions carefully and save this manual for future use.
  • Page 2 © 2022 GeoVision, Inc. All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of GeoVision. Every effort has been made to ensure that the information in this manual is accurate.
  • Page 3: Table Of Contents

    Contents 1. Introduction ......................1 1.1 Packing List ......................1 2. Installation ......................2 2.1 Connection Diagram ....................2 2.2 HDD Installation ...................... 3 2.3 Power Supply Connection ..................4 3. Getting Started ....................5 3.1 Start Wizard ......................5 3.1.1 Start Wizard ......................
  • Page 4: Introduction

    1. Introduction Welcome to the UA-SNVRL810-P, UA-SNVR1620-P Quick Start Guide. In the following sections, you will learn about the basic installations and configurations. For more details, see UA-SNVRL810-P, UA-SNVR1620-P User’s Manual. 1.1 Packing List UA-SNVRL810-P  UA-SNVRL810-P Power Adapter (DC 48V, 1.5A, 72W) 3.5”...
  • Page 5: Installation

    2. Installation 2.1 Connection Diagram You can connect to other IP cameras remotely over the Internet. Connect a CAT.5E or higher RJ45 Ethernet cable for local connectivity. You can connect to other IP cameras through your local network. Two-way voice conversation with the remote PC. Connect an external hard disk drive to back up files stored on the NVR.
  • Page 6: Hdd Installation

    2.2 HDD Installation Depending on the model you purchased, the NVR supports one or two 3.5” / 2.5” SATA hard disk drives. Do not install or remove the hard disk drive while the power is turned Caution: b) Carefully flip the NVR case and secure the hard a) Connect the data and power cables to the two hard disk drives and place the hard disk drives on the NVR disk drives to the NVR with the eight (8) screws...
  • Page 7: Power Supply Connection

    2.3 Power Supply Connection Only use the supplied power adapter that comes with the NVR. Caution: Connect one end of the power adapter to the power connector on the back of the NVR. Plug the other end of the power adapter into the wall outlet. And press the Power Switch to turn on the power.
  • Page 8: Getting Started

    3. Getting Started 3.1 Start Wizard 3.1.1 Start Wizard Click Start Wizard to proceed to the next step. 3.1.2 Connecting IP Cameras After finishing setting Network Configuration and Date and Time, this page appears.
  • Page 9 Click Search to search IP cameras in the same network. Choose the IP camera(s) you want to add, and then click icon to add to the NVR. Or, click button to manually add individual IP camera to a single channel. ◼...
  • Page 10: Live View Overview

    3.2 Live View Overview 3.2.1 Main Window Name Description Camera Title Display channel number. Status Icon This indicates that the NVR is currently recording. This icon appears when the camera has detected motion. The icon indicates that the external I/O alarm device is triggered.
  • Page 11 admin: To switch user. Start Menu Search: Search & Playback. Setup: System Setup. Lock Screen: Lock and unlock screen. Shutdown: Shutdown, reboot, and log out the system. Locate at the bottom of the live view screen. Refer to 4.2.2 Task Menu Bar Taskbar in the manual for details.
  • Page 12: Remote Access Via Web Client

    4. Remote Access via Web Client Use the Web Client to remotely access your NVR at any time via a PC. Before you access the Web Client, ensure that your PC’s system meets the basic requirements and that the network settings of the NVR are configured properly. 4.1 Basic System Requirements Item Minimum...
  • Page 13: Looking Up The Dynamic Ip Address

    4.2 Looking Up the Dynamic IP Address By default, when the NVR is connected LAN with DHCP server, it is automatically assigned with a dynamic IP address. Follow the steps below to look up its IP address. Download and install the UVS Device Utility here. On the UVS Device Utility window, click Search to search for the devices connected in the same LAN.
  • Page 14: Upgrading Firmware

    5. Upgrading Firmware You can upgrade the firmware on the device remotely through UVS Device Utility. Follow the instructions below. 1. Download and install the UVS Device Utility program here. 2. On the UVS Device Utility window, click Upgrade and check the box of the device you wish to upgrade the firmware on.
