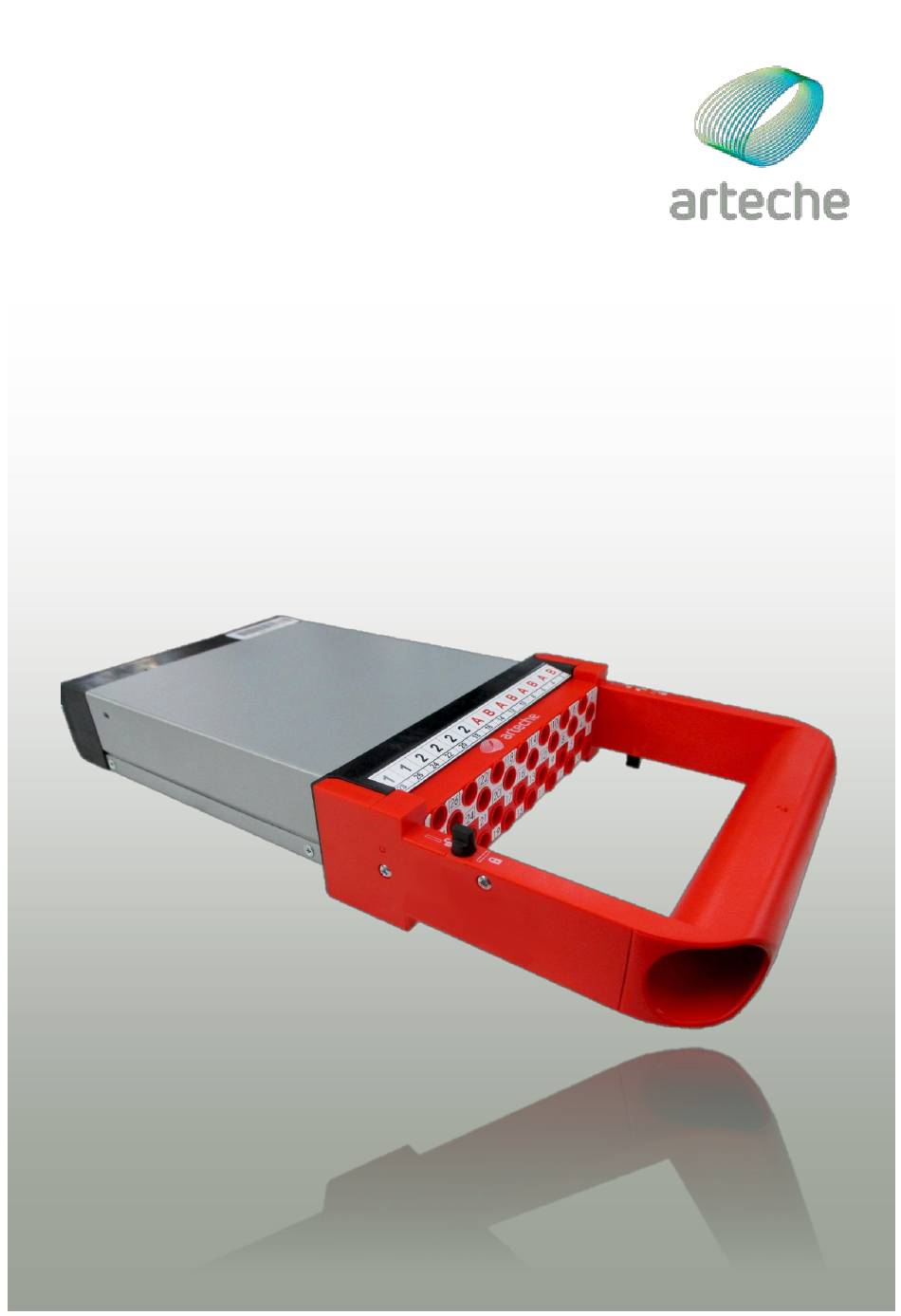

- Page 1 TSB-14-H/V saTECH TSB-14-P-H/V...
- Page 2 In case of questions or specific problems do take action without proper authorization. Please contact the technical sales of Arteche and request the necessary information. agreements commitments, legal relationships and obligations of Arteche Smart Grid SL including settlements of warranties,...
-
Page 3: Table Of Contents
Chapter 1. Overview ..................... 4 Chapter 2. Cautions ..................... 6 Chapter 3. Main features ....................7 Chapter 4. Applicatión ....................8 Chapter 5. Dimensions, installation and connections ..........16 Chapter 6. Maintenance ..................... 21 saTECH TSB-14-H/V | saTECH TSB-14-P-H/V | Rev.: 1.2... -
Page 4: Chapter 1. Overview
The box contains saTECH TSB-14: Set of cabinet fixing screw Set of rear block connection screw and earth connections. Requested Model saTECH TSB-14 TSB-14 front cover saTECH TSB-14-H/V | saTECH TSB-14-P-H/V | Rev.: 1.2... - Page 5 The ARTECHE guarantee ceases when, without express authorization of ARTECHE SMART GRID S.L, external personnel to ARTECHE SMART GRID S.L. makes any changes or reparation in the product. There are not included the failures by normal use out of the guarantee period, neither by inappropriate use, carelessness or negligence of the user.
-
Page 6: Chapter 2. Cautions
Check that the connections are correctly tightened and that the contact surfaces are clean. Check the correct polarity of the connections. Check the correct external wiring. The secondary of the current transformers must be wired to intensity terminals: A and B. saTECH TSB-14-H/V | saTECH TSB-14-P-H/V | Rev.: 1.2... -
Page 7: Chapter 3. Main Features

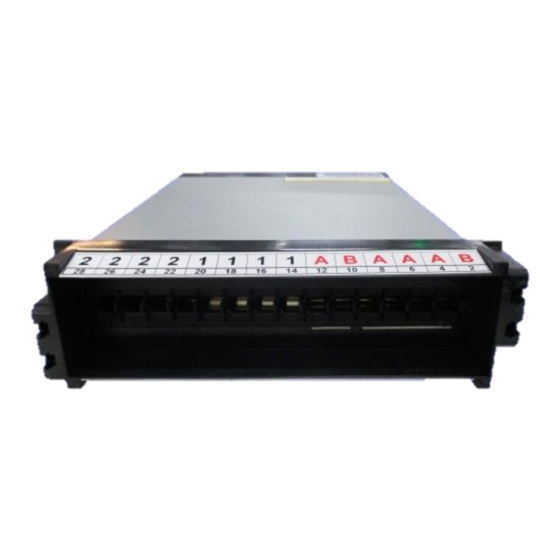

Chapter 3. Main features The ARTECHE saTECH test block allows testing the protection relay, safely and easily, completely insulating the protection relay from the field elements and eliminating any risk to the user. -
Page 8: Chapter 4. Applicatión
All of these circuits include a contact that is normally closed when the protection relay is in service. The circuits can be classified into: trigger, voltage or current. saTECH TSB-14-H/V | saTECH TSB-14-P-H/V | Rev.: 1.2... - Page 9 The user will define what kind of circuit (trigger, voltage or current) wants in each position at the moment of ordering the test block saTECH TSB-14-H/V. The user should specify also the type of short circuit required according to the selection table on page 10 models.
- Page 10 To verify this, two lines have been arranged in saTECH TSB-14-H/V | saTECH TSB-14-P-H/V | Rev.: 1.2...
- Page 11 The retention system works turning the black buttons of the test plug: to the right side to lock it, and to the left side to unlock it. saTECH TSB-14-H/V | saTECH TSB-14-P-H/V | Rev.: 1.2...
- Page 12 This operation will allow voltage and current values to stabilize after transients during the connection, and will avoid unwanted tripping during the trigger circuit connection. During the insertion and the extraction of the test plug don’t occur bounces that could harm the current transformers. saTECH TSB-14-H/V | saTECH TSB-14-P-H/V | Rev.: 1.2...
- Page 13 TECHNICAL SPECIFICATIONS saTECH TSB-14-H/V | saTECH TSB-14-P-H/V | Rev.: 1.2...
- Page 14 TSB with front cover IP50 Enclosure protection TSB without front cover IP20 TSB-P connected IP20 60255-21-1 IEC Class II mechanical characteristics Vibration 60255-21-2 IEC Class II saTECH TSB-14 Back view saTECH TSB-14-H/V | saTECH TSB-14-P-H/V | Rev.: 1.2...
- Page 15 TECHNICAL SPECIFICATIONS MODEL SELECTION 1-. Horizontal position (Reading from right to left) 2-. Vertical position (Reading from top to bottom) * The shorting circuits must be placed in a row, e.g.: saTECH TSB-14-H/V | saTECH TSB-14-P-H/V | Rev.: 1.2...
-
Page 16: Chapter 5. Dimensions, Installation And Connections
TSB-14-111111ABAAAB Net weight: 1800 gr Gross weight: 2500 gr Package: 320 x 250 x 440 TSB-P Net weight: 600 gr Gross weight: 1350 gr Package: 320 x 250 x 440 CUT OUT saTECH TSB-14-H/V | saTECH TSB-14-P-H/V | Rev.: 1.2... - Page 17 The connection of the Test Plug is conditioned by the installation of the Test Block, because it has a poka-yoke for the correct insertion. The connection of the Test Plug would be made in the following way: Horizontal option Vertical option saTECH TSB-14-H/V | saTECH TSB-14-P-H/V | Rev.: 1.2...
- Page 18 TSB. Has two earth connections, one of them has to be done. In order to guarantee the IP protection, both grounding screws should be fixed. The wiring and earth connection screw set are included with the test block. Earth connection saTECH TSB-14-H/V | saTECH TSB-14-P-H/V | Rev.: 1.2...
- Page 19 TECHNICAL SPECIFICATIONS CONNECTIONS The maximum and minimum dimensions of annular connectors recommend to be used in the back of the test block are: saTECH TSB-14-H/V | saTECH TSB-14-P-H/V | Rev.: 1.2...
- Page 20 TECHNICAL SPECIFICATIONS APPLICATION EXAMPLE saTECH TSB-14-H/V | saTECH TSB-14-P-H/V | Rev.: 1.2...
-
Page 21: Chapter 6. Maintenance
On the other hand, the number of operations supported by the test plug can limit the functionality of the test blocks, the test plug operation (insertions – extractions), life has been determined in 4000 operations. saTECH TSB-14-H/V | saTECH TSB-14-P-H/V | Rev.: 1.2... - Page 22 © Arteche...
