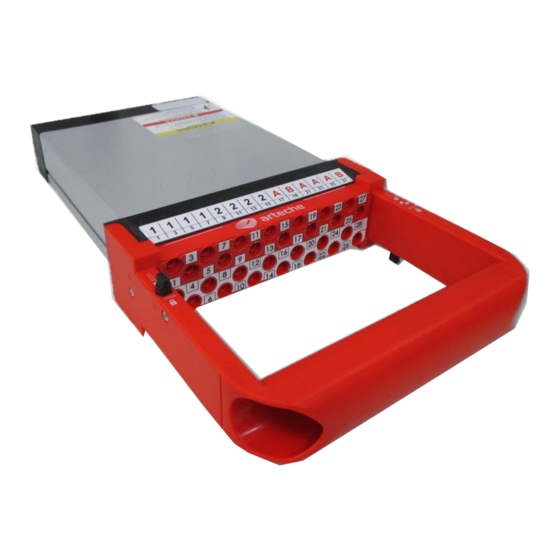

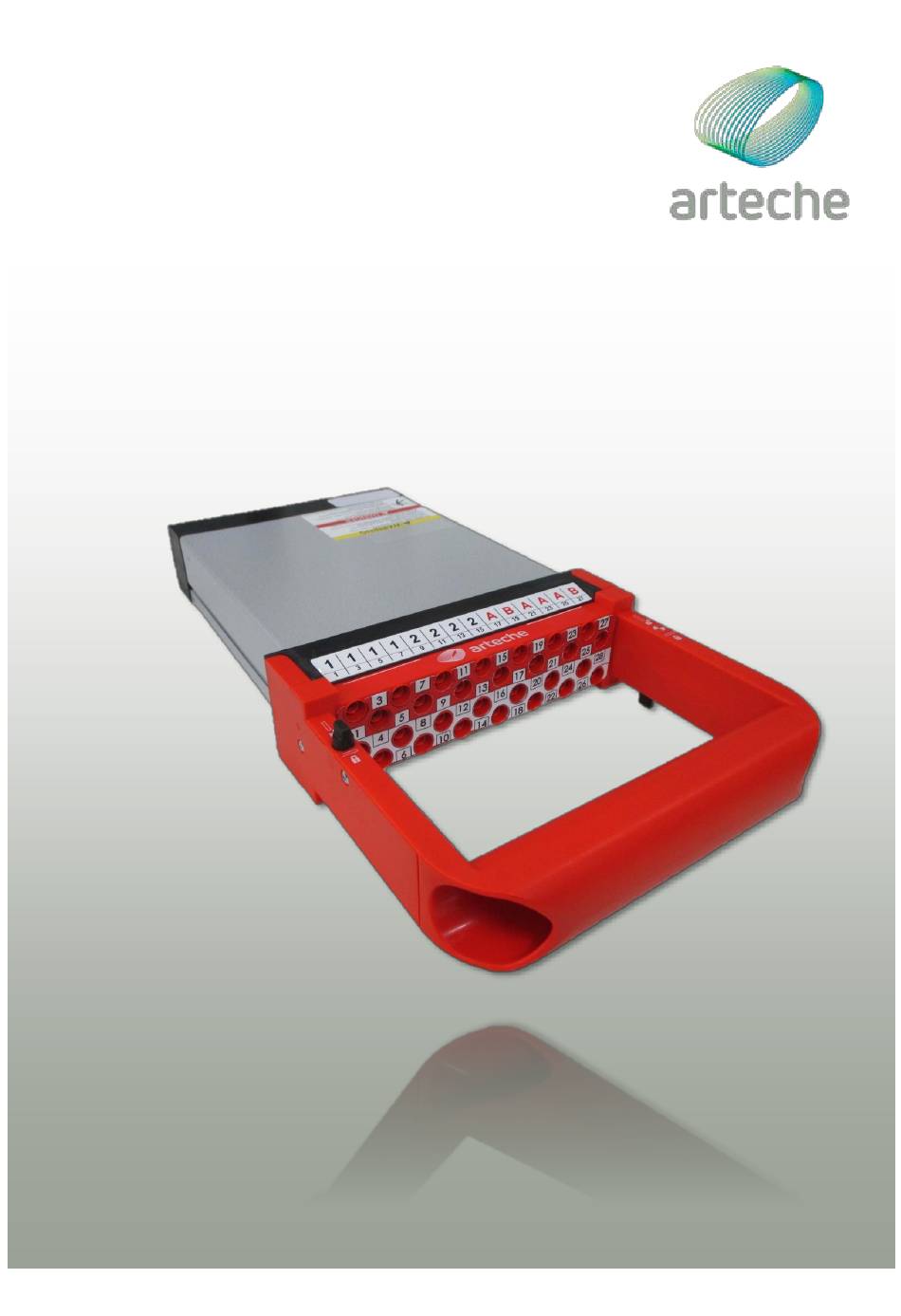

- Page 1 Test Block saTECH TSB-14 User Manual...
- Page 2 In case of questions or specific problems do take action without proper authorization. Please contact the technical sales of Arteche and request the necessary information. agreements commitments, legal relationships and obligations of Arteche Smart Grid SL including settlements of warranties,...
-
Page 3: Table Of Contents
Chapter 4. Principle of Operation ................8 Chapter 5. Technical Data ..................15 Chapter 6. Model Selection ..................16 Chapter 7. Dimensions, installation and connections ..........17 Chapter 8. Maintenance ..................... 22 Test Block saTECH TSB-14 | User Manual | Rev.: 2.0... -
Page 4: Chapter 1. Supply Features
TSB test blocks facilitate secondary testing load of any power system, allowing rapid monitoring, insulation and testing of the field elements. Today the Satech TSB range includes blocks of 14 test circuit: Satech TSB-14. The Satech TSB-14 and TSB-14RC (Henceforth, TSB14 shall include both lines unless otherwise specified).product line is formed by TSB-14 test blocks and associated TSB-14-P test... -
Page 5: Chapter 2. Main Features
TSB-14RC-P-H (TEST PLUG) Chapter 2. Main features The ARTECHE saTECH test block allows the isolation of circuits and corresponding IEDs in a safe and easy way, separating fully the IEDs equipment and / or circuits of the system from the field elements, thereby eliminating any risk to the user. - Page 6 Type 2 contacts are referenced to circuits that open in the second phase (voltage). Type A contacts correspond to the current circuits with automatic short-circuited. Type B contacts are referenced to current circuits with automatic short-circuited, indicating the end of the shot-circuit group. Test Block saTECH TSB-14 | User Manual | Rev.: 2.0...
-
Page 7: Chapter 3. Safety Basic Measures And Recommendations
A and B. Do not disassemble the test block or test plug. Correct installation of internal parts is critical to warrant the insulation and avoid internal arcs. Test Block saTECH TSB-14 | User Manual | Rev.: 2.0... -
Page 8: Chapter 4. Principle Of Operation
The ARTECHE guarantee ceases when, without express authorization of ARTECHE SMART GRID S.L, external personnel to ARTECHE SMART GRID S.L. makes any changes or reparation in the product. There are not included the failures by normal use out of the guarantee period, neither by inappropriate use, carelessness or negligence of the user. - Page 9 During the insertion of the test plug the circuits are ready to be able to test the protection relay, according to the next ordered sequence: 1. Opening of the trip circuits and signal. 2. Shorting current transformers circuits 3. Open voltage and current circuit. Test Block saTECH TSB-14 | User Manual | Rev.: 2.0...
- Page 10 / trip circuits. Closing sequence (Test Plug Extraction) The retention system force to do the extraction of the test plug, with the following sequence: Test Block saTECH TSB-14 | User Manual | Rev.: 2.0...
- Page 11 During test plug insertion and extraction there are not bounces that could damage current transformers. Test Block saTECH TSB-14 | User Manual | Rev.: 2.0...
- Page 12 All the banana plugs of the test plug are identified by a number that corresponds to the same number in the test block. In cases where a multiple plug banana connection in series is required, the Test Block saTECH TSB-14 | User Manual | Rev.: 2.0...
- Page 13 These can be removed if in the protection a new power supply is required. These plug covers must be removed or put by qualified personnel. Test Block saTECH TSB-14 | User Manual | Rev.: 2.0...
- Page 14 PRINCIPLE OF OPERATION Test Block saTECH TSB-14 | User Manual | Rev.: 2.0...
-
Page 15: Chapter 5. Technical Data
TSB with front cover IP50 Enclosure protection TSB without front cover IP20 TSB-P connected IP20 60255-21-1 IEC Class II mechanical characteristics Vibration 60255-21-2 IEC Class II saTECH TSB-14 Rear View Test Block saTECH TSB-14 | User Manual | Rev.: 2.0... -
Page 16: Chapter 6. Model Selection
Chapter 6. Model Selection 1-. Horizontal position (Reading from left to right) 2-. Vertical position (Reading from top to bottom) * Current circuits to be short-circuited must be placed Contiguously, i.e.: Test Block saTECH TSB-14 | User Manual | Rev.: 2.0... -
Page 17: Chapter 7. Dimensions, Installation And Connections
Net weight: 1500 gr Gross weight: 1850 gr Package: 263 x 230 x 82 TSB-P Net weight: 500 gr Gross weight: 720 gr Package: 263 x 230 x 82 CUT OUT Test Block saTECH TSB-14 | User Manual | Rev.: 2.0... - Page 18 The connection of the Test Plug is conditioned by the installation of the Test Block, because it has a poka-yoke for the correct insertion. The TSB-14 model looks like this: Horizontal option Vertical option Test Block saTECH TSB-14 | User Manual | Rev.: 2.0...
- Page 19 The wiring and earth (Din 933 cabeza hexagonal) connection screw set are included Earth connection with the test block. The tool to be used with grounding screws is a 7mm wrench. Test Block saTECH TSB-14 | User Manual | Rev.: 2.0...
- Page 20 DIMENSIONS, INSTALLATION AND CONNECTIONS CONNECTIONS The maximum and minimum dimensions of annular connectors recommend to be used in the back of the test block are: Test Block saTECH TSB-14 | User Manual | Rev.: 2.0...
- Page 21 DIMENSIONS, INSTALLATION AND CONNECTIONS APPLICATION EXAMPLE TSB-14(No RC) Test Block saTECH TSB-14 | User Manual | Rev.: 2.0...
-
Page 22: Chapter 8. Maintenance
On the other hand, the number of operations supported by the test plug can limit the functionality of the test blocks, the test plug operation (insertions – extractions), life has been determined in 4000 operations. (4000 insertions and 4000 extractions) Test Block saTECH TSB-14 | User Manual | Rev.: 2.0... - Page 23 MU_saTECH-TSB-14_ EN www.arteche.com © Arteche...
