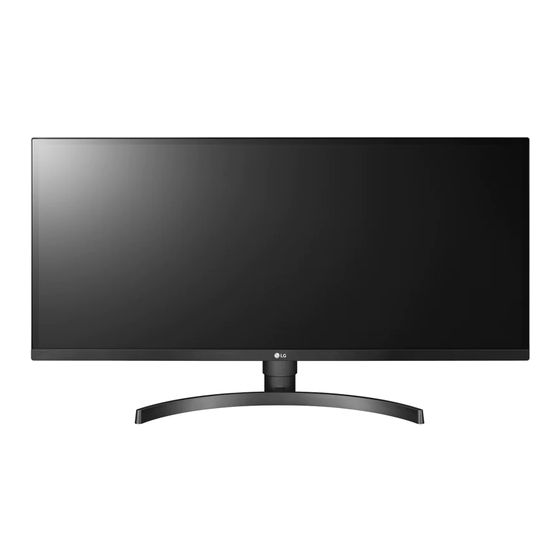

- Page 1 Owner's Manual IPS LED MONITOR (LED MONITOR*) *LG LED Monitors are LCD Monitors with LED Backlighting. Please read the safety information carefully before using the product. IPS LED Monitor (LED Monitor) Model List 34BL650 www.lg.com...
-
Page 2: Table Of Contents
Contents CONTENTS LICENSE USER SETTINGS Activating the Main Menu - Main Menu Features ASSEMBLING AND PREPARING User Settings Product Components - Menu Settings Supported Drivers and Software Component and Button Description TROUBLESHOOTING - How to Use the Joystick Button Input Connector Moving and Lifting the Monitor SPECIFICATIONS Installing the Monitor... -
Page 3: License
LICENSE LICENSE Each model has different licenses. Visit www.lg.com for more information on the license. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. MaxxAudio and additional MAXX trademarks are trademarks and/or registered trade- marks of Waves Audio Ltd. -
Page 4: Assembling And Preparing
The product warranty will not cover damage or injury caused by the use of counterfeit components. It is recommend that use the supplied components. If you use generic cables not certified by LG, the screen may not display or there may be image noises. NOTE Note that the components may look different from those shown here. -
Page 5: Supported Drivers And Software
ASSEMBLING AND PREPARING Supported Drivers and Software You can download and install the latest version from the LGE website (www.lg.com). Drivers and Software Installation Priority Monitor Driver Recommended OnScreen Control Recommended Dual Controller Optional... -
Page 6: Component And Button Description
ASSEMBLING AND PREPARING Component and Button Description Joystick Button Power LED On: power is on Off: power is off How to Use the Joystick Button You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with your finger. -
Page 7: Input Connector
ASSEMBLING AND PREPARING Input Connector... -
Page 8: Moving And Lifting The Monitor
ASSEMBLING AND PREPARING Moving and Lifting the Monitor CAUTION When moving or lifting the monitor, follow these in- As far as possible, avoid touching the monitor structions to prevent the monitor from being scratched screen. This may result in damage to the screen or or damaged and to ensure safe transportation regard- some of the pixels used to create images. -
Page 9: Installing The Monitor
ASSEMBLING AND PREPARING Installing the Monitor Assembling the stand base Stand Body CAUTION Stand Base To protect the screen from scratches, cover the surface with a soft cloth. Stand Body NOTE Press the stand until the button reaches the top. -
Page 10: Installing Onto A Table
ASSEMBLING AND PREPARING Installing onto a table CAUTION Lift the monitor and place it on the table in an up- Illustrations in this document represent typical right position. procedures, so they may look different from the Place at least 100 mm (3.94 inches) away from the actual product. -
Page 11: Adjusting The Angle
ASSEMBLING AND PREPARING Adjusting the angle Cautions When Connecting Power Cord Place the monitor in an upright position, mounted on the stand base. Adjust the angle of the screen. The angle of the screen can be adjusted forwards or backwards for a comfortable viewing experience. -
Page 12: Adjusting The Stand Height
ASSEMBLING AND PREPARING Adjusting the Stand Height WARNING Handle the monitor with both hands for safety. To avoid injury to the fingers when adjusting the screen, do not hold the lower part of the moni- tor's frame as illustrated below. The height can be adjusted up to 110 mm (4.33 inches). -
Page 13: Using The Kensington Lock
ASSEMBLING AND PREPARING Using the Kensington lock Installing the wall mount plate The Kensington security system connector is located at This monitor supports the specification of the standard the back of the Monitor set. wall mount plate or compatible device. For more information on installation and usage, refer to Place the screen face down. -
Page 14: Installing To A Wall
If you use improper screw, the product might be dam- Wall mount Pad aged and drop from mounted position. Back Cover In this case, LG Electronics is not responsible for it. Standard screw Wall Mount (A x B) 100 x 100... -
Page 15: Using The Monitor
NOTE There may be no video or audio output depending on the DP version of the PC. If you use generic cables not certified by LG, the screen may not display or there may be image noises. NOTE If you use HDMI PC, it can cause compatibility problem. -
Page 16: Connecting To Av Devices
USING THE MONITOR Connecting to External Devices Connecting to AV Devices Connecting Headphones HDMI connection Connect peripherals to the monitor via the headphones Transmits the digital video and audio signals from your port. Connect as illustrated. PC and A/V devices to the monitor. Connect your PC and AV device to the monitor with the HDMI cable as illustrated below. -
Page 17: User Settings
User Settings USER SETTINGS NOTE Your monitor’s OSD (On Screen Display) may differ slightly from that shown in this manual. When Beep Guide is activated, pressing the joystick button will take you to Settings right away. Activating the Main Menu Press the joystick button on the bottom of the monitor. -
Page 18: User Settings
User Settings User Settings Menu Settings To view the settings menu, press the joystick button at the bottom of the monitor and then enter the Settings. Configure the options by moving the joystick up/down/left/right. To return to the upper settings or set other settings items, move the joystick to ◄ or press ( ). If you want to exit the settings menu, move the joystick to ◄... - Page 19 User Settings Picture Mode on SDR(Non-HDR) signal. Settings > Picture Description Picture Mode Custom Allows the user to adjust each element. The color mode of the main menu can be adjusted. Vivid Heightens contrast, brightness and sharpness to display vivid images. Reader Optimizes the screen for viewing documents.
- Page 20 User Settings Game Adjust FreeSync Provides seamless and natural images by synchronizing the vertical frequency of the input signal with that of the output signal. CAUTION Supported Interface: DisplayPort,HDMI. Supported Graphic Card : A graphic card that supports AMD’s FreeSync is neces- sary.
- Page 21 User Settings Settings > General Description Language Sets the menu screen to the desired language. SMART ENERGY High Saves energy using the high-efficiency SMART ENERGY SAVING feature. SAVING Saves energy using the low-efficiency SMART ENERGY SAVING feature. Disables the SMART ENERGY SAVING feature. Power LED The power LED turns on.
-
Page 22: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING Nothing is displayed on the screen. Is the monitor's power cord plugged in? Check if the power cord is correctly plugged into the power outlet. Test the Power Plug using a lamp or other device. Is the power LED on? Check the power cable connection and press the power button. - Page 23 Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message? Have you installed the display driver? You can download and install the latest version from the LGE website (www.lg.com). Make sure to check if the video card supports Plug&Play function. No sound from the headphone port or speaker.
-
Page 24: Specifications
SPECIFICATIONS SPECIFICATIONS LCD Screen Type TFT (Thin Film Transistor) LCD (Liquid Crystal Display) Screen Pixel Pitch 0.312 mm x 0.310 mm Resolution Maximum Resolution 2560×1080 @ 75Hz Recommended Resolution 2560×1080 @ 60Hz Video Signal Horizontal Frequency 30 kHz to 90 kHz Vertical Frequency 56 Hz to 75 Hz Input Connector... -
Page 25: Factory Support Mode (Preset Mode, Pc)
SPECIFICATIONS Factory Support Mode (Preset Mode, PC) HDMI / DP Timing (PC) Resolution Horizontal Frequency Vertical Frequency Polarity Remarks (HDMI / DP) (kHz) (Hz) (H/V) 640 x 480 31.469 59.94 640 x 480 37.5 800 x 600 37.879 60.317 800 x 600 46.875 1024 x 768 48.363... -
Page 26: Beep Guide
SPECIFICATIONS Beep Guide Menu Location Menu Location Quick Settings Picture - Picture Adjust - SUPER 3 2 4 2 RESOLUTION+ - Middle Quick Settings - Brightness Picture - Picture Adjust - SUPER Quick Settings - Brightness 1 1 1 Slider 3 2 4 3 RESOLUTION+ - Low Quick Settings - Contrast... - Page 27 SPECIFICATIONS Menu Location Menu Location Picture - Color Adjust - Color Temp - Picture - Color Adjust - Six Color - Yellow 3 4 6 11 1 3 4 2 3 Medium Slider Picture - Color Adjust - Color Temp - Cool 3 4 2 4 Picture - Color Adjust - Six Color - Yellow 3 4 6 12...
- Page 28 SPECIFICATIONS Menu Location General - Automatic Standby - 6H 5 4 2 General - Automatic Standby - 4H 5 4 3 General - Automatic Standby - Off 5 4 4 General - DisplayPort 1.2 General - DisplayPort 1.2 - Enable 5 5 1 General - DisplayPort 1.2 - Disable 5 5 2...
- Page 29 In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com.
