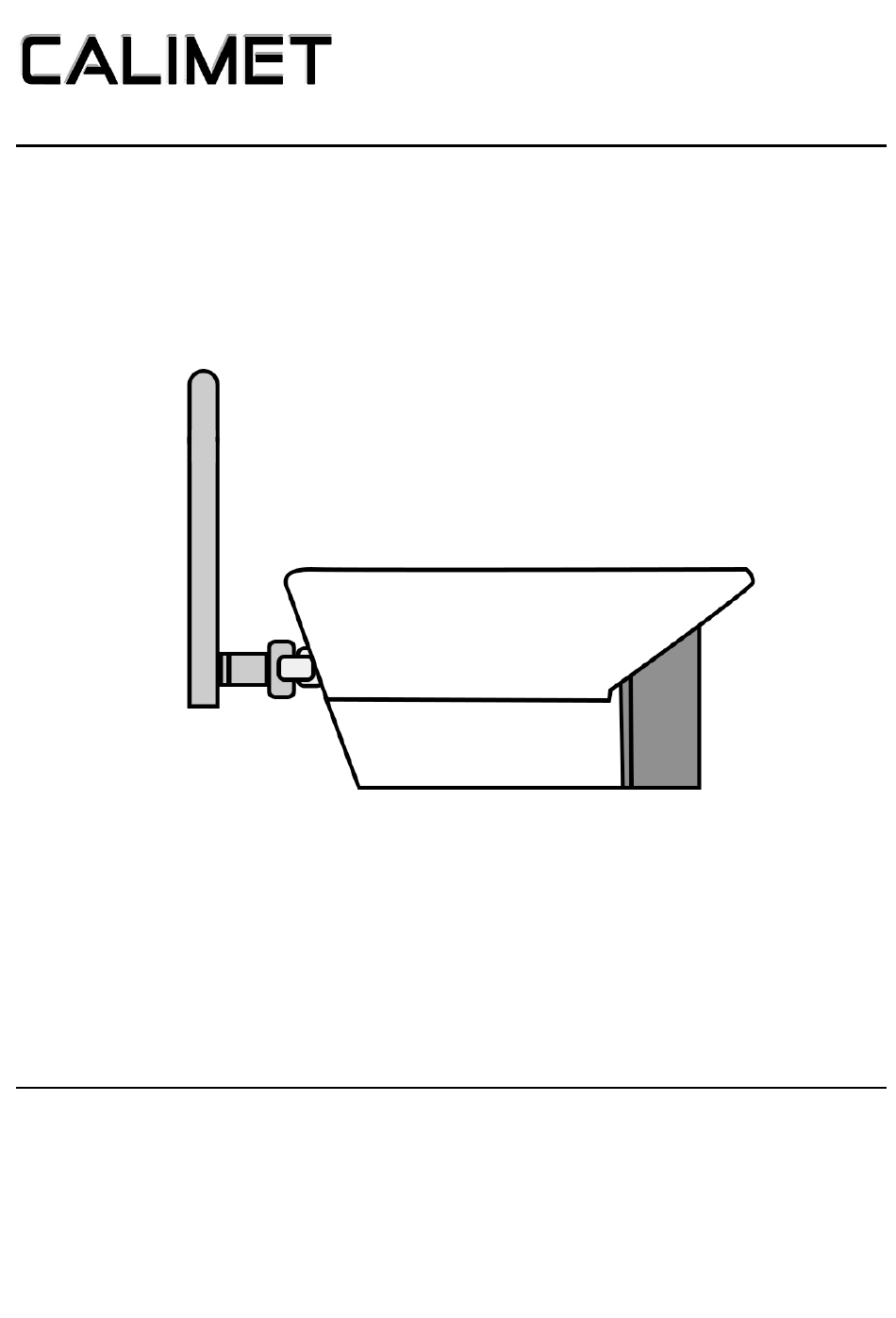

- Page 1 Access Control Systems BW-300A Access Camera Installation Manual Ver 2.0 / 2022-01-18 www.calimetco.com 9949 Hayward Way South El Monte, CA, 91733 Tel: (626) 452-9009...
- Page 2 Items Included Camera, transformer, bracket, antenna, screw kit, instruction manual Step 1: Camera Installation A. Attach antenna to the back of the camera and turn clockwise B. Plug cable into an electric outlet. Voltage range: 100V-250V AC...
- Page 3 Step 2: Download the Smartgate App For apple phones, search Smartgate on Apple Store, and then download For Android phones, search Smartgate on Google Play, and then download Step 3: Create an Account with the Smartgate App 1. Click register on the login screen 2.
- Page 4 3. Go to Settings on your phone, turn on Wi-Fi, and in the wifi section, search and connect with the wifi name “SmartDoor”. 4. Open the Smartgate APP and click the plus button on the right upper corner 5. It will connect automatically and take you to the wireless network settings page 6.
- Page 5 Step 5: Connect your Camera to your Calimet Gate Opener Open the black cover of your gate opener, look for the circuit board. 2. In the smartgate APP, click on the camera to open the live video On your gate opener circuit board, look for and press the study button for about 2 seconds until the flashing light becomes solid and then stop pressing it.
- Page 6 Smartgate App Control Panel Home Live video feed Screenshot Record Video Switch Gates Gate Delete Gate Open/Close Gate Button Add Gate 180 degree rotation • One Camera can control up to 8 gates • Camera can be used as an access control (418 Mhz) Connected Gate 1 Rewind...
- Page 7 Adding Multiple Users 1. Open the menu on the upper left corner, then press “My Circle”. 2. Press “Add” on upper right corner, enter friend’s account information. 3. Friend’s account appears when complete. 4. Go back to the home screen and choose the camera that you would like to share, then click settings.
- Page 8 Alternatively, you can visit the links below to update: a. Iphone: https://apps.apple.com/us/app/smart-gate/id1440418448 b. Android: https://play.google.com/store/apps/details?id=www.calimet.com.calimet 5. Delete the camera - Delete the camera from the smartgate app and then re-add. Cameras can be deleted by pressing the gear icon in the home screen, and then press the Remove Device button.
Need help?
Do you have a question about the BW-300A and is the answer not in the manual?
Questions and answers

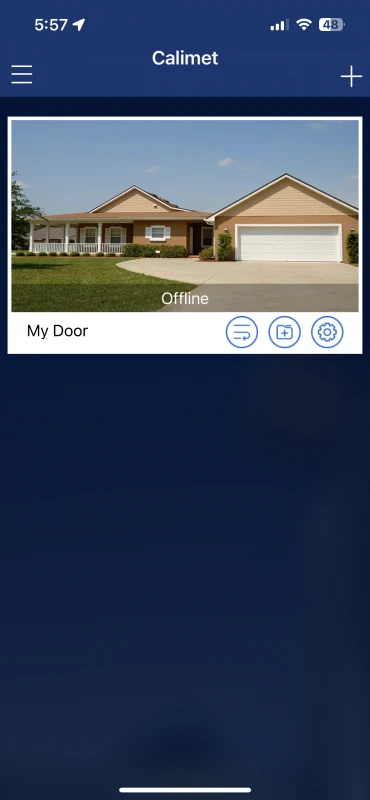

camera is offline
The Calimet BW-300A camera may be offline due to one or more of the following reasons:
1. The Smartgate app is not functioning properly and needs to be force closed and reopened.
2. Wi-Fi or Bluetooth is turned off, or airplane mode is turned on.
3. The Smartgate app is outdated and needs to be updated to the latest version.
4. The camera may need to be deleted from the app and re-added following the setup steps.
These issues can cause the camera to lose connection and appear offline.
