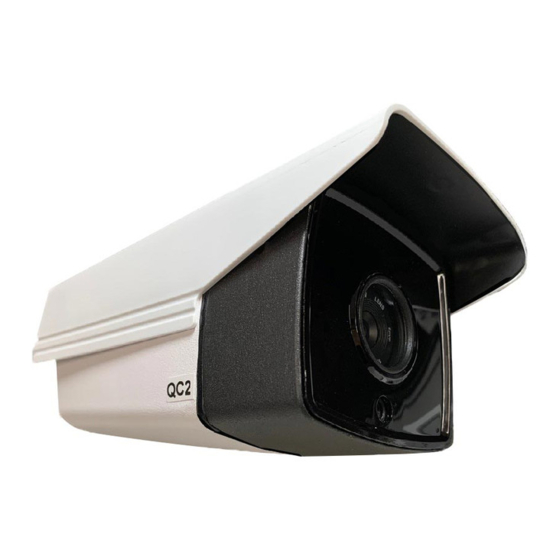

Calimet BW-300A Instruction Manual

Gate security camera
Hide thumbs Also See for BW-300A:

Advertisement

Quick Links

Download this manual
Instruction Manual
BW-300A
Gate Security Camera
www.calimetco.com
9949 Hayward Way South El Monte, CA, 91733 Tel: (626) 452-9009

Advertisement

loading
Need help?

Need help?

Do you have a question about the BW-300A and is the answer not in the manual?

Questions and answers

Related Manuals for Calimet BW-300A

Summary of Contents for Calimet BW-300A

  • Page 1 Instruction Manual BW-300A Gate Security Camera www.calimetco.com 9949 Hayward Way South El Monte, CA, 91733 Tel: (626) 452-9009...

  • Page 2: Items Included

    Items Included Camera, transformer, bracket, antenna, screw kit, instruction manual Step 1: Camera Installation A. Attach antenna to camera and turn clockwise B. Plug cable into an electric outlet...
  • Page 3 Camera Transformer Description...
  • Page 4 Step 2: Download the Smartgate App For apple phones, search Smartgate on Apple Store, and then download For Android phones, search Smartgate on Google Play, and then download Step 3: Create an Account with the Smartgate App 1. Registered / Click register on the main page 2.
  • Page 5 Step 4: Connect the Camera to the Smartgate App Connect using WIFI 1. Open the smartgate App, enter email or phone number and password 2. Use a pen to press the reset button on the back side of the camera transformer for 8 seconds. 3.
  • Page 6 At the moment, the camera is not compatible with 5Ghz routers. Step 5: Connect your Camera to your Calimet Gate Opener 1. Open the hood of your gate opener, look for the circuit board...
  • Page 7 Smartgate App Control Panel Description...
  • Page 8 Camera Control Panel...
  • Page 9 Adding Other Users and Share the Camera 1. Open menu on the upper left corner, then press “My Circle”. 2. Press “Add” on upper right corner, enter friend’s registration account. 3. Friend’s account appears when complete. 4.Go back to control panel to choose the camera that you would like to share, then click setting. 5.

  • Page 10: Delete The Camera

    View Past Video Footage 1. Go to Control Panel 2. Press the Rewind Button 3. Select time frame, the selected button becomes blue 4. Press Start button (delay may occur based on internet speed) 5. The camera comes with 16gb memory card. It can be upgraded to a 64gb memory card. Delete the Camera 1.
