BBM-B-TYPE 22 Outputs Intelligent Traffic Signal Controler Manual en ESPAÑOL
1. ESTABLECER LA HORA ACTUAL / CURRENT TIME SETTINGS
● Botón "Menu"
○ Ir a "current time" → Establecer la hora actual
■ Utilizar "←" "→" "+" "-" para hacer cambios
2. AJUSTES DEL TIEMPO DE ARRANQUE / BOOT TIME SETTINGS
● Botón "Menu"
○ Ir a "Auto On time"
■ Utilizar "←" "→" "+" "-" para hacer cambios
■ Posiciones 2 y 3 del Display para el control de horas.
■ Posiciones 5 y 6 del Display para el control de minutos.
■ El tiempo de arranque son los número de minutos que el dígito parpadea.
3. AJUSTES DE TIEMPO DE APAGADO / OFF TIME SETTINGS
● Botón "Menu"
○ Ir a "Auto Off Time"
○ Programar para que el aparato se apague automáticamente
■ Utilizar "←" "→" "+" "-" para hacer cambios
■ Posiciones 2 y 3 del Display para el control de horas.
■ Posiciones 5 y 6 del Display para el control de minutos.
4. AJUSTE DEL TIEMPO DE PARPADEO / THE FLASHING TIME SETTING
● Botón "Menu"
○ Ir a "Flash Time"
■ Utilizar "←" "→" "+" "-" para hacer cambios
■ Posiciones 4, 5 y 6 del Display para configurar los segundos que quieres que
■ El tiempo máximo que se puede establecer son 255 seguros = 4,25 minutos
● Botón "Save" para guardar los cambios
● Botón "Save" para guardar los cambios
● Botón "Save" para guardar los cambios
parpadee cuando el semáforo va a cambiar de verde a rojo, si quieres que los
semáforos cambien de estado sin parpadear previamente, simplemente hay
que ponerlo a 0 .
● Botón "Save" para guardar los cambios

Advertisement

Table of Contents
loading

Summary of Contents for Cablematic BBM-B-TYPE 22

  • Page 1 BBM-B-TYPE 22 Outputs Intelligent Traffic Signal Controler Manual en ESPAÑOL 1. ESTABLECER LA HORA ACTUAL / CURRENT TIME SETTINGS ● Botón “Menu” ○ Ir a “current time” → Establecer la hora actual ■ Utilizar “←” “→” “+” “-” para hacer cambios ●...
  • Page 2 5. CONFIGURACIÓN SEMÁFORO PARA PEATONES E-W / THE EAST-WEST PEDESTRIAN TO APPLY FOR A WORK TIME SETTINGS ● Botón “Menu” ○ Ir a “E-W Passing Time” ○ En esta configuración, puedes ajustar el tiempo que quieres que el semáforo del peatón E-W se mantenga en verde.
  • Page 3 ■ Posiciones 4, 5 y 6 del Display para configurar los segundos ■ El tiempo máximo que se puede establecer son 255 seguros = 4,25 minutos ● Botón “Save” para guardar los cambios ○ Para deja un Semáforo siempre en rojo ■...

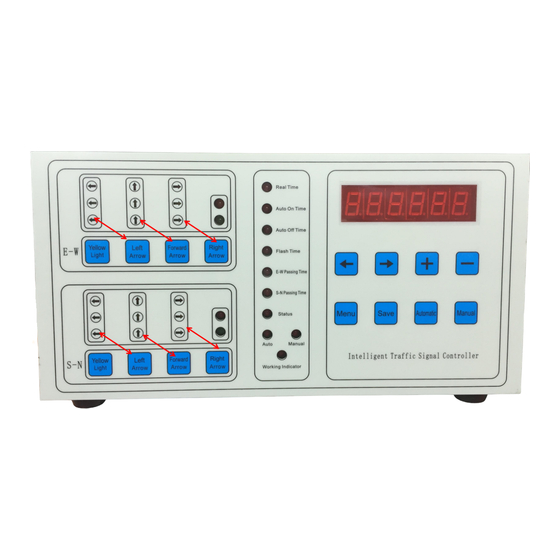

  • Page 4 BBM-B-type 22 outputs Intelligent Traffic Signal Controller Manual Appearance: the panel The whole machine...

  • Page 5: Technical Parameters

    The cabinet Preface: With the development of science and technology, road traffic management is increasingly complex and humane. We develop, produce QR-B-type intelligent traffic signal controller. It allows you to be more easy and convenient management of road traffic. Features: 1, the center of the embedded-system, more stable and reliable.

  • Page 6: Setting Description

    1, the standard: the implementation of the latest national standard GA47-2002 2, the output drive capability: Each typical load capacity of 600W. 3, working voltage: AC80V ~ 270V 50 ± 2Hz 4, the ambient temperature: -40 ° C to +75 ° C 5, relative humidity: 5% ~ 95% 6, dielectric strength: more than 100M 7 Dielectric strength: voltage AC 1500V...
  • Page 7 Menu light switch to "things green men" at the panel "Menu" button, 4, 5, 6-bit digital tube display something pedestrian apply for a work time; something pedestrian applications working time single-digit flashes to indicate can set things pedestrian apply for a job time (255 seconds). Button of by Panel "left"...
  • Page 8 Buttons and "subtrahend" button to modify the need to modify the project. Panel "Save" button to save something straight out of things straight time setting. 十一、The East-west turn right time to set: East-west direction and press "turn right" button, the digital tube 4, 5, 6-bit display things turn right time;...

  • Page 9: Factory Settings

    display the current operating mode (01 mode mode mode 1,02 2,03 3,04 mode 4,05 restore the factory settings); shutdown mode flashes that can be set off mode and work mode. Button of by Panel "left" and "right" buttons to select the need to modify the project; press panel "addend" button and "subtrahend"...
  • Page 10 The cabinet size:63*47*2124cm Live wire Neutral wire Ground wire Red turn left Yellow turn left Green turn left Red pedestrian light Green pedestrian light Red straight light Yellow straight light Green straight light Red turn right Yellow turn right Green turn right The output terminals of east and west direction...
  • Page 11 Red straight light Red turn right Red turn left Yellow straight ligh Yellow turn right Yellow turn left Green straight light Greenturn right Green turn left Red pedestrian light Green pedestrian light Apply for east and west(+) Apply for east and west(-) Apply for north and sounth(+) Apply for north and sountht(-) The output terminals of north and south direction...
  • Page 12 二、Fuse distribution Live wire Neutral wire Ground wire Red turn left Yellow turn left Green turn left Red pedestrian light Green pedestrian light Red straight light Yellow straight light Green straight light Red turn right Yellow turn right Green turn right The output terminals of east and west direction Red straight light Red turn right...
  • Page 13 East-west direction: red light turn left yellow light turn left green light turn left straight red light straight green light straight green light red light turn right yellow light turn right green light turn right pedestrian red light pedestrian green light backup North-south direction: red light turn left...
