Special Tomato EIO Puch Chair User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Model# Series
63000000
UMEIO-06-22LIT
1
UMEIO-06-22LIT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EIO Puch Chair and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Special Tomato EIO Puch Chair

Summary of Contents for Special Tomato EIO Puch Chair

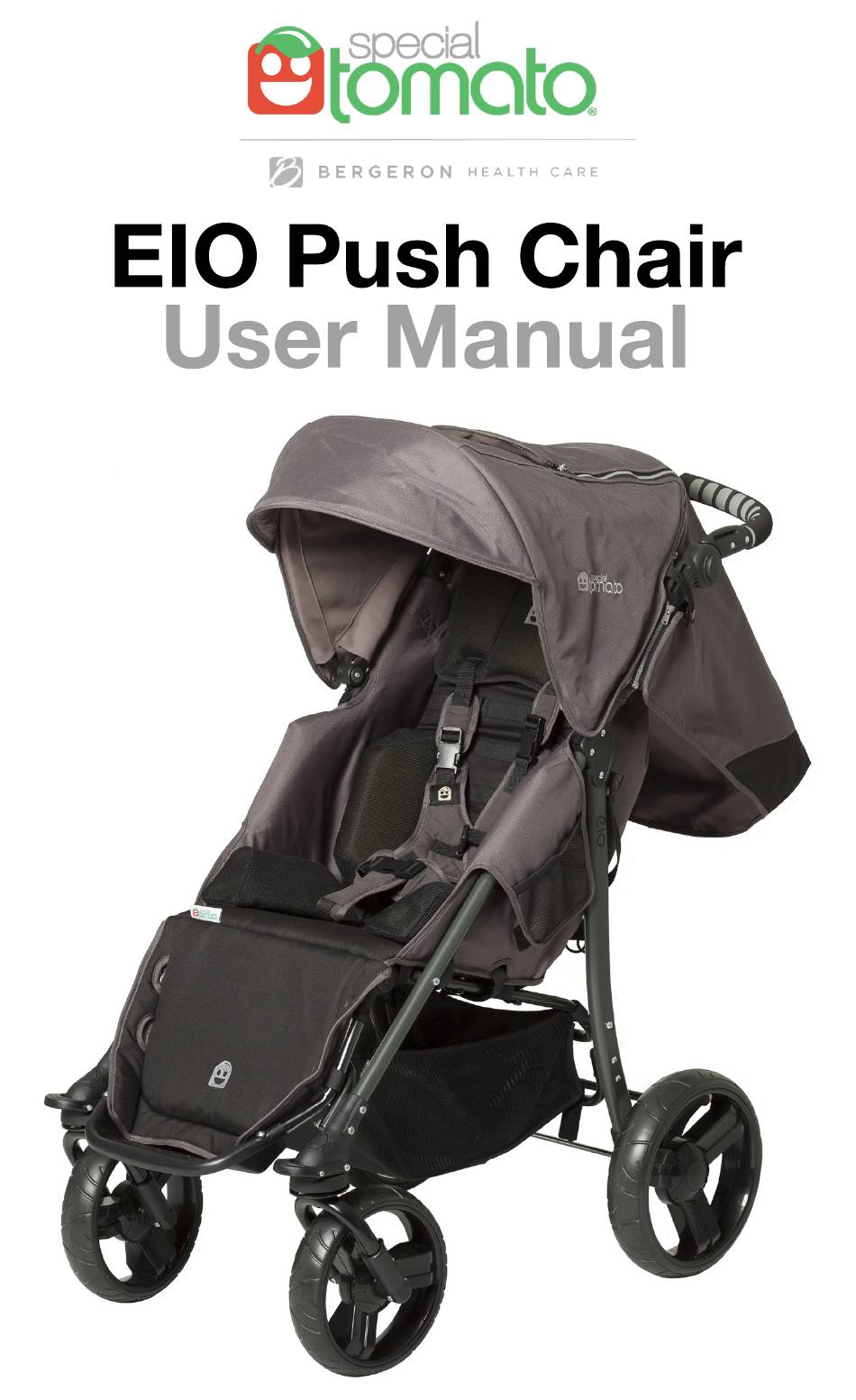

  • Page 1 Model# Series 63000000 UMEIO-06-22LIT UMEIO-06-22LIT...

  • Page 2: Table Of Contents

    Intended Use • The Special Tomato EIO Pushchair is a Pushchair that provides mild to moderate positioning support for children with special needs. It offers typical features for a lightweight Pushchair, including several adjustment options, accessories, a brake mechanism, and the ability to fold for easy transport.

  • Page 3: General Information And Safety

    General Information and Safety WARNING: AVOID SERIOUS INJURY FROM FALLING OR SLIDING OUT. ALWAYS USE THE SEAT HARNESS. NEVER LEAVE CHILD UNATTENDED. KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. A CHILD'S SAFETY IS YOUR RESPONSIBILITY. THIS PUSH CHAIR IS SUITABLE FOR ONE CHILD. •...

  • Page 4: Maintenance

    Armrests & foam • Frame • Contacting a Special Tomato dealer for service or repair Note: Do NOT use WD-40 or silicone-based spray as a lubricant. Follow cleaning instructions for appropriate user hygiene Note: Repair or replacement of non-removable, worn, or broken parts must be performed by a qualified service facility.

  • Page 5: Cleaning

    Cleaning • Clean frame with a damp cloth and a mild detergent and dry thoroughly. • The canopy may be sponged lightly using a damp cloth and a mild detergent. The seat fabric, head cushion, lateral pads and harness pads may be washed. Line dry thoroughly before reuse.

  • Page 6: Dimensions And Sizing Chart

    Dimensions and Sizing Chart Target User Height (approx.) 30 - 50” (76.5 - 127 cm) Seat Width 14” (35.5 cm) Seat Width - Pads at Most Narrow Point 9” (22.9 cm) Seat Depth 12” (30.5 cm) Seat Back Height 24” (61 cm) Seat to Footwell - Stroller Only 13”...

  • Page 7: Assembly & Fitting

    Assembly & Fitting HANDLE HANDLE TUBE 1. FRAME PRIMARY LOCK Open frame in the upright position. When primary & secondary lock is engaged, an FOOTREST CONNECTION SECONDARY audible CLICK will be heard. LOCK NOTE: Rigid inserts may be removed from the shopping pocket.

  • Page 8: Seat Fabric

    6. SEAT FABRIC Double button on the handle tube (right & left sides). When button is engaged, an audible SNAP will be heard. 6A. SEAT FABRIC Button support straps to each rear leg. When button is engaged, an audible SNAP will be heard.

  • Page 9: Canopy

    6E. FOOTWELL SNAPS (×2) Button footwell fabric to footwell snaps. When button is engaged, an audible SNAP will be heard. 6F. FOOTWELL VELCRO (×2) Wrap velcro around footwell frame and fasten (right and left sides). 6G. SIDE SADDLE POCKETS Fold over primary frame locks and velcro down (right and left sides).

  • Page 10: Padded Laterals (×4)

    8. PADDED LATERALS (×4) Feed both hook-and-loop straps through slots located at the edges of seat & back surface. Pull hook-and-loop straps through to the outside of the seating (or back) surface. Then wrap around frame and fasten. Repeat for all straps. ATTENDANT TETHER STRAP Attach Tether Strap to handle bar.

  • Page 11: Parking Brake

    9.B HEIGHT-ADJUSTABLE FOOT BLOCK (cont.) Foot block shown installed. NOTE: Block can be adjusted higher or lower. Feed strap around outside of frame. 11. PARKING BRAKE Using foot, push up to disengage the parking brake and press down to engage the parking brake.

  • Page 12: Folding

    Folding Warning: Moving parts present risk of pinching. The push chair should always fold and unfold easily. Do not force. Fully recline push chair backrest. Disengage rear canopy hood from seat back. Place handle in upright position. Unlock front swivel wheels (both sides facing forward).

  • Page 13: Lifting

    Lifting Warning: Never lift the push chair with a child in it. To lift the push chair, firmly grasp the front tube frame above padded fabric wrap on both sides of EIO. UMEIO-06-22LIT...

  • Page 14: Limited Warranty

    Limited Warranty Your EIO Push Chair is guaranteed to be free from manufacturing defects for a period of 2 years from the date of purchase provided it is used in compliance with these operating instructions. This “Limited Warranty” extends only to the original retail purchaser and is only valid when supplied with proof of purchase.

This manual is also suitable for:

Umeio-06-22lit63000000
