Related Manuals for HOMCOM 850-112
Summary of Contents for HOMCOM 850-112

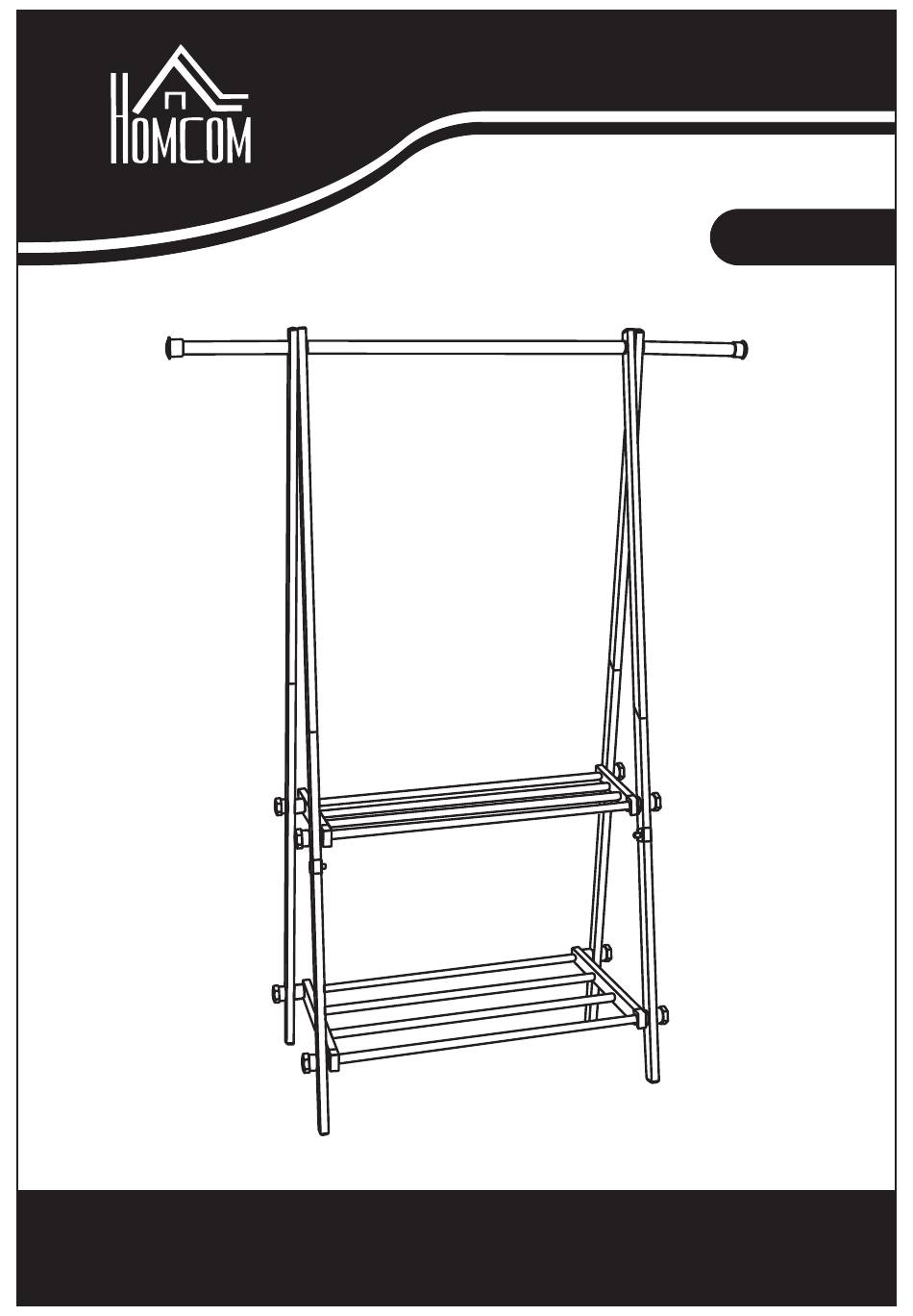

- Page 1 UK C000000 DE C000000 IT C000000 FR C000000 ES C000000 US CA C000000 EU C000000 Popular Products for Home UK DE IT C000000 850-112 ASSEMBLY INSTRUCTION...
- Page 2 PART ① ⑧ ⑨ ② ⑩ ③ ④ ⑤ ⑥ ⑦ ① ② ① ② ⑧ ⑧ UK:Connect tube ① and tube ② with screw ⑧ as shown below.. DE:Verbinden Sie Rohr ① und Rohr ② mit der Schraube ⑧ wie unten gezeigt. IT:Collegare il tubo ①...
- Page 3 ③ ⑨ ⑨ ③ ⑦ ⑩ ⑦ ⑩ ⑦ ⑨ ⑩ UK:Outer tubes ⑨ ⑦ ⑩ DE:Außenrohre ③ IT:Tubi esterni UK:Inner tubes DE:Innenrohre IT:Tubi interni UK:Put ⑩ into the upper hole of tube ②. Put ⑨ between tube ③ and tube ⑦, then tighten tube ③ and tube ⑦...
- Page 4 ④ ④ UK:Put ⑬ (Short) on to the both ends of ④ . DE:Setzen Sie ⑬ (kurzes) auf die beiden Enden von ④. IT:Mettere⑬ (Corto) su entrambe le estremità di ④ . ⑤ ⑥ ⑥ ⑤ (Long) onto the both ends of ⑤ . (Long) onto the both ends of ⑥.
- Page 5 UK:Fix ⑪ on the suit able place of two inner tubes,you can adjust the place of ⑪ as y our need when you fold the rack . DE:Befestigen Sie ⑪ es an der geeigneten Stelle von zwei Innenrohren. Sie können die Stelle nach ⑪ Bedarf einstellen, wenn Sie das Gestell zusammenklappen.
