Profelmnet PSR-34RW Quick Start Manual

34RW
Two channels receiver for lights 230VAC 500Wmax/channel
Product Code
PSR-34RW
PS-34RW

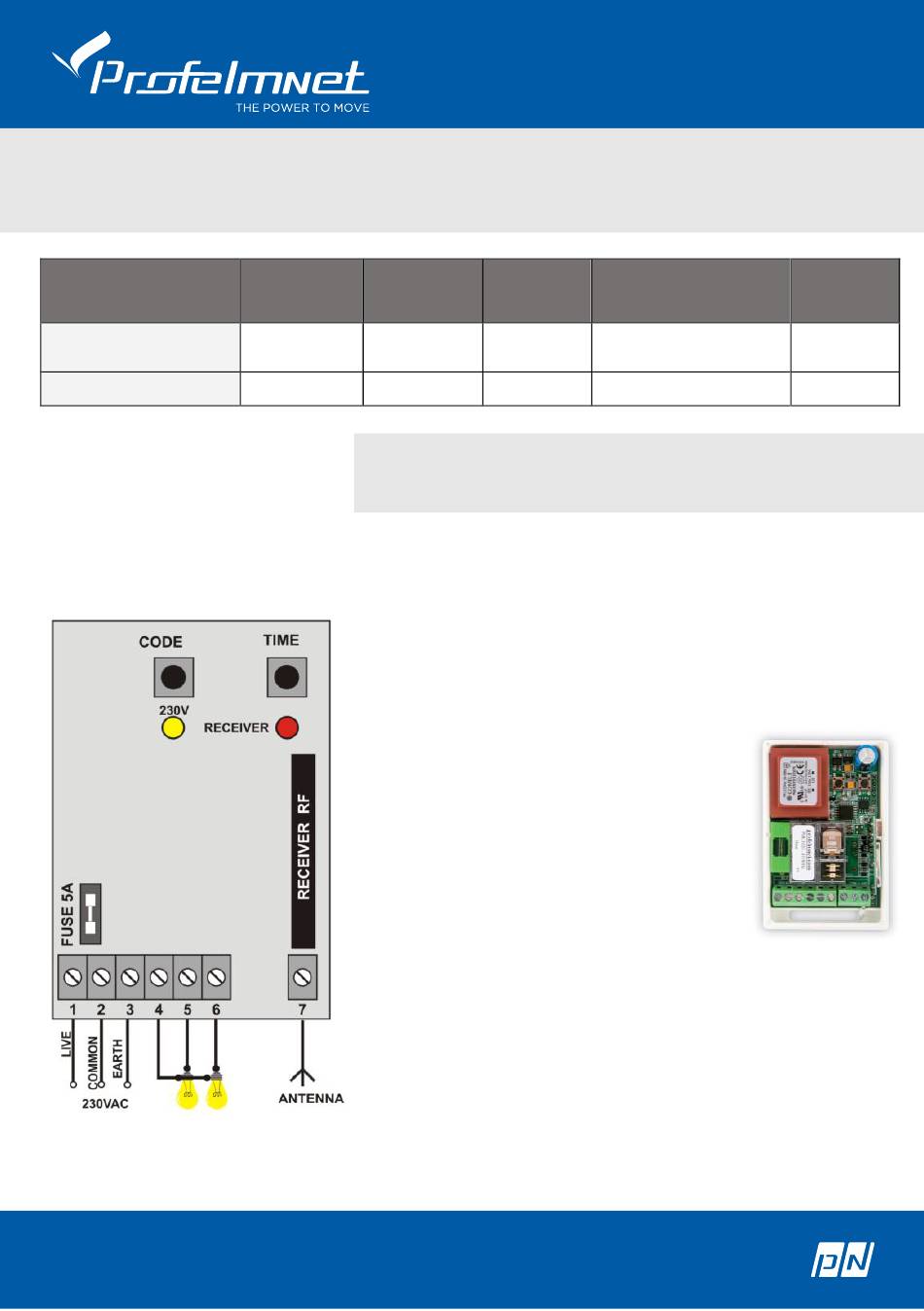

Power Supply 230VAC:

In terminals 1 (LIVE) , 2 (COMMON), 3 (EARTH)
memory. Do the same procedure with the second channel, using the button TIME. The receiver accepts up to 150
transmitters per channel.
Frequency
Codification
(MHz)
Keeloq
433,92
Rolling
433,92 Standard

Functions - Connections

Realy Output:
1ο light channel up to 500W: Live= terminal 6, Common = terminal 4
2ο light channel up to 500W :Live =terminal 5, Common = terminal 4

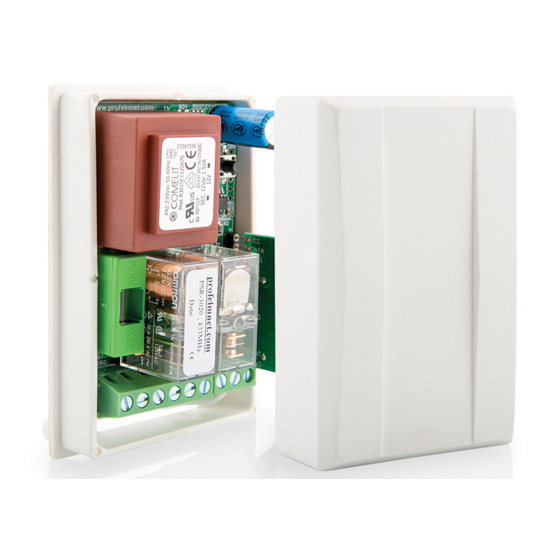

Receiver Function:

This receiver is able to activate 2-channels lights.
It has a status memory that means that if a
channel is turned on and power supply
interruption (PPC) is interrupted, the receiver
returns to the previous state. Maximum load up
to 500W per channel. With 4-way remote
control, we can install 4 independent wireless
light channels. Particularly useful for controlling
garden lights, activating swimming pool, electrical appliances.

Adding new transmitter in the receiver :

Press firstly the button Code and when RED indicating light goes ON
leave the button. Then press the button of the transmitter you want
to save. The RED indicating light flashes, the transmitter is on the
Proedrou Drakaki 11 ,173 41 Agios Dimitrios
Call Center: 210 9850 244, Fax: 210 9823 264
Channels

Relay Output

2
Push ON/OFF
2
Push ON/OFF
www.profelmnet.com
Vac/DC
230
230
