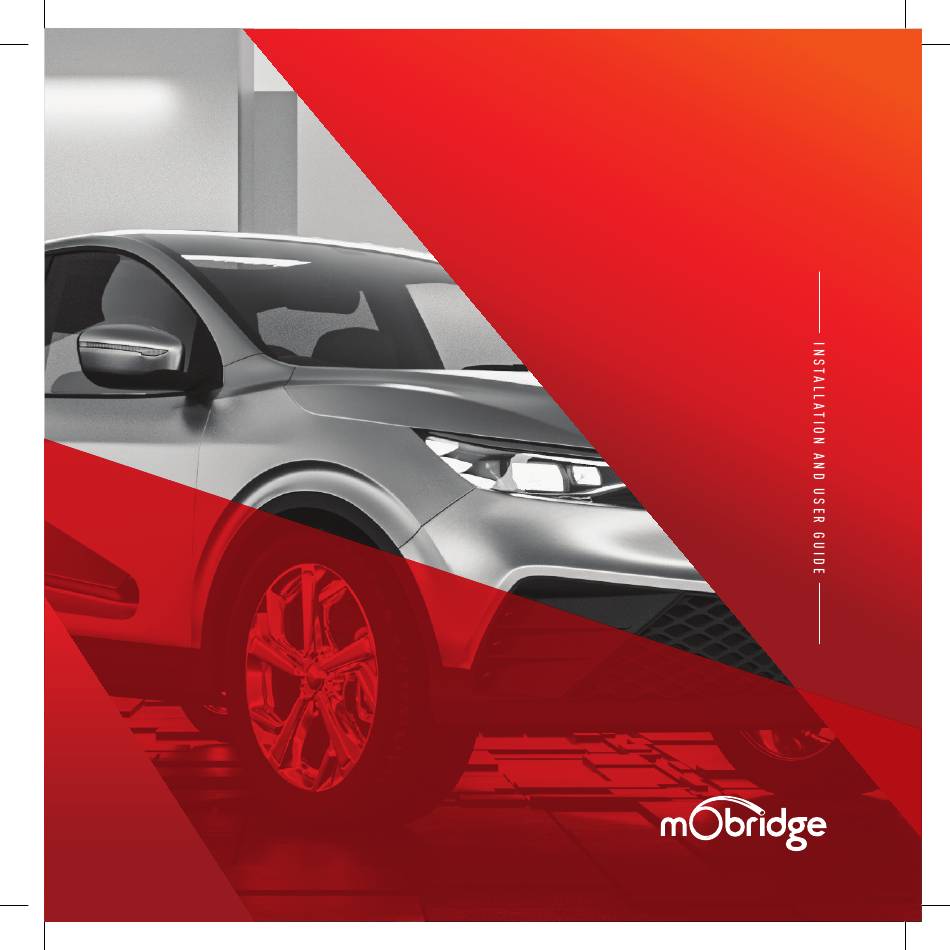

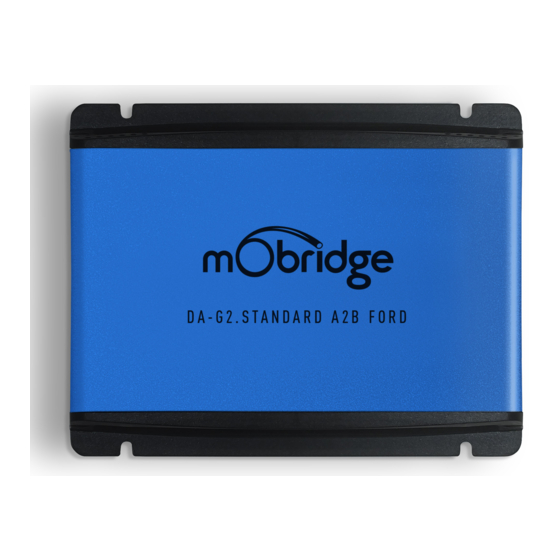

- Page 1 D A -G 2 A 2 B FO R D B R I D G I N G M E D I A , C O M M U N I C A T I O N & L I F E S T Y L E W I T H Y O U R V E H I C L E...
-
Page 3: Table Of Contents
DISCLAIMER WELCOME OVERVIEW Vehicle Compatibility Kit Contents DA-G2.Entry A2B Ford Kit DA-G2.Standard A2B Ford & DA-G2.Pro A2B Ford Kits Technical Specifications HARDWARE INSTALLATION System Layout DA-G2.Entry A2B Ford DA-G2.Standard A2B Ford & DA-G2.Pro A2B Ford Installation Guide Wiring Harness Remote Wakeup DIP Switches Ford Factory Pinout Speaker Harness... -
Page 4: Disclaimer
D I S C L A I M E R mObridge makes every effort to try and keep the support and installation documentation up to date. We do not reimburse or bear costs arising from installations should installation issues occur. mObridge can be contacted via email and also via its worldwide distribution network. -
Page 5: Welcome
The user can also use the radio controls to change preset settings in the DA-G2 for different tuning profiles. As with all mObridge products, we have included a USB for software updates, allowing for new features to be added as they become available. The DA-G2 A2B series can be updated by simply loading the latest software from our website and through the use of the mObridge DSP user interface. -
Page 6: Overview
O V E R V IE W VEHICLE COMPATIBILIT Y The mObridge DA-G2 A2B Ford series is compatible with Ford vehicles that use the Sync 3 Infotainment system with a B&O or Revel amplifier. This includes most Ford models from 2018 onwards, including the Escape, Expedition, Explorer, F-150, F-250, F-350, F-450, F-550, Raptor, Everest, Endura, EcoSport, Focus, Puma and Fiesta. - Page 7 RCA CONNECTION CAN & SPEAKER 8 Channel RCA WIRING HARNESS connection (pro only) D A - G 2 A 2 B F O R D G U I D E PA G E 7...
-
Page 8: Technical Specifications
TECHNICAL SPECIFICATIONS I N P U T Digital Input ® Twisted Pair O U T P U T Digital Outputs TOSLINK (24bit 48kHz) Frequency Response (Digital) 20Hz - 24KHz Analog Outputs 10 Channels (RCA) Output Voltage (Peak) 5.09 Output Voltage (RMS) 3.6V Analog Output Type Single-Ended... -
Page 9: Hardware Installation
FOR DA-G2 INSTALLATIONS, THE FACTORY AMPLIFIER MUST BE BE REMOVED OR DISCONNECTED TOSLINK OEM Amp connectors OEM Ford B&O or Revel amplifier: Disconnect OEM A2B (USB plug) and plug into mObridge DA-G2 unit From vehicle amp harness EQ | Processor Aftermarket 12v (... -
Page 10: G2.Standard A2B Ford & Da-G2.Pro A2B Ford
SYSTEM LAYOUT | DA-G2.STANDARD A2B FORD & DA-G2.PRO A2B FORD OEM Ford B&O OEM A2B FOR DA-G2 or Revel amplifier: INSTALLATIONS, THE Disconnect OEM A2B (USB plug) and FACTORY AMPLIFIER plug into mObridge MUST BE BE REMOVED DA-G2 unit OR DISCONNECTED OEM Amp connectors Aftermarket Amplifier From vehicle... -
Page 11: Installation Guide
WIRING HARNESS REMOTE WAKEUP For DA-G2 A2B installations, the factory The DA-G2 A2B Ford kits come with remote amplifier must be removed and the DA-G2 unit wake-up functionality. The remote wake-up wire can be installed in its place. After locating the... -
Page 12: Dip Switches
DIP SWITCHES There are 6 dip switches on the DA-G2 A2B unit which are used to select which vehicle variant you are installing the unit in. For the default setting, ensure that all switches are in the down position as shown below. S W I TC H S E T TI N G S V E H I C L E MODEL YEAR... - Page 13 P I N N U M B E R D E S C R I P T I O N C O L O U R CAN High Green/Blue *Not Used – *Not Used – Centre Channel (-) Gray/Yellow Subwoofer 1 (-) Gray Front Right Door (-) White/Orange...
-
Page 14: Power Harness
POWER HARNESS FIG 03 Power Harness P I N N U M B E R D E S C R I P T I O N C O L O U R Ground Black/Violet CAN High (Lincoln only) Green/Blue CAN Low (Lincoln only) White/Green Constant 12v (+) Brown/Red... -
Page 15: Graphical Interface Operation
GRAPHICAL INTERFACE OPERATION The mObridge DSP GUI (Graphical User Interface) can be downloaded from www.mobridge.us/mobridge- dsp-pc-application and can be used in both online and offline mode. However, in order to ‘map the channels’, you will need to be connected to the DA-G2 A2B with power connected. Offline mode allows you to configure Graphic EQ settings and store them for later fine-tuning in the car if desired. - Page 16 C L EA R FIG 04 DA-G2 A2B is connected to the mObridge DSP GUI Once the DA-G2 A2B is connected via the GUI we can just click on the ‘Connected” button in the top right-hand corner and this will bring us to the update page as seen on the following page (FIG 05).
- Page 17 ‘Check Online for Updates’ option is ticked and will open a window where you can select the new then press the ‘Firmware Update’ button. This DA-G2 A2B Ford firmware file to update to and will automatically check for the latest software the update procedure will begin.
-
Page 18: Speaker Mapping
SPEAKER MAPPING Once the DA-G2 A2B unit is connected to the mObridge DSP application, you will see the below screen (FIG 06). 0.00Hz Default Preset 01 C O N F I G U R A T I O N C H A N N E L E Q... -
Page 19: Saving Setups & Presets
When running a component speaker system with Next, you will need to allocate the appropriate a passive crossover, only select one of the speakers input mappings to each speaker. For each speaker, in the cluster. It is not important which speaker is simply select the speaker image in the top left chosen, as this is only the mapping stage. - Page 20 PRESET File Options Tools Help NUMBER Save 0.00Hz Default Preset 01 Save As Open SAVE C O N F I G U R A T I O N C H A N N E L E Q C O N N E C T E D Fullscreen On SETTINGS Exit...
- Page 21 It is also possible to pull these presets up by using the “Adaptive volume” setting in the Ford head unit as shown on the screens below (FIG 08 & 09). This will allow you to switch presets as follows: Off = Preset 1 Low = Preset 2 Medium = Preset 3 High = Preset 4...
-
Page 22: Fcc Information & Disclaimers
Connect the equipment into an outlet on a vehicle features not operate as intended. circuit different from that to which the receiver Please be aware that mObridge does not have is connected. access to OEM vehicle data bases. When fitting... - Page 24 M O B R I D G E . U S CONTAC T US PHONE +61 3 9465 5997 INQUIRIES sales@mobridge.com.au...
