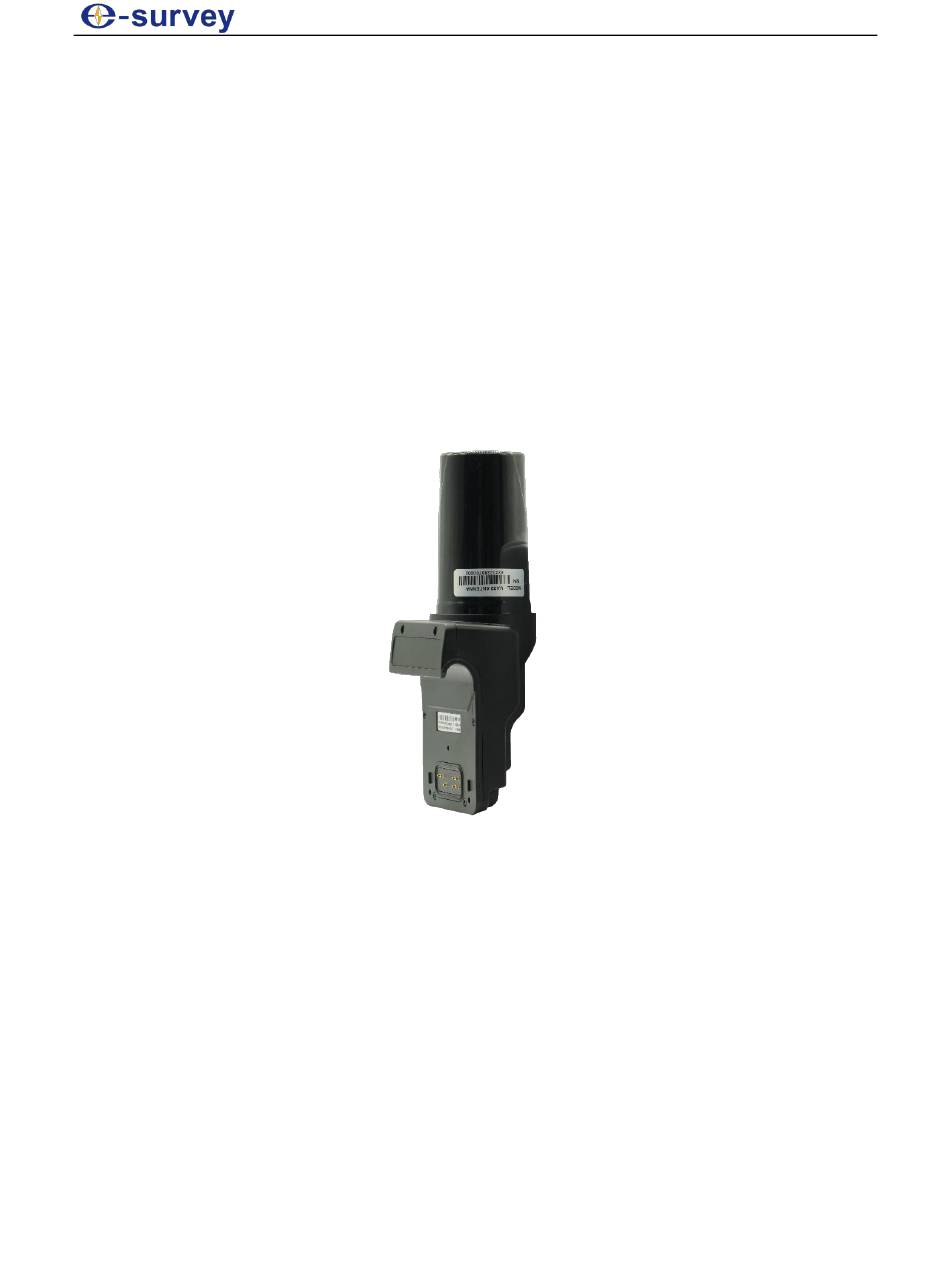

- Page 1 HP50 User Manual HP50 High-precision GNSS Module User Manual Edition: V1.0_20210524...
- Page 2 HP50 User Manual Statement Please read carefully: Thank you very much for purchasing our product. For instructions on how to use this product, please be sure to read the user manual. This user manual is for your receiver only. If your receiver does not match the situation in the user manual, the actual situation of the receiver shall prevail.
-
Page 3: Table Of Contents
HP50 User Manual Contents Product Description ......................... 1 Appearance..........................1 Technical Specifications ......................2 Connect to UT30 ........................2 Connect the external Antenna ....................3 Software configuration ......................3 Basic Setting ........................3 SBAS Mode ........................4 NTRIP Mode ........................4... -
Page 4: Product Description

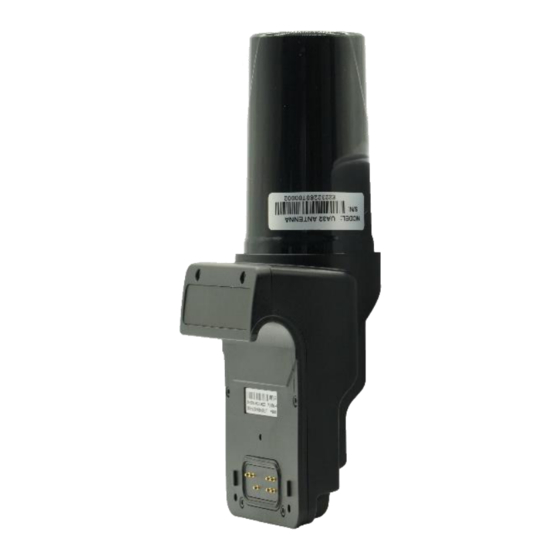

800 channels for tracking signals • Support NTRIP and L-band (Atlas) • Any software can ready the high-precision position 2. Appearance HP50 includes the GNSS module and small antenna. The antenna is connected to the GNSS module with MCX port. -
Page 5: Technical Specifications
HP50 User Manual 3. Technical Specifications 4. Connect to UT30 The HP50 module is connected to UT30 with pogo pin. The UT30 tablet provides power and HP50 outputs position information through the pogo pin. • Take down the thin film on UT30 pogo pin if there is •... -
Page 6: Connect The External Antenna
To have better antenna phase center measurement, user can replace the default antenna with the MCX port. 6. Software configuration To configurate the HP50 module, user must have the correct firmware on UT30. If there is a software named “Satellite Settings” on UT30, then it is normal. Otherwise, please contact eSurvey support for the new firmware. -
Page 7: Sbas Mode
HP50 User Manual 6.2 SBAS Mode 1. GNSS Type: Extra GNSS (HP50) 2. Satellite System: All 3. Differential config: Single 6.3 NTRIP Mode 1. GNSS Type: Extra GNSS (HP50) 2. Satellite System: GPS/BDS/GPS+BDS/GPS+GLONASS/All 3. Differential config: NTRIP 4. Input the IP address, port, username, and password, click the arrow on [Mount point] to load the mountpoint list. - Page 8 HP50 User Manual 6. Open the survey software and choose [Internal GPS]. 7. Basic position information is displayed on the Android drop down zone. 8. The survey software is ready to go.
-
Page 9: Warranty Policy
If it is a non-warranty product, and the repair center will handle the maintenance of the extra-fee. After the device is repaired, the same fault is con- firmed by the repair center and e-survey will provide a 3-month free warranty service.
