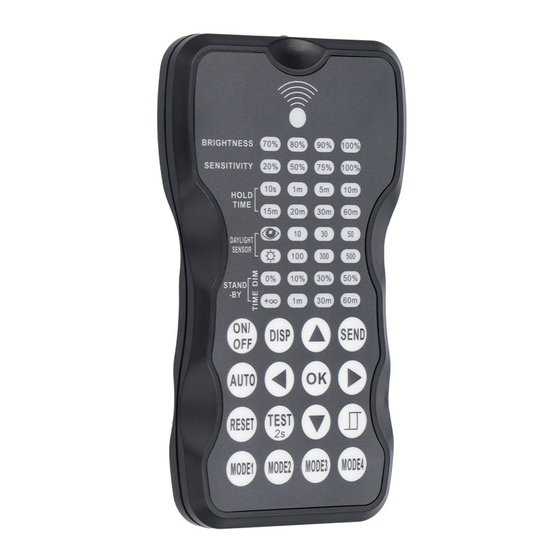

- Page 1 USER MANUAL REMOTE CONTROL LED CALI HIGHBAY 5438127...
- Page 2 SPECIFICATIONS POWER SUPPLY 2x AAA batteries, alkaline preferred (not included) CARRYING CASE Carrying case included RANGE Up to 15m (50ft) OPERATING TEMPERATURE 0°C-50°C (32°F-122°F) DIMENSIONS 123x70x20.3 mm (4.84”x2.76”x0.8”) WARNING! Remove the batteries from the remote if the remote will not be used for extended periods (30 days). OVERVIEW The remote control Wireless IR Configuration Tool is a handheld tool for remote configuration of IR-enabled fixture integrated sensors.
- Page 3 BUTTON OPERATION BUTTON DESCRIPTION BUTTON DESCRIPTION Press the ON/OFF button, to turn Press the AUTO button to activate the light on or off. the optional motion sensor. Display the current settings with the LED indicators. Press the TEST button to test the sensitivity of the motion sensor.
- Page 4 CHANGE SETTINGS OF SENSOR(S) Press button, the remote control leds will show the latest parameters you set. NOTE: if you push button before, you must push button to unlock the sensor. Press enter in the setting condition, the parameter leds of remote control will flash to be selected, navigate to the desired setting by pressing to select the new parameters.
- Page 5 DAYLIGHT SENSOR FUNCTION Open the daylight sensor by push when remote control is in setting condition. Settings on this demonstration: Hold-time: 30min Stand-by Dim: 10% Setpoint to light on: 50lux Stand-by period: + Setpoint to light off: 300lux (when the smart photocell sensor open, the stand-by time is only + CORRIDOR FUNCTION VS DAYLIGHT SENSOR FUNCTION ln corridor function, turn on the light MUST by natural light level lower daylight sensor setting and Occupancy .
- Page 6 CHANGE THE MODES: Press button,the remote control Led indicators show existing parameters. Press to select the new parameters. Press to confirm all parameters and saving in the mode. UPLOAD The upload function allows you to configure the sensor with all parameters in one operation. You may select CURRENT SETTING parameters or the MODE for uploading.
- Page 7 Hoftronic products visit www.hoftronic.com. Hoftronic shall not be responsible NEDERLANDS for any damage resulting from the failure to follow these instructions. Hoftronic reserves the right to make changes in the manual - the current version can be downloaded at www.hoftronic.com.
- Page 8 Wanneer u het product wilt afvoeren dient u dit op een verantwoorde manier als instructies. Hoftronic behoudt zich het recht voor om wijzigingen in de handleiding selectief afgedankte elektronische en elektrische apparatuur in te zamelen. Producten aan te brengen - de huidige versie kan worden gedownload op www.Hoftronic.com.
