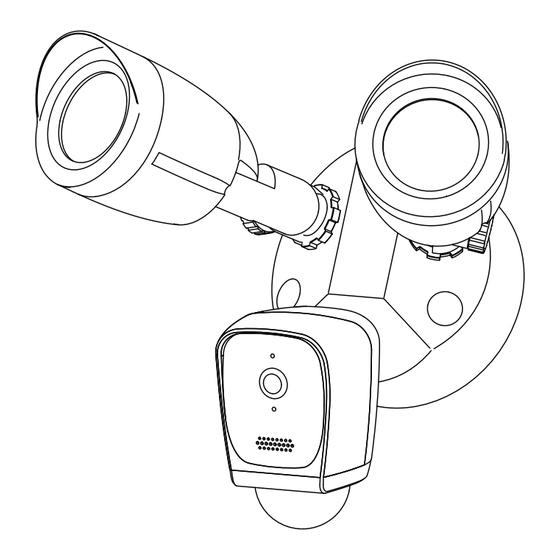

LED SMART SECURITY FLOODLIGHT
& CAMERA
Models: 65/900, 65/901, 65/902
INSTALLATION AND SAFETY INSTRUCTIONS
IMPORTANT: Read before installing fixture. Retain for future reference.
Thank you for choosing our Starfish Security Floodlight with Camera.
Getting started is easy.
1. Parts Included
Security Flood
Camera
2. Product Details
Adjustment Locknut
Camera Lock Collar
Micro SD Card Slot
3. Safety Instructions
WARNING: Risk of Fire or Electric Shock.
• This fixture must be wired in accordance with the National Electrical Code and applicable local codes and ordinances.
Proper grounding is required to insure personal safety. Carefully observe grounding procedure under installation section.
• Make certain power is OFF before starting installation or attempting any maintenance. Risk of fire/electric shock. If not
qualified, consult an electrician.
• For proper weatherproof function, all gaskets must be seated properly and all screws inserted and tightened firmly. Apply
weatherproof silicone sealant around the edge of the Back Box and/or Junction Box. This is especially important with an
uneven wall surface. Silicone all plugs and unused conduit entries.
• Be sure fixture temperature is cool enough to touch. Do not clean or maintain while fixture is energized. Clean glass lens
with non-abrasive glass cleaning solution. Do not open fixture to clean the LED. Do not touch the LED.
WIRING: If wiring does not include a ground wire, consult your local electrical code for approved grounding methods.
For proper connection, place wire nut over wires and twist clockwise until tight.
© Copyright 2022 Satco Products, Inc. 7/22, v2.1
Gasket
M4*14 Bracket
Screws
LED Bullet Head
Reset
Wire Nuts
1900 Lm Output
1
Light Lock Collar
Microphone
Lens
LED Indicator
Speaker
PIR Motion Detector
Satco Products, Inc.
Brentwood, NY 11717
