BEEK BT-IPC5100 PLUS User Manual

Multi-functions cctv tester
Hide thumbs
Table of Contents

Advertisement

Quick Links

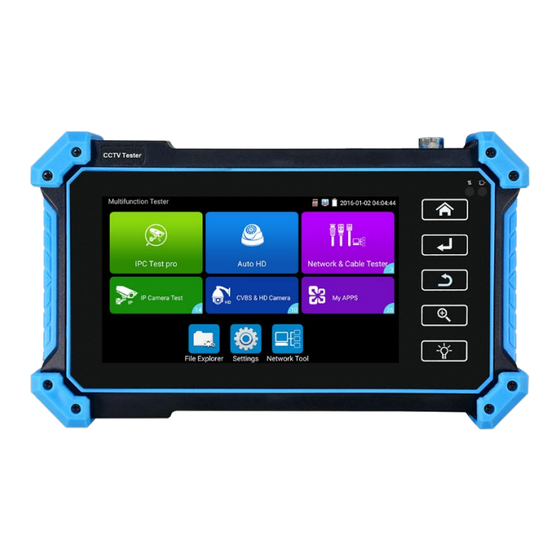

BT-IPC5100 PLUS
Multi-functions CCTV Tester
Thank you for purchasing the IP camera tester. Please read the manual before
using the IP camera tester and use properly.
For using the IP camera tester safely, please first read the「Safety Information」
carefully in the manual.
The manual should be kept well in case of reference.
User Manual
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BT-IPC5100 PLUS and is the answer not in the manual?

Questions and answers

Related Manuals for BEEK BT-IPC5100 PLUS

Summary of Contents for BEEK BT-IPC5100 PLUS

  • Page 1 BT-IPC5100 PLUS Multi-functions CCTV Tester User Manual Thank you for purchasing the IP camera tester. Please read the manual before using the IP camera tester and use properly. For using the IP camera tester safely, please first read the「Safety Information」...
  • Page 2 BT-IPC5100 PLUS Multi-functions CCTV Tester User Manual Keep the S/N label for after-sale service within warranty period. Product without S/N label will be charged for repair service. If there is any question or problem while using the IP camera tester, or damages...

  • Page 3: Table Of Contents

    BT-IPC5100 PLUS Multi-functions CCTV Tester User Manual Content 1. Safety information .....................1 2. IP Camera Tester Introduction ...................2 2.1 General ......................2 2.2 Packing list ......................2 2.3 Function interface .....................3 3. Operation ........................5 3.1 Installing the Battery ..................5 4. IP camera test ......................5 4.1 Power output ....................5...
  • Page 4 BT-IPC5100 PLUS Multi-functions CCTV Tester User Manual 7.6 File explorer ....................29 7.7 System Setting ....................30 8. Specifications ......................33 8.1 General Specifications ..................33...

  • Page 5: Safety Information

    BT-IPC5100 PLUS Multi-functions CCTV Tester User Manual ◆ The tester is intended to use in compliance with the local rules of the electrical 1. Safety information usage and avoid to apply at the places which are inapplicable for the use of ◆...

  • Page 6: Ip Camera Tester Introduction

    BT-IPC5100 PLUS Multi-functions CCTV Tester User Manual 2. IP Camera Tester Introduction 2.1 General The 5 inch IPS touch screen IP camera tester is designed for maintenance and installation of IP cameras, analog cameras, TVI, CVI, AHD cameras, as well as testing 4K H.264 /4K H.265 camera by mainstream.

  • Page 7: Function Interface

    BT-IPC5100 PLUS Multi-functions CCTV Tester User Manual 2.3 Function interface Menu key Confirm key Return: Return or cancel while setting parameters of the menu 4xzoom the image display LED light The RS485 data transmission and received indicator, it lights red while the data is being transmitted or received.
  • Page 8 BT-IPC5100 PLUS Multi-functions CCTV Tester User Manual Top interface Bottom interface Press more than 2 seconds, turn on or off the device, short press to turn on or off the menu display Micro SD card moveable, support Micro SD card up to 32G...

  • Page 9: Operation

    BT-IPC5100 PLUS Multi-functions CCTV Tester User Manual RS485 Interface: RS485 communication for the PTZ Audio input UTP cable tester port VGA input 3. Operation 3.1 Installing the Battery The tester has built-in lithium ion rechargeable battery. The battery inside battery cabin should be disconnected for safety during transportation! Prior to the use of the instrument, please take out the battery insulation paper.

  • Page 10: Ipc Test Pro

    BT-IPC5100 PLUS Multi-functions CCTV Tester User Manual 4.2 IPC Test pro Camera test often need to open multiple apps, "IPC TEST PRO" app, using new technology and combine multiple functions to one APP, it can increase efficiency. Application: Support multi-segment IP address scan, can visually display camera manufacturer, click IP address to play the image.

  • Page 11: Ip Discovery

    BT-IPC5100 PLUS Multi-functions CCTV Tester User Manual By one key to connect camera test tool, browser can login and configure camera. Batch activate Hikvision and Dahua cameras. IP discovery Press IP discovery , tester auto-scan the whole network segment IP, as well as auto-modify the tester’s IP to the same network segment with the scanned camera's...
  • Page 12 BT-IPC5100 PLUS Multi-functions CCTV Tester User Manual display camera image. Factory default use admin password to auto login, if you modified the password, then default use the modified password to login. Click the button “Refresh”, tester will scan the ONVIF camera again. Click the newly displayed ONVIF camera on the “Device List”.
  • Page 13 BT-IPC5100 PLUS Multi-functions CCTV Tester User Manual Auto Login: After open this function, tester can auto login camera and display camera image (The login password is the same with last time, the first using password is the default password "admin") Video transmission protocol: UTP and TCP protocol.
  • Page 14 BT-IPC5100 PLUS Multi-functions CCTV Tester User Manual If it is network video input to the tester, as the tester supports resolution up to 1080p, the input image will be very clear after it is enlarged. This is greatly helpful for the installers to ensure the IP camera’s video coverage and decide the IP camera’s...
  • Page 15 BT-IPC5100 PLUS Multi-functions CCTV Tester User Manual After selecting channel, you can edit the channel name, modify the display position, and switch the font size. If not modify, select “Content location - Default location”. Select “Customize” to arbitrarily adjust the channel name and display location.
  • Page 16 BT-IPC5100 PLUS Multi-functions CCTV Tester User Manual PTZ speed set: Horizontal and Vertical speed set. Doc: Click "Create document”, can create the testing reports document of camera. Click “Preview” to view the report document Enter the camera test information, click "Create Document" to complete the report.

  • Page 17: Non-Onvif Ip Camera Test

    BT-IPC5100 PLUS Multi-functions CCTV Tester User Manual Icons description: The description of function icons on the bottom toolbar. 4.5 Non-Onvif IP camera test Display image from the 4K H.265 camera by mainstream. Note: Currently, the IPC Test App only supports some brands’ specific IP cameras, these include specific models made by ACTI, AXIS, Dahua, Hikvision, Samsung, and many more.

  • Page 18: Analog Camera Test

    BT-IPC5100 PLUS Multi-functions CCTV Tester User Manual the tester’s IP address settings. IP camera type: Click on the IP Camera type to select the Manufacturer and model number of the integrated IP camera. Manual: Click IP camera type, list Honeywell, Kodak, Tiandy, Aipu-waton, ACTi, WoshiDA IP camera etc.

  • Page 19: Auto Hd

    BT-IPC5100 PLUS Multi-functions CCTV Tester User Manual the dome camera, then the IPC tester can test. After setting the parameter, the tester can control the PTZ and lens. 5.2 Auto HD Automatically recognize type and resolution of TVI/CVI/AHD camera and display image.
  • Page 20 BT-IPC5100 PLUS Multi-functions CCTV Tester User Manual The PTZ address in the tester must be consistent with the dome camera or decoder, then the IPC tester can test. After setting the parameter, the tester can control the PTZ and lens.
  • Page 21 BT-IPC5100 PLUS Multi-functions CCTV Tester User Manual （2）Coaxial camera menu setting Input calling dome camera menu address code, you can press the key “Enter” or click the icon to call the dome camera menu. set the parameters by...

  • Page 22: Tvi Camera Test

    BT-IPC5100 PLUS Multi-functions CCTV Tester User Manual 5.4 TVI camera test When HD TVI signal input, the tester will display the image resolution at the top of the screen. Double-taps on the screen to make the image displayed full screen.

  • Page 23: Ahd Camera Test

    BT-IPC5100 PLUS Multi-functions CCTV Tester User Manual 5.5 AHD camera test When AHD signal input, the tester will display the image resolution at the top of the screen. Double-taps on the screen to make the image displayed full screen. The tester supports resolution up to 3840 x 2160P 15 FPS.

  • Page 24: Xvr Display

    BT-IPC5100 PLUS Multi-functions CCTV Tester User Manual 6. XVR display 6.1 HDMI IN When tester receives HDMI input image, the top tool bar shows the resolution of this image. You can select "resolution" to set resolution in the setting menu. Tap screen by twice, full image display.
  • Page 25 BT-IPC5100 PLUS Multi-functions CCTV Tester User Manual (2) Video record When you click the "Record" icon, video starts recording. A red recording icon appears on the screen and begins to flash and a timer appears indicating the time elapsed for the video. Click on the "Record" icon again to stop recording and save the video file to the SD card.
  • Page 26 BT-IPC5100 PLUS Multi-functions CCTV Tester User Manual To rename or delete an image, click and hold on the file until this screen below appears Click to close and return to PTZ controller. (4) Recorded video playback Click the "Playback" icon to view your recorded videos. Tap on the video file image you want to watch.

  • Page 27: Vga In

    BT-IPC5100 PLUS Multi-functions CCTV Tester User Manual 6.2 VGA IN When tester receives VGA input image, the top tool bar shows the resolution of this image. Tap screen by twice, full image display. Support resolution as bellow： 1920x1200P 60FPS, 1920x1080P 60FPS, 1792x1344P 60FPS, 1680x1050P 60FPS,...
  • Page 28 BT-IPC5100 PLUS Multi-functions CCTV Tester User Manual (2) PING Test Application: PING testing is the most conventional network debugging tools. It is used for testing if the connected. IP camera or other network equipment’s Ethernet port is working normally and the IP address is correct.

  • Page 29: Rj45 Cable Tdr Test

    BT-IPC5100 PLUS Multi-functions CCTV Tester User Manual “Refresh” button to check your Client list. (6) Trace route It is used to determine path of the IP packet access target. Note: Trace route testing results only for reference, for accurate test route tracking, Pls use professional Ethernet tester.

  • Page 30: Cable Tester

    BT-IPC5100 PLUS Multi-functions CCTV Tester User Manual Single test: Test cable status, length and attenuation. Repeat test: Continue to test cable status, length and attenuation. Status: After link up, screen display “online”, if not link up or open circuit, screen display “open circuit”, if cable pair is short circuit, screen display “short circuit”.
  • Page 31 BT-IPC5100 PLUS Multi-functions CCTV Tester User Manual Test LAN cable or telephone cable. Connect LAN cable or telephone cable with the CCTV tester and cable tester. And then the connecting status, cable type and the sequence of wires as well as the serial number of the cable tester kit will be displayed.

  • Page 32: Poe Power / Dc12V 3A Power Output

    BT-IPC5100 PLUS Multi-functions CCTV Tester User Manual through cable and crossover cable. And can create the testing report. 7.4 PoE / DC12V 3A power output When the tester is turned on, the DC12V power output functions are automatically turned on.

  • Page 33: Update

    BT-IPC5100 PLUS Multi-functions CCTV Tester User Manual 7.5 Update Copy the downloaded update file to SD card "update" directory, if no this directory, please create one. Click the icon to open the Update menu. Select “Local Update” to update via the SD card or select “Online Update”...

  • Page 34: System Setting

    BT-IPC5100 PLUS Multi-functions CCTV Tester User Manual FTP server You can choose internal or external SD card. Other operation details, Pls refer to FTP settings. 7.7 System Setting...
  • Page 35 BT-IPC5100 PLUS Multi-functions CCTV Tester User Manual Language: Select your desired language: English, Korean, Russian, Italian, Polish, Spanish, French, Japanese, Deutsch, Turkish, Portuguese, Czech etc Typewriting: You can select typewriting or install other typewriting: Date/Time: Set the Date/time of the IP tester.
  • Page 36 BT-IPC5100 PLUS Multi-functions CCTV Tester User Manual Wi-Fi hotspot: Input “SSID” name and “password”, and then click “ok” to create Wi-Fi hotspot. Brightness: Set the desired brightness of the IP tester and adjust the sleep time settings. Volume: Set volume level SD Card: Displays SD Card Capacity.

  • Page 37: Specifications

    BT-IPC5100 PLUS Multi-functions CCTV Tester User Manual several seconds to uninstall. Screen display rotation: Click on “Screen Rotation” to flip the IP tester’s display 180 degrees. This function is very convenient for the user to connect the LAN cable on the bottom of the unit without having to flip the unit itself.
  • Page 38 BT-IPC5100 PLUS Multi-functions CCTV Tester User Manual Network port 10/100/1000M auto adjust, RJ45 WIFI Built in WIFI, speeds 150M, display wireless camera image H.265 Main stream New hardware decoding, 4K H.265/H.264 camera image test display by mainstream testing IP discovery...
  • Page 39 BT-IPC5100 PLUS Multi-functions CCTV Tester User Manual 2048x1536p 18/25/30fps, 1920x1080p 25/30fps, 1280x720p 25/30/50/60fps, UTC control and call OSD men 1 channel AHD input（BNC interface）, resolution support 8MP AHD camera test, AHD video signal 3840 x 2160P 15 FPS, 2592x1944p 12.5/20fps,...
  • Page 40 BT-IPC5100 PLUS Multi-functions CCTV Tester User Manual Audio test 1 channel audio signal input Support RS485 control, Baud 600-115200bps, Compatible with PTZ control more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc Captures and analyzes the command data from controlling...
