Summary of Contents for BEEK BT-LT1200

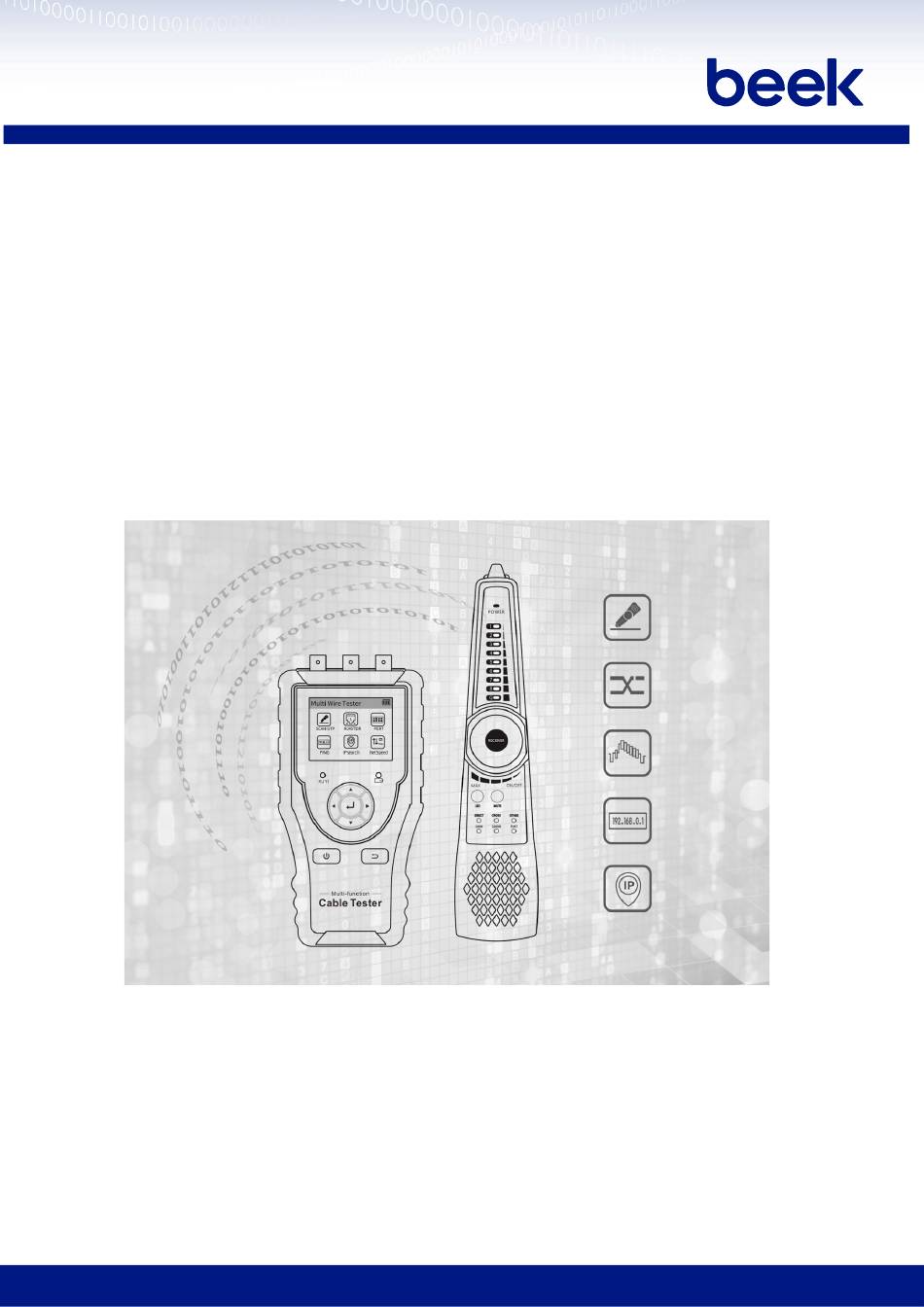

- Page 1 BT-LT1200 Multi Function LAN Cable Tester User Manual...
- Page 2 BT-LT1200 Multi Function LAN Cable Tester User Manual Thank you for purchasing the Cable Tester. Please read the manual before using the Cable Tester and use properly. For using the Cable Tester safely, please first read the「Safety Information」carefully in the manual.
-
Page 3: Table Of Contents
BT-LT1200 Multi Function LAN Cable Tester User Manual Content 1. Safety information..............................1 2. Production Introduction ............................2 2.1 Feature ................................ 2 2.2 Packing list ..............................2 2.3 Interface and Function Introduction ......................3 3. Operation ................................6 3.1 Installing the Battery ........................... 6 3.2 Auto power off function .......................... -
Page 4: Safety Information
BT-LT1200 Multi Function LAN Cable Tester User Manual 1. Safety information ◆ The cable tester is intended to use in compliance with the local rules of the electrical usage and avoid to apply at the places which are inapplicable for the use of electrics such as hospital, gas station etc. -
Page 5: Production Introduction
BT-LT1200 Multi Function LAN Cable Tester User Manual 2. Production Introduction 2.1 Feature 2.4 inch TFT-LCD screen, 320x240 resolution ● Secondary code digital mode, decisively rejects noise and false signals, locate cables quickly and easily. ● Advanced UTP cable test, test UTP cable's sequence, type and remote kit, quickly detect the near-end, mid-end ●... -
Page 6: Interface And Function Introduction
BT-LT1200 Multi Function LAN Cable Tester User Manual 2.3 Interface and Function Introduction 1) Cable tester Interfaces : Telephone status indicator The charge indicator: It lights red while the battery is being charged. As the charging is complete, the indicator turns off automatically... - Page 7 BT-LT1200 Multi Function LAN Cable Tester User Manual Left Interface: Right Interface: Top Interface: RJ11 cable tracer and status test port UTP cable test, cable tracer and switch test port DC 5V 1A charging port Network cable test port (Ping/ Port flicker/ IP scan) RJ45 cable TDR/ Network link status test port TDR 2.0 test port (RJ45)
- Page 8 BT-LT1200 Multi Function LAN Cable Tester User Manual 2) Cable tracer (Receiver) Interfaces and functions： LED light Power Indicator UTP cable sequence / signal strength indicator Shielded layer continuity indicator Earphone jack UTP cable test port LED light switch 100M /1000M indicator...
-
Page 9: Operation
BT-LT1200 Multi Function LAN Cable Tester User Manual Bottom interface PD Powered test port (detect whether the power output of the PoE switch pins is normal.) Note: Receiver port continuity detection only supports the local end, does not support the remote end. Emitter can support the near end, middle end and far end port detection. -
Page 10: Cable Tester
BT-LT1200 Multi Function LAN Cable Tester User Manual 4. Cable tester 4.1 UTP cable test Connect the network cable into the cable tester’s RJ45 port, the BNC cable or RJ11 telephone line connect to the cable tester’s BNC or RJ11 port. If no connector cable, can use alligator clips to clip the bare copper wire. -
Page 11: Utp Cable Test
BT-LT1200 Multi Function LAN Cable Tester User Manual continuity of the line of the RJ45 cable connector or within 1 meter from RJ45 cable connector. As shown on the right, If the light is on, it means it is connected and vice versa. - Page 12 BT-LT1200 Multi Function LAN Cable Tester User Manual Can identify cable’s type through the “Direct/Cross/other” indicator. And also can identify the cable whether suitable 100M or Gigabit cable. Can display the remote number(Default is 255) The 1-8 indicators on the cable tracer will flash in sequence according to the network cable sequence, will display the cable type through the “Direct/Cross/other”...
-
Page 13: Short Circuit Detection
BT-LT1200 Multi Function LAN Cable Tester User Manual 4.1.3 Short circuit detection The cable not connect wire receiver end: If connect cable short circuit, the short circuit line indicator will flash. In the left side of interface, the “√” means the RJ45 cable connector of cable tester and wire receiver is normal, the “x”... -
Page 14: Rj45 Cable Tdr Test
BT-LT1200 Multi Function LAN Cable Tester User Manual In this mode, connect one end of cable to the LAN port of cable tester, and the other end of cable disconnect to the switch, also can detect the short circuit status of network cable. -
Page 15: Tdr 2.0 Test (Optional)
BT-LT1200 Multi Function LAN Cable Tester User Manual 4.3 TDR 2.0 Test (Optional) Note: The testing cable can't be connected to any equipment, otherwise it will damage the tester. Connect Alligator clip cable to the TDR port, and the cable must connect well before testing, otherwise it will influence the accuracy. -
Page 16: Network Test
BT-LT1200 Multi Function LAN Cable Tester User Manual When select user-defined to test, please press key to adjust the cable speed. User-defined calibration: Prepare one piece calibrated cable, the cable length must be over 50 meters, the better length is about 100-200 meters. Enter cable type interface, and select “User-defined”, total has 4 groups user- defined. -
Page 17: Ping
BT-LT1200 Multi Function LAN Cable Tester User Manual Press "Start"key, the IP tester sends a unique signal to make the connected LAN port of the switch flash. If the tester and PoE switch are connected well, the LAN port of POE switch flash at special frequency, If not, no any changes on the LAN port. -
Page 18: Ip Search
BT-LT1200 Multi Function LAN Cable Tester User Manual IP camera or other network equipment's Ethernet port is working normally and the IP address is correct. It's normal that the first data packet will be lost when test start. 5.3 IP search Connect a network cable to the meter's “PING/Port flashing”... -
Page 19: Video Level Meter Test
BT-LT1200 Multi Function LAN Cable Tester User Manual 6. Video level meter test (Optional) The Level value is an important indicator reflecting the signal quality and strength of the coaxial HD video image. The meter detects the peak, sync and burst level of TVI, CVI, AHD, CVBS video signals in real time. Connect the CVI/TVI/AHD/CVBS camera to tester’s “LEVEL”... -
Page 20: Pd Powered Detected
BT-LT1200 Multi Function LAN Cable Tester User Manual 7.2 PD powered detected PoE switch or PSE power supply device connected to the “PD” port of the wire receiver, if the indicator light is on, it means PoE voltage output working normal. There are 2 indicators lights of the “PD” port, when testing the pins used of PoE switch for power supply, if 1236 indicator light is ON, it means PoE switch supply power through Pin 1236. -
Page 21: Specification
BT-LT1200 Multi Function LAN Cable Tester User Manual light flash is ringing, the indicator light on is standby, the indicator light off is off-hook. Positive/negative polarity detection: Turn off the cable tester, the red and black alligator clip of RJ11 to clip the cable. - Page 22 BT-LT1200 Multi Function LAN Cable Tester User Manual...
