- Page 1 RSU82 User Manual Hardware Version: HV2.0 ZTE CORPORATION NO. 55, Hi-tech Road South, ShenZhen, P.R.China Postcode: 518057 Tel: +86-755-26771900 Fax: +86-755-26770801 URL: http://ensupport.zte.com.cn E-mail: support@zte.com.cn...
- Page 2 ZTE CORPORATION is prohibited. Additionally, the contents of this document are protected by contractual confidentiality obligations. All company, brand and product names are trade or service marks, or registered trade or service marks, of ZTE CORPORATION or of their respective owners.
- Page 3 Revision No. Revision Date Revision Reason R1.1 2012–01–30 1.1 Position of the RSU82 in the Radio Network 1.3 Services and Functions 1.4 Product Specifications 2.1 Hardware Architecture 3.1 Physical Parameters 3.2 Radio Performance Specification 4.2 Installing RSU82 R1.0 2011–11–30 The first edition Serial Number: SJ-20111021104623-005 Publishing Date: 2012-12-20 (R1.5)
-
Page 5: Table Of Contents
Contents About This Manual ..................I Chapter 1 Product Introduction ..............1-1 1.1 Position of the RSU82 in the Radio Network ............1-1 1.2 Product Appearance................... 1-2 1.3 Services and Functions ..................1-4 1.4 Product Specifications ..................1-6 1.5 External Interfaces ..................... 1-7 1.6 Indicators...................... - Page 6 SJ-20111021104623-005|2012-12-20 (R1.5) ZTE Proprietary and Confidential...
-
Page 7: About This Manual
This manual provides information about the RSU82, including the product introduction, system principle, technical specifications, and hardware installation. Intended Audience This manual is applicable to all personnel who work with the RSU82. What Is in This Manual This manual contains the following chapters:... - Page 8 SJ-20111021104623-005|2012-12-20 (R1.5) ZTE Proprietary and Confidential...
-
Page 9: Chapter 1 Product Introduction
Indicators ........................1-8 1.1 Position of the RSU82 in the Radio Network The RSU82 is the indoor remote Radio Frequency (RF) unit of the ZTE Base Transceiver Station (BTS). The RSU82 and a Base Band Unit (BBU) form a complete BTS/NodeB, implementing radio transmission in the covered area, controlling radio channels and realizing the communication with the Base Station Controller (BSC/RNC). -
Page 10: Product Appearance

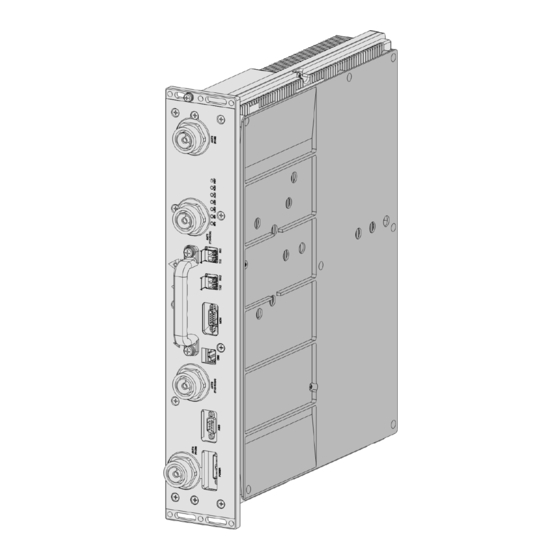

RSU82 User Manual 1.2 Product Appearance The RSU82 is an indoor multi-carrier RF unit. The RSU82 is designed based on multi-carrier digital intermediate frequency technology. It supports dual-transmission/four-reception of data signals, and supports the evolution to UMTS/LTE. Figure 1-2 illustrates the RSU82 appearance. -
Page 11: Figure 1-2 Rsu82 Appearance
Chapter 1 Product Introduction Figure 1-2 RSU82 Appearance SJ-20111021104623-005|2012-12-20 (R1.5) ZTE Proprietary and Confidential... -
Page 12: Services And Functions
RSU82 User Manual 1.3 Services and Functions Services The RSU82 works with BBUs to provide the following services: Full Rate (FR) voice service. à Enhanced Full Rate (EFR) voice service. à Half Rate (HR) voice service. à Adaptive Multiple Rate (AMR) voice service. - Page 13 Functions Common Functions The RSU82 operates with a BBU to constitute an integrated BS8800 or BS8900. The RSU82 forwards RF signals from antennas to the BBU for further processing. The RSU82 provides the following functions by connecting to the BBU: Terminal access and RF link transmission through antennas, including RF à...
-
Page 14: Product Specifications
Supports multi-mode configuration of GU, GL, and CL. à The air interfaces comply with the 3GPP and 3GPP2 series multi-mode à standards. 1.4 Product Specifications For a description of the RSU82 specifications and systems, refer to Table 1-1. Table 1-1 Specification and System Specification System... -
Page 15: External Interfaces
Carrier, 2 × 60 W 1.5 External Interfaces Figure 1-3 illustrates the RSU82 external interfaces. Figure 1-3 RSU82 External Interfaces For a description of the RSU82 external interfaces, refer to Table 1-2. SJ-20111021104623-005|2012-12-20 (R1.5) ZTE Proprietary and Confidential... -
Page 16: Indicators
RSU82 interface of the lower-level cascading RSU82. Reset button PE Grounding point Grounding point RSU82 Protective grounding interface 1.6 Indicators For a description of the indicators on the RSU82 panel, refer to Table 1-3. SJ-20111021104623-005|2012-12-20 (R1.5) ZTE Proprietary and Confidential... -
Page 17: Table 1-3 Indicators On The Rsu82 Panel
Chapter 1 Product Introduction Table 1-3 Indicators on the RSU82 Panel Indicator Color Meaning Description Green Running Slowly flashing (1 Hz): The system is operating indicator properly. Lit: The system is being reset, started, or loaded. Unlit: The power supply is switched off or the system self-detection fails. - Page 18 RSU82 User Manual Indicator Color Meaning Description Red, Indicator of Lit (green): RF output is normal. Green the second- Lit (red): There are alarms on the standing channel wave of antenna. transmission Unlit: There is no RF output or the power link status, and amplifier is switched off.
-
Page 19: Chapter 2 System Architecture
(R05TRB), power amplifier subsystem (R05PAA), power subsystem (PPC), and the RF front-end subsystem (R05FLA). Figure 2-1 Hardware Architecture For a description of the subsystem functions of the RSU82, refer to Table 2-1. Table 2-1 Description for the Subsystem Functions of the RSU82... -
Page 20: Software Architecture
RSU82 User Manual 2.2 Software Architecture The software subsystem of the RSU82 includes the software module at the bottom layer of a board, L2/L3 based on the Linux operating system, and the application software, as shown in Figure 2-2. Figure 2-2 Software Architecture... -
Page 21: Chapter 3 Technical Specifications
Relative storage humidity 10% to 100% Solar radiation 1120 W/m Air speed 50 m/s Atmospheric pressure 70 Kpa to 106 Kpa Waterproof and dustproof level IP65 Oscillation index Complies with the ETS1300019 and NEBS standards SJ-20111021104623-005|2012-12-20 (R1.5) ZTE Proprietary and Confidential... -
Page 22: Radio Performance Specifications
RSU82 User Manual Item Specification Heat dissipation mode Self-cooling Noise level No noise Reliability Item Specification Availability 99.999689% MTBF ≥150,000 hours MTTR 0.5 hour System service interruption time Whole system interruption ≤1.632 minutes/year 3.2 Radio Performance Specifications Capacity Specifications Item... - Page 23 -126.5 dBm (single antenna) -129.2 dBm (double antenna) RF Specifications (LTE) Item Specification Operating band DD/1.8 MHz/2.6 MHz Output power at the cabinet top 2×40 W/2×40 W/2×60 W Static receiving sensitivity -105 dBm/single transmit/20 M bandwidth SJ-20111021104623-005|2012-12-20 (R1.5) ZTE Proprietary and Confidential...
- Page 24 RSU82 User Manual This page intentionally left blank. SJ-20111021104623-005|2012-12-20 (R1.5) ZTE Proprietary and Confidential...
-
Page 25: Chapter 4 Hardware Installation
The handle of the RSU82 is used for installation/uninstallation in the cabinet rather than transportation. Wear an ESD wrist strap to hold the handle of the RSU82 with one hand, and hold the bottom of the RSU82 with the other hand to slowly push the RSU82 into the... -
Page 26: Cables Installation
– End of Steps – 4.3 Cables Installation 4.3.1 Installing Power Cables This procedure describes how to install power cables for all modules in the RSU82. –48 V DC input power is provided. Prerequisite The ESD wrist strap is worn. -
Page 27: Installing A Monitoring Cable
– End of Steps – 4.3.2 Installing a Monitoring Cable This procedure describes how to install a monitoring cable for the RSU82. When multiple RSU82s are used, the monitoring cable should be connected to the RSU82 at the right-most side of the cabinet. Prerequisite The ESD wrist strap is worn. -
Page 28: Installing An Antenna Feeder
RSU82 User Manual Steps Connect the monitoring cable's plug to the MON interface on the RSU82, as shown in Figure 4-3. Figure 4-3 Installing the Monitoring Cable – End of Steps – 4.3.3 Installing an Antenna Feeder This procedure describes how to install an antenna feeder. When the main feeder uses a 7/8”... -
Page 29: Figure 4-4 Installing The Antenna Feeder
Chapter 4 Hardware Installation Prerequisite The ESD wrist strap is worn. The RSU82 is installed successfully. Steps Connect the antenna feeder to the RF interface on the RSU82, as shown in Figure 4-4. Figure 4-4 Installing the Antenna Feeder SJ-20111021104623-005|2012-12-20 (R1.5) -
Page 30: Installing An Sfp High-Speed Cable
RSU82 User Manual Note: If the RSU82 is installed in the BS8800 cabinet, the feeder is led out from the cabling trough at the cabinet top. If the RSU82 is installed in the BS8900 cabinet, the feeder is led out from the cabling hole at the cabinet bottom. -
Page 31: Figure 4-5 Installing The Sfp High-Speed Cable
Chapter 4 Hardware Installation Figure 4-5 Installing the SFP High-Speed Cable – End of Steps – SJ-20111021104623-005|2012-12-20 (R1.5) ZTE Proprietary and Confidential... - Page 32 RSU82 User Manual This page intentionally left blank. SJ-20111021104623-005|2012-12-20 (R1.5) ZTE Proprietary and Confidential...
-
Page 33: Chapter 5 International Authentication
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. SJ-20111021104623-005|2012-12-20 (R1.5) ZTE Proprietary and Confidential... - Page 34 RSU82 User Manual This page intentionally left blank. SJ-20111021104623-005|2012-12-20 (R1.5) ZTE Proprietary and Confidential...
-
Page 35: Figures
Figures Figure 1-1 Position of the RSU82 in the Radio Network ..........1-1 Figure 1-2 RSU82 Appearance ................. 1-3 Figure 1-3 RSU82 External Interfaces............... 1-7 Figure 2-1 Hardware Architecture ................2-1 Figure 2-2 Software Architecture................2-2 Figure 4-1 Installing the RSU82 ................4-2 Figure 4-2 Installing Power Cables ................ - Page 36 Figures This page intentionally left blank. SJ-20111021104623-005|2012-12-20 (R1.5) ZTE Proprietary and Confidential...
-
Page 37: Tables
Tables Table 1-1 Specification and System ................1-6 Table 1-2 RSU82 External Interfaces ................ 1-8 Table 1-3 Indicators on the RSU82 Panel..............1-9 Table 2-1 Description for the Subsystem Functions of the RSU82......2-1 SJ-20111021104623-005|2012-12-20 (R1.5) ZTE Proprietary and Confidential... - Page 38 Tables This page intentionally left blank. SJ-20111021104623-005|2012-12-20 (R1.5) ZTE Proprietary and Confidential...
-
Page 39: Index
Index external interfaces ........ 1-7 Hardware Architecture......2-1 Indicators ..........1-8 position in network........ 1-1 Product Appearance......1-2 Services and Functions ......1-4 Software Architecture ......2-2 specifications ........1-6 SJ-20111021104623-005|2012-12-20 (R1.5) ZTE Proprietary and Confidential... - Page 40 Index This page intentionally left blank. SJ-20111021104623-005|2012-12-20 (R1.5) ZTE Proprietary and Confidential...
-
Page 41: Glossary
- Discontinuous Transmission - Enhanced Full Rate EVDO - Evolution-Data Optimized FPGA - Field Programmable Gate Array - Full Rate GPRS - General Packet Radio Service - Half Rate HSDPA - High Speed Downlink Packet Access SJ-20111021104623-005|2012-12-20 (R1.5) ZTE Proprietary and Confidential... - Page 42 RSU82 User Manual HSPA - High Speed Packet Access HSUPA - High Speed Uplink Packet Access MBMS - Multimedia Broadcast/Multicast Service MTBF - Mean Time Between Failures MTTR - Mean Time To Recovery - Operation, Administration and Maintenance - Operation Support Subsystem...
