Quick start guide UP
Parts List
• Top cover with Logo Plate
• Middle Case
• Bottom Base
• Vesa Mount Plate
• Hex Standoff
• Screw
Not included with the kit, you may need to prepare:
• UP squared board.
• Small screwdriver.
for support and more information about your UP board
EP-CHUPSMTVAUPS

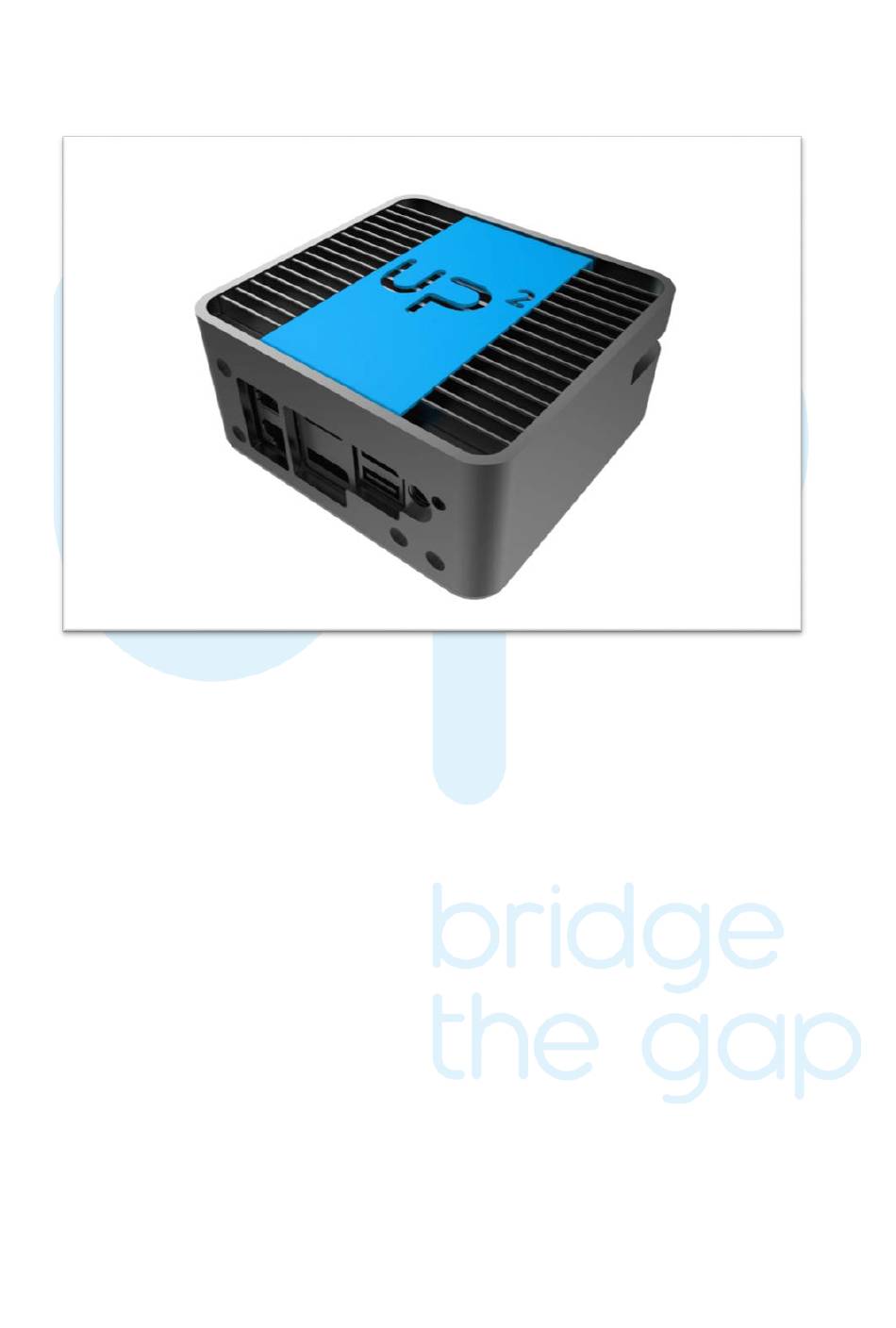

Chassis - EP-CHUPSMTVAUPS
2
1pc
1pc
1pc
1pc
4pcs
10pcs
As always, go check out up-community.org
Advertisement
Table of Contents
Related Manuals for Aaeon UP2 EP-CHUPSMTVAUPS
Summary of Contents for Aaeon UP2 EP-CHUPSMTVAUPS
- Page 1 EP-CHUPSMTVAUPS Quick start guide UP Chassis - EP-CHUPSMTVAUPS Parts List • Top cover with Logo Plate • Middle Case • Bottom Base • Vesa Mount Plate • Hex Standoff 4pcs • Screw 10pcs Not included with the kit, you may need to prepare: •...
- Page 2 EP-CHUPSMTVAUPS Assembly step 1. Depart the top cover and middle case in the diagonal direction. 2. Put the top cover on the operation desk...
- Page 3 EP-CHUPSMTVAUPS 3. Peel of the blue protection film of thermal pad 4. Remove the 4 screws to release the heatsink from the UP2 board...
- Page 4 EP-CHUPSMTVAUPS 5. Carefully pull the cooler from the board 6. Start to screw 4 Hex Stand-offs on the PCB.
- Page 5 EP-CHUPSMTVAUPS 7. Fasten the PCB with top cover by the hex standoffs through the threads nut on the top cover. 8. Place the board into the middle case, check well with the 4 sides exactly that match the IO sides.
- Page 6 EP-CHUPSMTVAUPS 9. Fasten the bottom plate with PCB by screws x 4pcs 10. Fasten the bottom plate with top cover by screws x 4pcs...
- Page 7 EP-CHUPSMTVAUPS 11. Fasten the Vesa Mount with pre-assembled case by screws x 2pcs Exploded view including all components...
