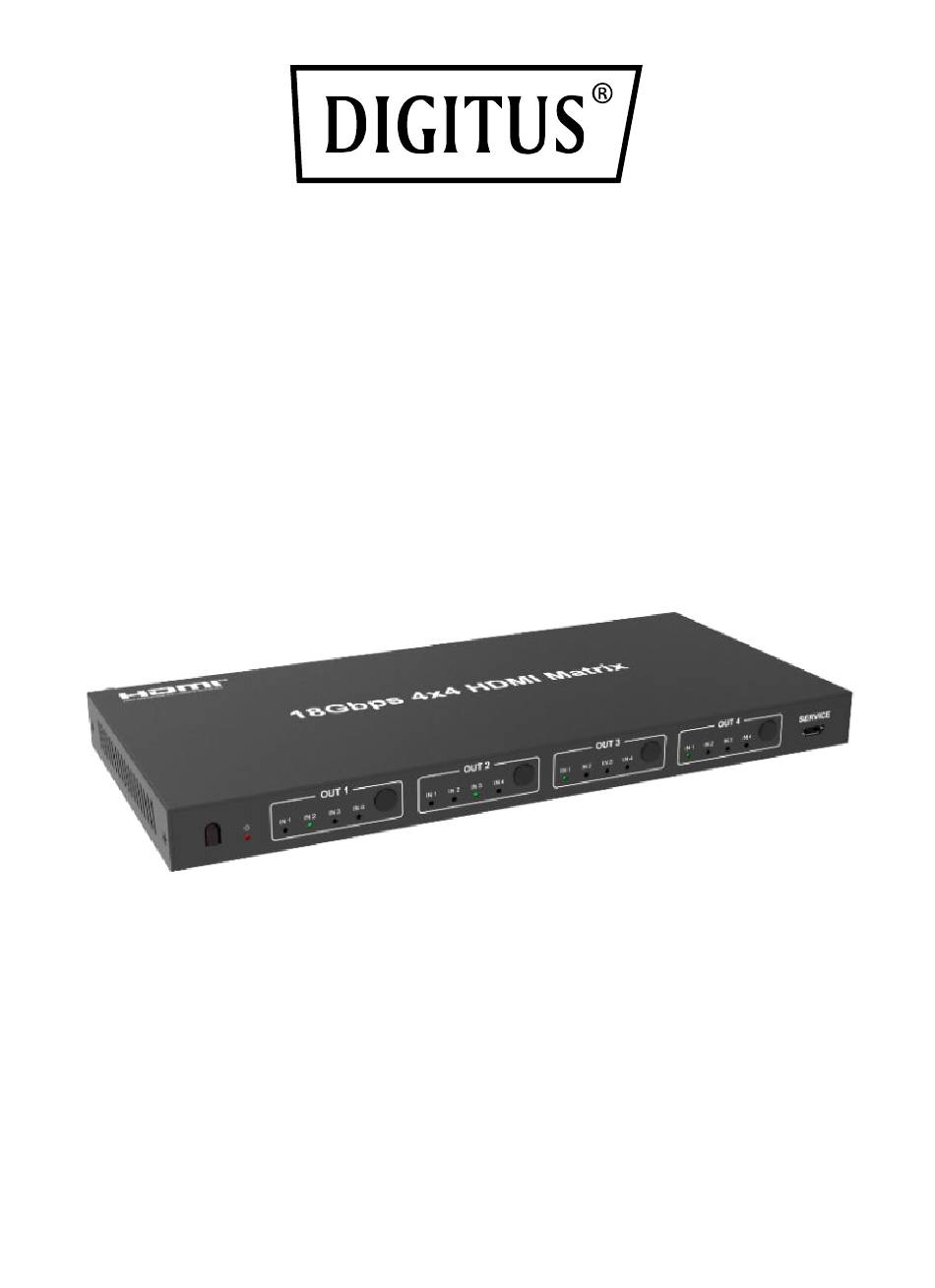

- Page 1 4x4 HDMI Matrix Switch, 4K/60Hz Manual DS-55511...
-
Page 2: Table Of Contents
5.2. Rear Panel ................8 6. Remote Control ............... 9 1. Introduction With the DIGITUS® 4x4 HDMI Matrix Switch, you can choose between 4 HDMI signal sources and output signals to 4 different HDMI outputs independently or simultaneously. All HDMI ports can be assigned to different HDMI outputs or all HDMI outputs as desired. -
Page 3: Main Features
2. Main Features • Supports 4K2K/60Hz (4:4:4) • Video bandwidth: 18 Gbps • HDCP 2.2 / 1.4 • HDMI 2.0 • EDID management • Supports downscaling of 4K contents on Full HD (1080p) displays • HDR, HDR10, HDR10+, Dolby Vision •... -
Page 4: Specification
4. Specification Technical HDMI Compliance HDMI 2.0b HDCP HDCP 2.2/1.x Video Bandwidth 594MHz/18Gbps Video Resolution 480i ~1080p, 50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz Color Depth 8-bit, 10-bit, 12-bit (1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2 / 4:2:0) HDMI Audio Formats LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio ESD Protection... -
Page 5: Operation Controls And Functions
Mechanical Housing Metal Enclosure Color Black Dimensions 220mm (W) × 105mm (D) × 19mm (H) Weight 535g Power Supply Input: AC100 - 240V 50/60Hz Output: DC 12V/2.5A (US/EU standards, CE/FCC/UL certificated) Power Consumption 11.04W (max) Operating 0°C ~ 40°C / 32°F ~ 104°F Temperature Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F... - Page 6 Name Function Description IR receive window Power LED The red LED illuminates when the device is working or on standby. OUT 1 Button: Short press to switch the input selected by OUT 1; Long press for 3s to turn on/off the downscaler corresponding to OUT 1.
- Page 7 OUT 3 Button: Short press to switch the input selected by OUT 3; Long press for 3s to turn on/off the downscaler corresponding to OUT 3. LED: When switching to the corresponding input source, the corresponding input LED illuminates green; Otherwise, the LED will not light up.
-
Page 8: Rear Panel
5.2. Rear Panel Name Function Description INPUT Connect to HDMI source device such as DVD player or PC. OUTPUT Connect to HDMI display device such as TV or Projector. EDID EDID SWITCH control. 0000 1080P, Stereo Audio 2.0 0001 1080P, Dolby/DTS 5.1 0010 1080P, HD Audio 7.1 0011 4K2K30_444, Stereo Audio 2.0 0100 4K2K30_444, Dolby/DTS 5.1... -
Page 9: Remote Control
6. Remote Control Power button: Press this button to power on the device or put it into standby mode. 1/2/3/4: Press buttons 1~4 to select the required source for Output 1 : Select the last or next input channel among 1/2/3/4, to select the required source for Output1. - Page 10 Disclaimer The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. Hereby ASSMANN Electronic GmbH declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address.
