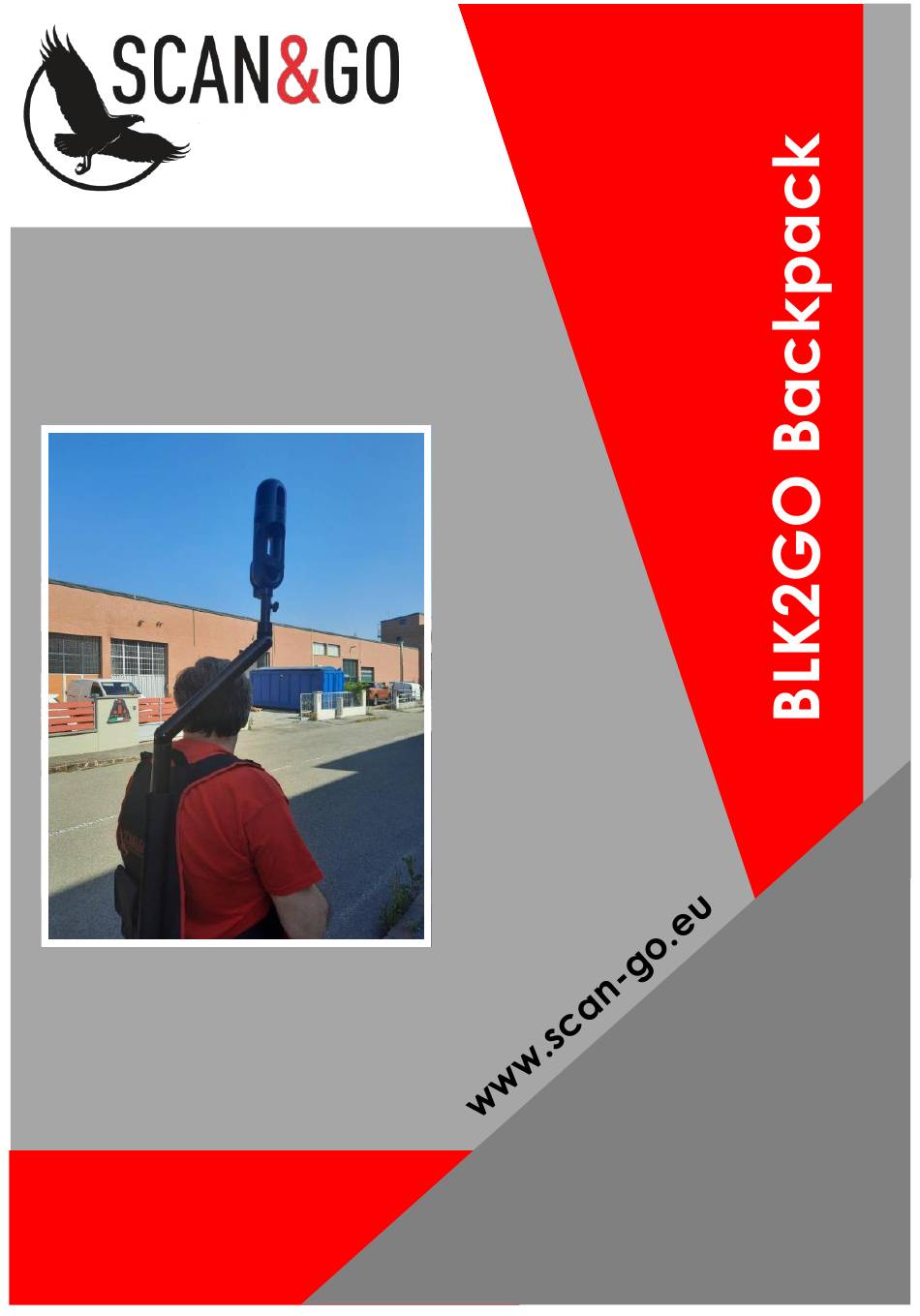

- Page 1 Scan&Go srl Via della Tecnica 34 A/B - 41051 USER MANUAL Castelnuovo Rangone (MO) - Italy Cell. +39 3924627285 info@scan-go.eu June 2021...
- Page 2 BLK2GO Backpack This Backpack is designed to be used with BLK2GO laser scanner comfortably on the operator's shoul- ders, thus leaving the hands free. The support is made of aluminum tubes, the incli- nation can be adjusted by the operator allowing to...
- Page 3 BLK2GO Backpack Base for initialization Correct position of the adjustable support ATTENTION: the locking strap must be positioned above the knob and tightened very well...
- Page 4 BLK2GO Backpack Install the upper part of the support by using the supplied knobs. Adjust the inclination of the tube and the support The use of the above part of the support for scanning without the Backpack...
- Page 5 BLK2GO Backpack Place the scanner with BLK2GO adapter and standard Leica pin on the base for initializa- tion of the scanner. Fix the scanner on the support and start walking when scanning Thanks to the quick release the scanner can be easily...
- Page 6 Made in Italy...
- Page 8 Made in Italy...
