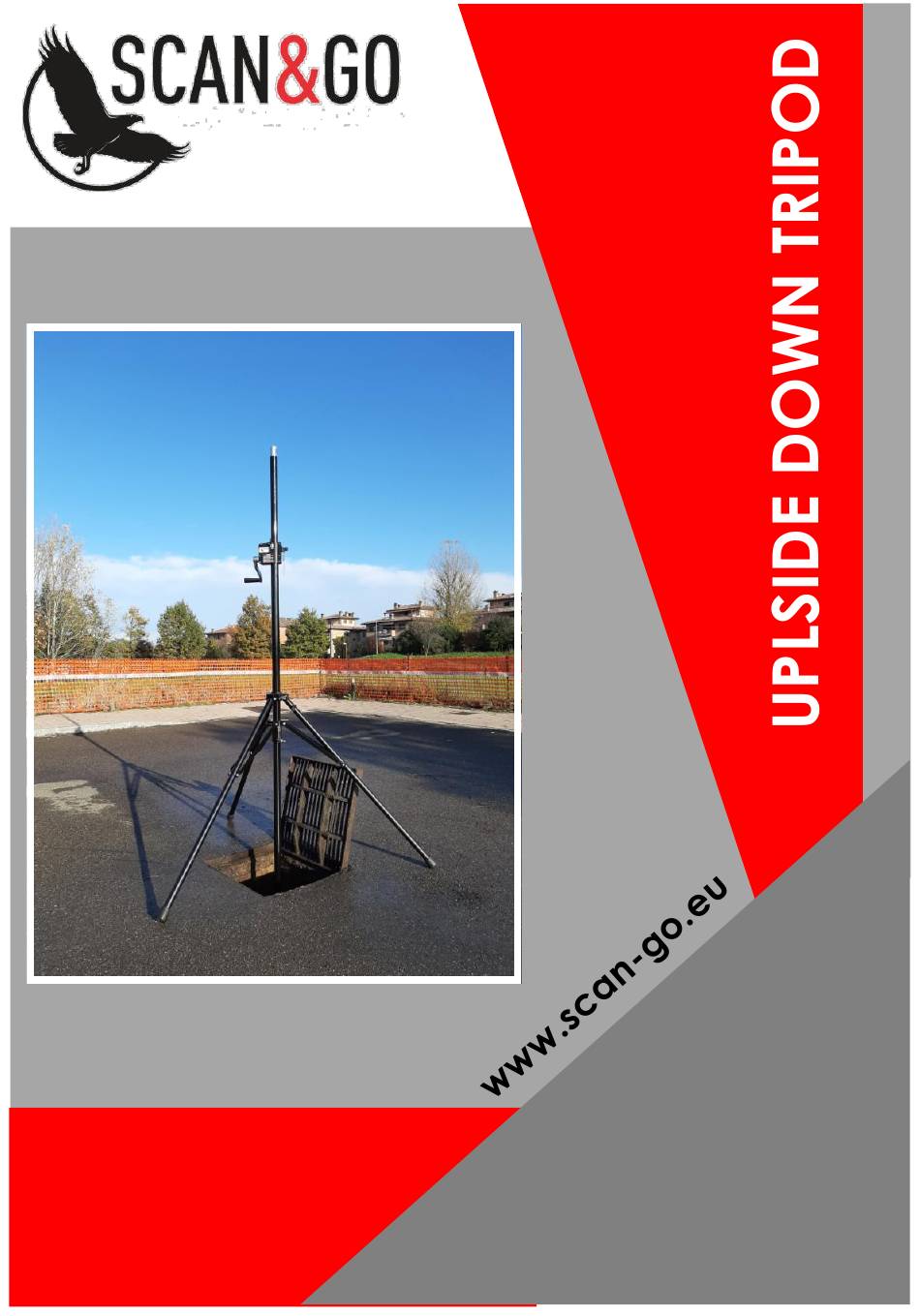

- Page 1 SCAN&GO srl Via della Tecnica 34 A/B - 41051 USER MANUAL Castelnuovo Rangone (MO) - Italy Cell. +39 3924627285 info@scan-go.eu December 2019...
- Page 2 Upside Down Tripod part number STEEL TELESCOPIC TRIPOD FOR UNDERGROUND Upside down tripod is a telescopic lifter made of painted steel, with mechanical cranck system Combines stability with great sturdiness. All metallic components (articulated parts, pressure knobs, leg braces, etc.) guarantee maximum durability and strength. It is equipped with: ...
- Page 3 DETAILS AND ACCESSORIES STRONG AND SECURE RACK SYSTEM HOLDING SCREW WITH 5/8’’ THREAD AND 3/8’’ ADAPTER DOUBLE PRESSURE KNOB TO MAKE THE EXTENDABLE POLE MORE STABLE ADJUSTABLE LEGS EXTENSIONS OF 1 METER EACH AD-EL BRAKING WHEELS SAFETY ADAPTER FARO Focus 120, X series 5006, 505010, 5016 LEICA HDS and P series...
- Page 4 INSTRUCTIONS FOR INSTALLATION AND USE First step Crank Crank stop know Block knobs Extension Insert the crank and lock with the knob Insert stop knobs without tightening them Tripod opening Lift upwards Block the position...
- Page 5 INSTRUCTIONS FOR INSTALLATION AND USE Screw the adapter into the 5/8 ”thread Use downwards terminal and insert the scanner Using the supplied Allen key, unlock the safety terminal Holding down the safety catch, slide the terminal upwards Keeping the safety lock pressed, insert the terminal into the extension and tighten the stop with the Allen key...
- Page 6 INSTRUCTIONS FOR INSTALLATION AND USE While holding down the safety catch, insert the extension and lock with the Allen key Hold down the safety lever and rotate the The safety terminal must always be crank to lower the scanner mounted at the end of the last extension used Once the desired depth is reached, lock the knobs to stiffen the structure.
- Page 7 INSTRUCTIONS FOR INSTALLATION AND USE Use upwards Unlock and remove the two terminals. Insert and lock the terminal with the 5/8 ”thread on the end of the extension. Insert and lock the extension...
- Page 8 INSTRUCTIONS FOR INSTALLATION AND USE Insert and lock the safety terminal in the lower part With the crank lift the pole up to the starting point of the red safety terminal and lock with the side knob...
- Page 9 SUMMARY TECHNICAL DATA Height when closed 130 cm Maximum Height opened 370 cm Depth of shaft with 2 included extension 120 cm Max. depth of shaft 520 cm (with 4 additional extensions of 1 meter) Maximum load 30 kg ...
- Page 10 The use in the presence of functional anomalies and discrepancies in the terms of use and safety instructions described in this manual. If something happens, request and wait for assistance from the personnel. The instructions, drawings and documentation contained in this document are of confidential technical nature, of property of the manufacturer and may not be reproduced in any manner, either wholly, or in part.
