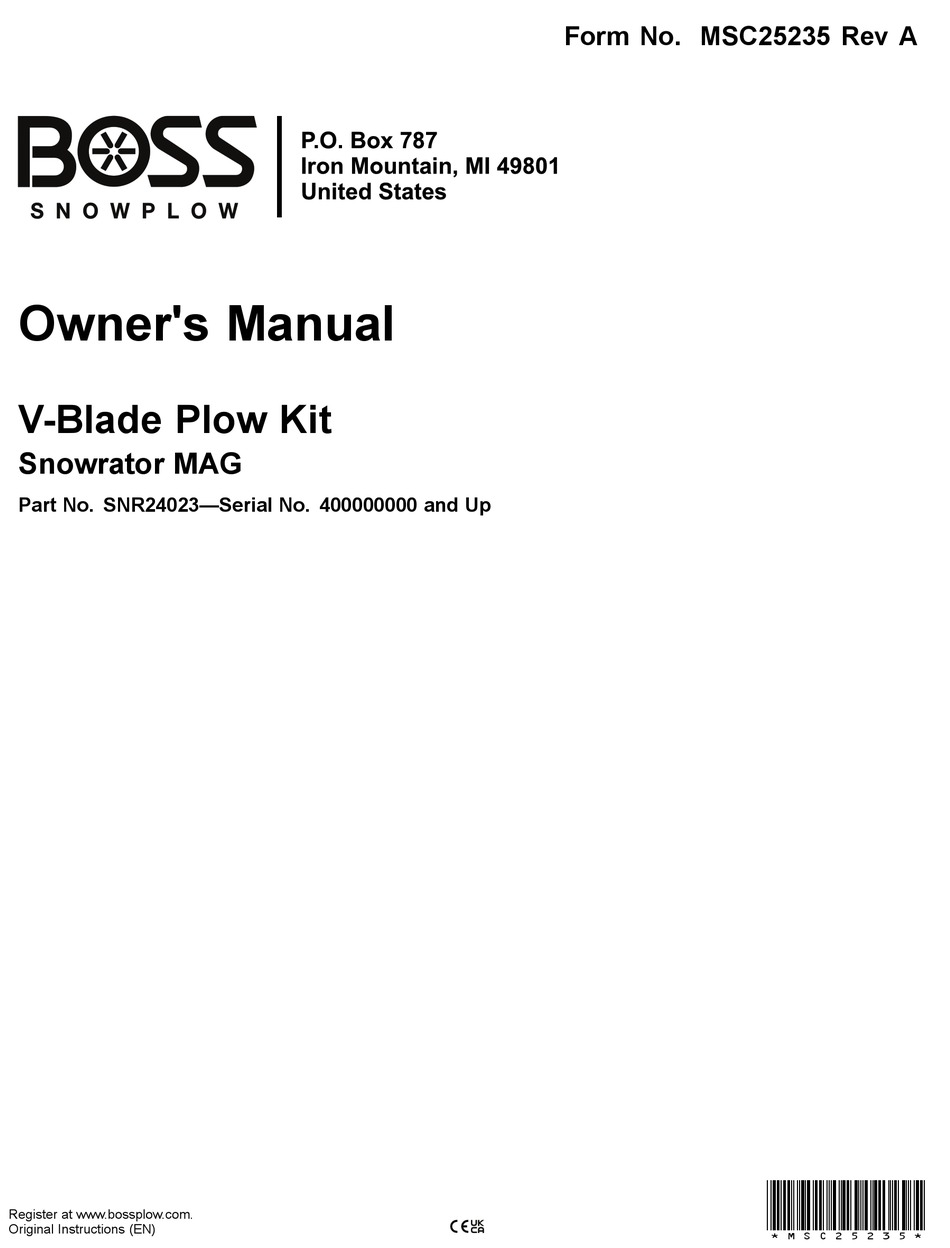

- Page 1 Form No. MSC25235 Rev A Owner's Manual V-Blade Plow Kit Snowrator MAG Part No. SNR24023—Serial No. 400000000 and Up *MSC25235* Register at www.bossplow.com. Original Instructions (EN)
- Page 2 (Figure 2), which signals a hazard that may cause The V-blade plow is intended to be used on a Boss serious injury or death if you do not follow the stand-on, multi-purpose machine. The blade is recommended precautions.
-
Page 3: Table Of Contents
Contents Safety Safety ............... 3 Improper use or maintenance by the operator or Preparation............3 owner can result in injury. To reduce the potential Operation............3 for injury, comply with these safety instructions Safety and Instructional Decals ......4 and always pay attention to the safety-alert Setup ................ -
Page 4: Safety And Instructional Decals
causes distractions; otherwise, injury or property damage may occur. • Do not operate the plow within 8 m (25 ft) of bystanders. Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. -
Page 5: Setup
Setup Mounting the Plow Park the machine on a level surface. Pull the coupler pins outward and rotate 90° to lock in the disengaged position. g373477 Figure 5 Lower the attachment coupler until the plow rests on the ground. Shut off the machine engine, wait for all moving parts to stop, ensure that the parking brake is engaged, and remove the key. -
Page 6: Product Overview
Product Overview Use the controls to move the plow in all directions to cycle the hydraulic fluid. Lower the plow and shut off the machine. Controls Check and fill the hydraulic fluid; refer to the machine Owners Manual. WARNING Hydraulic fluid escaping under pressure can penetrate skin and cause injury. - Page 7 g381688 g373488 Figure 9 Figure 12 Scoop position 1. Float 2. Lower Note: Do not plow forward in down force. g373487 Figure 13 g381948 Figure 10 Right angle Down Force • Use the angle levers to angle the plow blades. g373483 Figure 14 Left angle...
-
Page 8: Operation
Operation • When transporting the machine, do not block your vision with the plow. • Do not change the plow position while plowing. Mounting the Plow • Ensure that the kickstand is raised before plowing to prevent damage to the plow or machine. Refer to the Mounting the Plow (page 5) section... -
Page 9: Maintenance
Note: Replacement hardware is available through an deterioration. Make all necessary repairs before Authorized Boss Dealer or Boss Technical Service. operating. Remove and discard the 3 nuts and 3 washers • Check the hydraulic cylinders daily for leaks, rust, holding the cutting edge to the blade. -
Page 10: Storage
Storage Storing the Plow Drive the plow to your storage location and remove the plow; refer to your machine Operator’s Manual. Grease any exposed metal on the hydraulic cylinder rods. Lightly sand and use touch-up paint on painted areas that are scratched, chipped, or rusted. g373481 Figure 17 Removing the Plow from... -
Page 11: Troubleshooting
Troubleshooting Problem Possible Cause Corrective Action The plow wings retract while plowing. 1. A cylinder or hose is bad. 1. Check the cylinders, hoses, and all fittings for leaks. Tighten anyloose connections. Replace any damaged components. 2. The pressure relief valve is bad. 2.
