Instruction Manual
CANsmart™ Controller
DNL.WHS.21700
DENALIelectronics.com/KTM

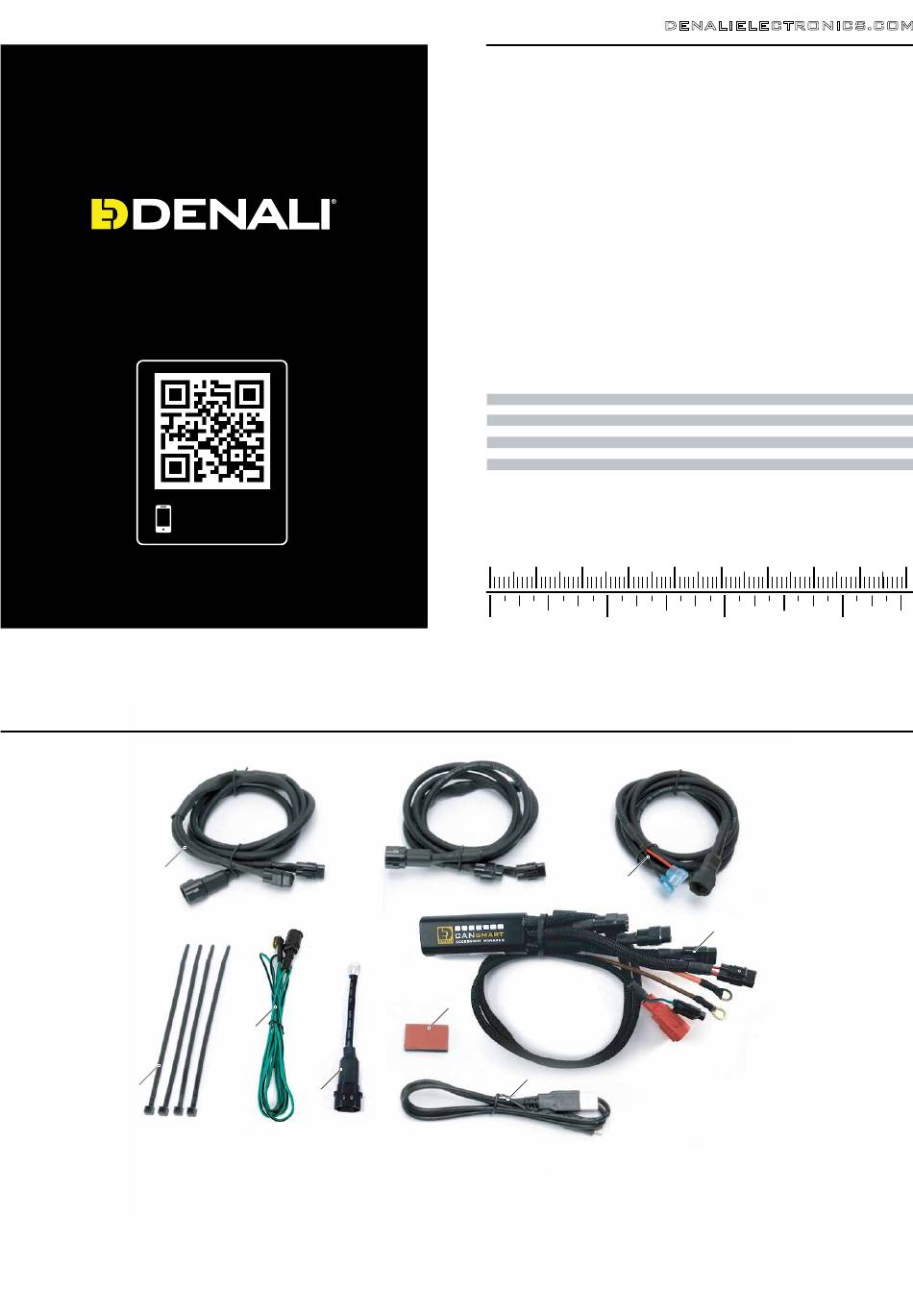

What's In The Box?
(c)
(f)
Kit Contents
(a) CANsmart™ Controller..........................................................Qty 1
(b) 5ft Horn Extension...............................................................Qty 1
(c) 5ft LED Light Extension.........................................................Qty 2
(d) Brake Light Pigtail................................................................Qty 1
(e) Horn Input Harness..............................................................Qty 2
(f) Zip Tie...............................................................................Qty 4
(g) Adhesive Dual Lock..............................................................Qty 1
(h) USB to Micro USB Programming Cable....................................Qty 1
KTM Series
ONLINE
USER GUIDE
(e)
(d)
Instruction Rev01
Thank you for choosing DENALI
We know you would rather be riding your bike than wrenching on it, so we go the extra
mile to make sure our instructions are clear and as easy to understand as possible. If
you have any questions, comments, or suggestions don't hesitate to give our experts
a call at 401.360.2550 or visit WWW.DENALIELECTRONICS.COM
Please Read Before Installing
DENALI products should always be installed by a qualified motorcycle technician. If
you are unsure of your ability to properly install a product, please have the product
installed by your local motorcycle dealer. DENALI takes no responsibility for damages
caused by improper installation. Caution: When installing electronics it is extremely
important to pay close attention to how wires are routed, especially when mounting
products to the front fender, front fork, or fairing of your motorcycle. Always be sure
to turn the handlebars fully left, fully right, and fully compress the suspension to
ensure the wires will not bind and have enough slack for your motorcycle to operate
properly.
Installation Tips
We strongly recommend using medium strength liquid thread locker on all screws and
bolts. It is also important to ensure that all hardware is tightened to the proper torque
specifications as listed in your owner's manual. For included accessory hardware
please refer to the default torque specifications provided below. Inspect all hardware
after the first 30 miles to ensure that proper torque specifications are maintained.
Bolt Size
M3
M4
M5
M6
M8
M10
M12
Hardware Sizing Guide
Not sure what size bolt you have? Use this ruler to measure screws, bolts, spacers, etc.
Remember, the length of a screw or bolt is measured from the start of the "mounting
surface" to the end of the screw, so only include the screw head when measuring
countersunk screws.
0
10
20
mm
0
1
in
(b)
(g)
(h)
DENALIELECTRONICS.COM
in-lbs
ft-lbs
10.0 in-lbs
-
23.0 in-lbs
-
44.5 in-lbs
3.5 ft-lbs
78.0 in-lbs
6.5 ft-lbs
-
13.5 ft-lbs
-
30.0 ft-lbs
-
52.0 ft-lbs
30
40
50
60
2
(a)
Nm
1.0 Nm
2.5 Nm
5.0 Nm
9.0 Nm
18.0 Nm
41.0 Nm
71.0 Nm
70
80
90
3

Advertisement

loading
Need help?

Need help?

Do you have a question about the CANsmart KTM Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Denali CANsmart KTM Series

  • Page 1 401.360.2550 or visit WWW.DENALIELECTRONICS.COM Please Read Before Installing DENALI products should always be installed by a qualified motorcycle technician. If you are unsure of your ability to properly install a product, please have the product installed by your local motorcycle dealer. DENALI takes no responsibility for damages caused by improper installation.
  • Page 2: Device Overview

    CANsmart™ Accessory Manager Software. The four circuits are pre-programmed to connect and independently control two sets of DENALI 2.0 lights, a SoundBomb horn, and our B6 auxiliary brake light. However, our Circuit Function Selector in the CANsmart software will let you run any accessory of your choice on any of the four circuits.
  • Page 3: Connecting Accessories

    In the default configuration, the circuit for Light Set One is the longest red Step Three: Plug the DENALI Light Pods into the female 3-pin connec- lead, the shortest white lead is for Light Set Two. Both circuits are designed tors of the Extension-Splitter.
  • Page 4 Brake Light Wiring Adapter 3.4 - Brake Light - (Yellow Circuit) Step One: Route the harness of the DENALI B6 Brake Light from the rear of your motorcycle toward the CANsmart™ Controller. Step Two: Plug the Brake Light Pigtail into the connector on the DENALI B6 Brake Light.
  • Page 5 Right Light 4.2 - Left/Right Split Lights Step Three: Plug the DENALI Light Pods from the right side of the Wiring your LED Lights split left/right enables the “Off When Turn Signal Active” feature to cancel only the LED lights on the corresponding side of motorcycle into the female 3-pin connectors of the Extension-Splitter.
  • Page 6: Software Overview

    5. Software Overview DENALIELECTRONICS.COM 5.1 - Circuit Function Selector The Circuit Function Selector in the CANsmart software will let you run any accessory of your choice on any of the four circuits. Click on a circuit icon to open the drop down menu and make your selection from the list of available circuit functions.
  • Page 7 5. Software Overview ( continued) DENALIELECTRONICS.COM 5.3 - Auxiliary Lights Two (Pair or Split) Available settings include “Off when turn signal active”, Flash when turn signal active”, “Strobe when horn active”, “Strobe on flash to pass”, “Inverse flashing when hazards active” as well as “Modulation”. “Three-Wire dimming mode” can be turned off to properly dim LED lights which do not have a dedicated 3rd dimming wire.
  • Page 8 5. Software Overview (continued) DENALIELECTRONICS.COM 5.7 - Turn Signals The turn signal circuit enables the addition of an auxiliary turn signals without having to tap into the bikes factory turn signal harness. 5.8 - Run/Brake/Turn The run/brake/turn signal circuit enables the addition of an auxiliary run brake turn signals complete with flash patterns, all without having to tap into the bikes factory turn signal or brake harness.
  • Page 9 5. Software Overview (continued) DENALIELECTRONICS.COM 5.11 - Where To Download The Software The CANsmart™ Accessory Manager Software is available for both Windows and Mac operating systems. To download your copy please visit WWW.DENALIELECTRONICS.COM/KTM CANsmart Programming Cable 5.12 - Connecting The Device To The Software Step One: Remove the protective cap from micro USB port on the end of the CANsmart™...
  • Page 10 7. Controlling Via The Motorcycle (KTM 890) 7.1 - KTM 890 CANsmart Operation Auxiliary Horn Sound Auxiliary Horn Press vehicle's original horn button Auxiliary Brake Light Activate Auxiliary Brake Light Apply vehicles front brakes (Can be set to flash upon deceleration) Heated Gear On/Off Activate vehicles original heated grips...
  • Page 11: Troubleshooting Guide

    Solid Red & Solid Green Device has been deactivated Return to DENALI for analysis. Please send log files info@DENALIelectronic.com for analysis by DENALI. Data/configuration fault. (missing CAN bus Check that the correct CAN bus connector was used. If the problem persists please send log files to Flashing Red &...
