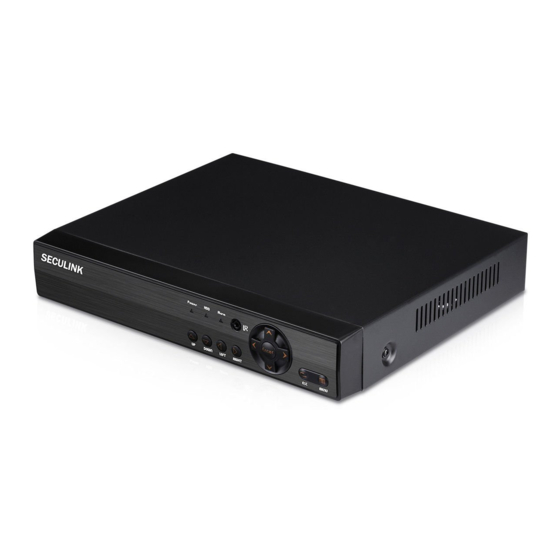

Seculink AVR7804LN Operation Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

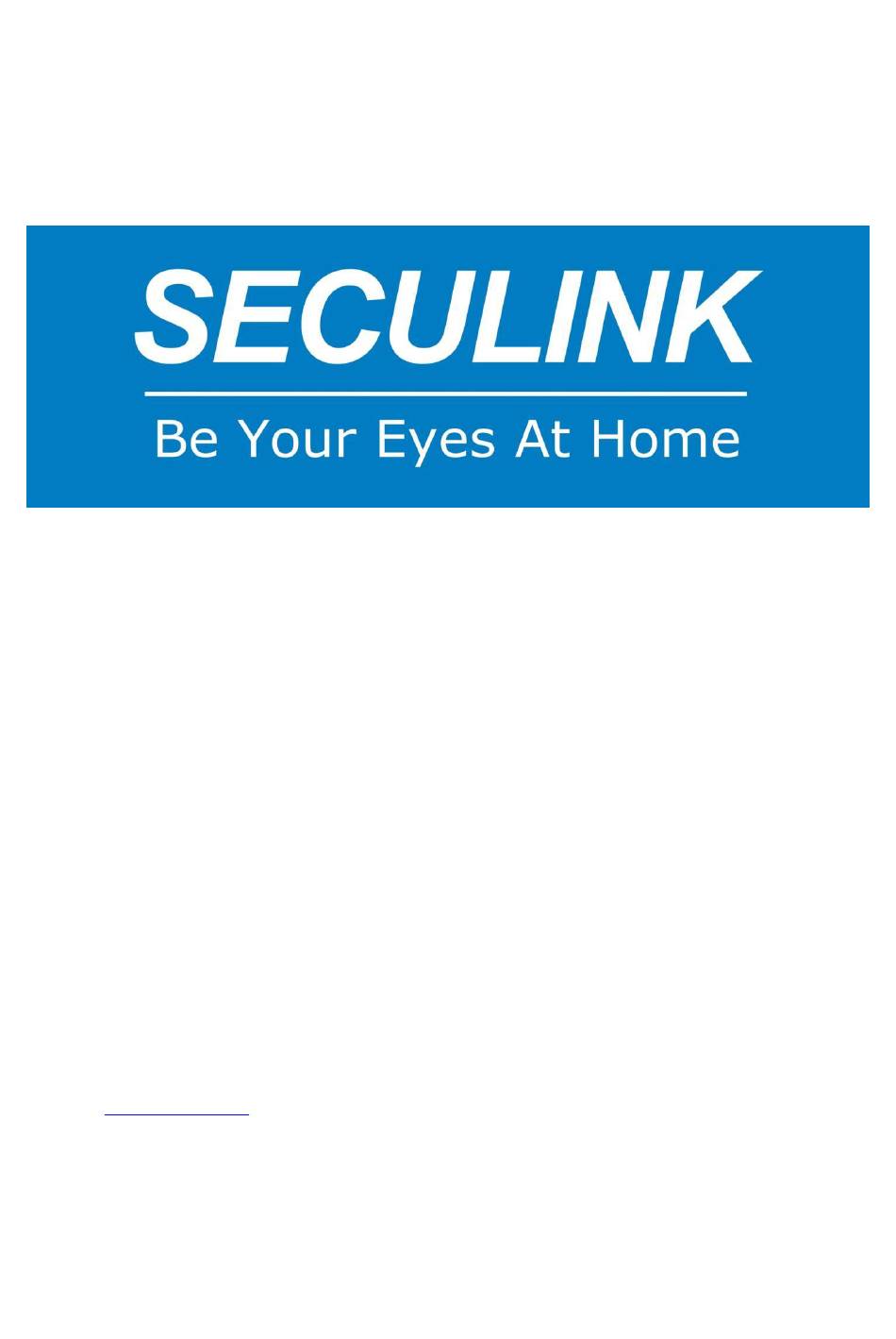

SECULINK DVR Operation Instruction
Please read the instruction carefully before using, and keep it properly
Fit Models:
AVR7804LN, AVR7808LN, AVR7816LN,
AVR7804L-M, AVR7808L-M, AVR7816L-M,
AVR7804L-ME, AVR7808L-ME, AVR7816L-ME,
AVR5308LN, AVR5316LN,
AVR5308L-M, AVR5316L-M.
AVR5308L-ME, AVR5316L-ME,
......
Need Help? Visit us online for up-to-date software and complete instruction manuals.
SECULINK TECHNOLOGY (HK) LIMITED
SHENZHEN SECULINK TECHNOLOGY CO., LTD
Website:
www.seculink.net
E-mail: info@seculink.net
Information in this document is subject to change without prior notice. As our products are subject to
continuous improvement, SECULINK and our subsidiaries reserve the right to modify product design
and specifications, without notice and without incurring any obligation

Advertisement

loading
Need help?

Need help?

Do you have a question about the AVR7804LN and is the answer not in the manual?

Questions and answers

Related Manuals for Seculink AVR7804LN

Summary of Contents for Seculink AVR7804LN

  • Page 1 E-mail: info@seculink.net Information in this document is subject to change without prior notice. As our products are subject to continuous improvement, SECULINK and our subsidiaries reserve the right to modify product design and specifications, without notice and without incurring any obligation...
  • Page 2 SECULINK AHD DVR Connection Diagram Camera (For reference only) Camera BNC Port BNC Port Router APP (XMeye)

  • Page 3: Connection And Setup

    CONNECTION AND SETUP Before the AHD DVR is powered on, make sure you have installed a hard disk and connected at least one security camera. For details, please refer to the following sections. The DVR is designed to automatically detect the video system of the connected cameras (NTSC or PAL). HDD Installation A SATA HDD is required before the DVR is powered on.

  • Page 4: Camera Connection

    Camera Connection The cameras must be connected and power-supplied before the DVR is powered on. Connect the camera with the indicated power supply. Then, connect the camera video output to the DVR video input port with a coaxial cable or RCA cable with BNC connectors.

  • Page 5: Interface Specification

    Interface Specification Symbol Specification DC 12V DC12V USB Port, for USB drive and mouse etc LAN Port HD-OUT HD-OUT Port VGA Port Video input port, enter the video signal source, such as DVR, digital TV video AV-OUT signal AUDIO IN Audio in, use RCA to connect audio input device, such as pick-up Audio output, use RCA to connect audio output device, such as active AUDIO OUT...
  • Page 6 Quick Menu...
  • Page 7 Specification for main menu Main interface content description Network Phone app, Network, Email, Net service Mode switch Digital, Network, Analog, Hybrid Info Version, Log, Hdd info Record Encode, Record, Play Back Alarm Motion Detect, Video Blind, Video Loss Alarm Input/Output etc System General, Display, Channel Title, Storage etc...
  • Page 8 Main Menu Sub Menu Functional Outline recording Set each channel recording configuration, recording type, setting recording time period, etc. recording Video query, video playback, video file save playback Recording picture Set each channel capture configuration, capture type, storage capture time period, etc. Recording Detect backup devices, format backup devices, back up backup...
  • Page 9 Set the main coding and combined coding parameters for each channel: coding mode, resolution, frame rate, code Code Setting stream control, picture quality type, code stream value, one frame interval parameter, video/audio enable Set basic network parameters, and set DHCP, DNS Network parameters, network...
  • Page 10 Export the log information or configuration of the device to an external device (such as a USB flash drive); import the Input/Output configuration of the external device (such as a USB flash drive) to the device. Storage Info Display hard disk capacity and recording time Stream Display stream information Statistics...
  • Page 11 1.System Login When you start the DVR, user name is “admin”, no password, and then click “OK”. As picture shows: User Name: “admin” No Password Click “OK” Password protection: If the password is continuous wrong three times, the alarm will start. If the password is continuous wrong five times, the account will be locked.
  • Page 12 6. Restore the default setting of the video recorder, and confirm that the firmware of the DVR recorder has been updated to the latest version. 7. After the above steps are confirmed, it is still not recognized, you can contact Seculink service team to process.
  • Page 13 3. Record Mode Choose “Record Mode” by right-click the mouse, the DVR records 24 hours by default. As picture shows: Motion Detect: Motion detects alarm video Schedule: Can regulate and control time period, distinguishes usual, alarm and detection video Manual: Not distinguish alarm video and Ordinary video Stop: Stop recording...
  • Page 14 4.Playback Right-Click mouse, choose the channel and date that you want to play. And Click the “Search”. As pictures show: FAQ: No image during playback 1. View the channel management-channel status, display the current resolution and the maximum resolution, the current resolution is the resolution of the camera, and the maximum resolution is the video recorder resolution;...
  • Page 15 5.Email Setup Right-Click mouse choose “Network settings →Email”, Click the “Enable”, choose “SMTP Sever”, input “user name, password, Receiver”. Then Click “ok”. As pictures show: Remark: After selected SMTP server, IT will automatically display the mailbox suffix Testing whether the Email settings successfully or not Click left button “OK”...
  • Page 16 6.2. Click “Phone app” and check “network status”, when is showing “connected”, dvr was successfully connected the network. As picture shows: IOS Mobile QR Code Device SN.NO Android Mobile QR Code...
  • Page 17 6.3. Open the smart phone, Scan the specified QR code, download and install APP. As picture shows : IOS APP (Iphone users recommend using the UC browser or Wechat) Android APP （Android user recommend using the UC browser, Don't use Wechat ）...
  • Page 18 6.4. Open the icon of “XMEye”, click “Local login”, no need to register. As picture shows: Click the “Local Login” 6.5. Click top right corner “+” to add device and input “Input name →Device ID →No password”. As picture shows: ①Click the top right corner “+”...
  • Page 19 6.6. Choose device list, open the added device. As picture shows: Click the device list →option added device...
  • Page 20 6.7. Open the channel to remote control. As picture shows: Click the added device, choose certain channel to view Click “start preview” 7.Remote of Computer 7.1. Search “www.cd-ipc.com/xmeye” in Browser, click “CMS” software, download the software and install it. As picture shows: input “www.cd-ipc.com/xmeye”...
  • Page 21 7.2. Open “CMS”, user name is “super”, No password. As picture shows: User name: “Super” Password: “Blank” Click “Login”...
  • Page 22 7.3. Click “System →Device Manager →Cloud →Add device ID, NO Password, Choose OK. As pictures shows: Input Device Name Click “OK” Tips: Search DVR ip address in local internet, then Add device 7.4. Click Certain device in top left corner, click the device just added, Double left Click mouse to view certain channel, then can monitor the DVR On Computer.
  • Page 24 8.Channel Management Set the channel mode of video recorder,and the channel mode has fully analog,hybrid and fully network mode. On the fully analog channel mode,there’s only channel type in channel management. But on hybrid or fully network channel mode, there are digital channel,channel status and channel mode. 8.1 Channel Type Channel type,displaying and setting channel mode supported by video recorder and displaying maximum playback channels of all channel modes at the meantime.
  • Page 25 camera. For example, the camera is 1080P while the channel mode of the video recorder is 960P, so there will be no image. 4. Generally speaking, the larger the bit rate is, the clearer video will become. But the bit rate configuration should combine well with the network bandwidth.
  • Page 26 7. Restore the default setting of the DVR, add the IP camera again, or you can try to add it manually. 8. I have tried the above problems and solutions, contact Seculink Technology. FAQ: Connect Hikvision or Dahua Camera Prompts wrong password when connecting Hikvision or Dahua camera 1.
  • Page 27 9. PTZ control PTZ control is a little different between hybrid mode & full digital mode: Digital channel – the digital channel need link PTZ, the remote device should connect with PTZ and with protocol correctly set also. Analog channel – Only when the device is connect with PTZ and configure protocol correctly is Please notice before using: ①...
  • Page 28 “Speed size”It is used to set the rotation range. The larger the number, the larger the amplitude. The setting range is 1 ~ 8 and the default is 5. “Preset point”:Add,delete and invoke preset points: Preset point adding: Fill in the preset point number in the preset point number box, rotate the pan/tilt to the orientation where you need to add the preset point through the pan/tilt direction control button, and then click the add preset point button to complete the preset.
  • Page 29 pattern track, zoom and other operations on the PTZ; “Page switch”: Enter different function control pages such as menus. “Cancel”: Exit the PTZ control function. 9.2 Page switch Click “Page Switch”to the auxiliary function page. On this page, you can set the direct auxiliary operation and auxiliary number operation functions.
  • Page 30 10. Alarm Setting 10.1 Motion detection By analyzing the video image, when the system detects that a mobile signal that reaches the preset sensitivity occurs, the motion detection alarm is activated, and the linkage function is activated. Motion detect function is different between Hybrid mode & Full digital mode: Digital channel: not only to enable motion detect function at local side, but also to enable the remote device that was connected.
  • Page 31 in the following figure. Hold down the left mouse button and draw the setting area (the default all areas are selected as the monitoring region). Note: Region settings are only available in the motion detection function of analog channel in hybrid mode / full analog mode.
  • Page 32 set in [Main Menu] > [System Settings] > [Tour Settings]; “PTZ Activation”: Set the recorder to call the preset point of the selected channel pan/tilt when the alarm occurs, and cruise or patrol between points; Note: In the analog channel mode and the analog channel in the hybrid channel mode, the PTZ linkage is the camera PTZ corresponding to the analog channel.
  • Page 33 10.2. Video Blind The video image transmitted by the front camera to the recorder is affected by the outside environment. When the light intensity reaches the set sensitivity parameter, the video blind alarm is triggered and the linkage function is activated. Note: Like motion detection, the analog channel of hybrid mode /full analog channel and network channel video blind functions are different.
  • Page 34 10.3. Video Loss When the recorder cannot obtain the video signal transmitted by the front camera, the video loss alarm is activated and the linkage function is activated. Like motion detection, the video loss function of the hybrid mode/full analog channel and the full digital channel is different: the digital channel video loss alarm function not only needs to be turned on at the local end, but also the corresponding remote device end connected to the channel.
  • Page 35 Frequently Asked Questions (FAQ) of Seculink Digital Video Recorder Q 1: The DVR can not be boot up normally A:1. Power supply not compatible 2. Power supply failure 3. Power adapter damage 4. Hard Disk damage or hard disk cable problem Q 2: Forget Password A: Contact supplier for new Password.
  • Page 36 Product warranty Dear Buyer, When require warranty service, please show the warranty card and the purchase invoice, and please fill in the relevant content in detail, the company will provide clients product warranty within One year from the date of purchase of the product. If has quality problems during the warranty period, we provide maintenance and replacement services free of charge, if it is man-made damage or beyond the warranty period, the company's maintenance and replacement service will be charged.
