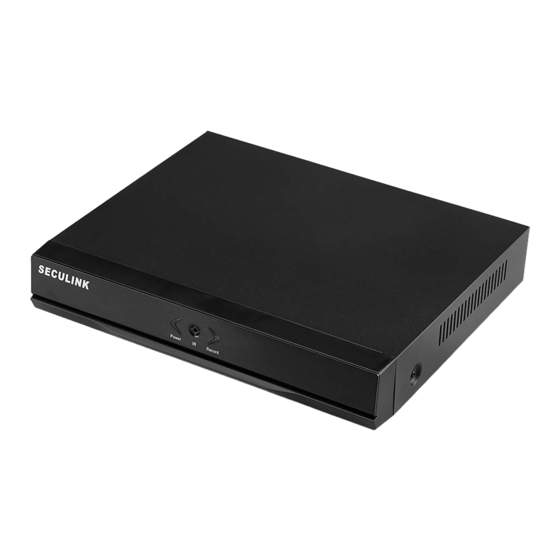

Seculink NVR1104PF Operation Instruction Manual
  1. Manuals
  2. Brands
  3. Seculink Manuals
  4. DVR
  5. NVR1104PF
  6. Operation instruction manual

Seculink NVR1104PF Operation Instruction Manual

Hd nvr
Hide thumbs

Advertisement

Quick Links

Download this manual

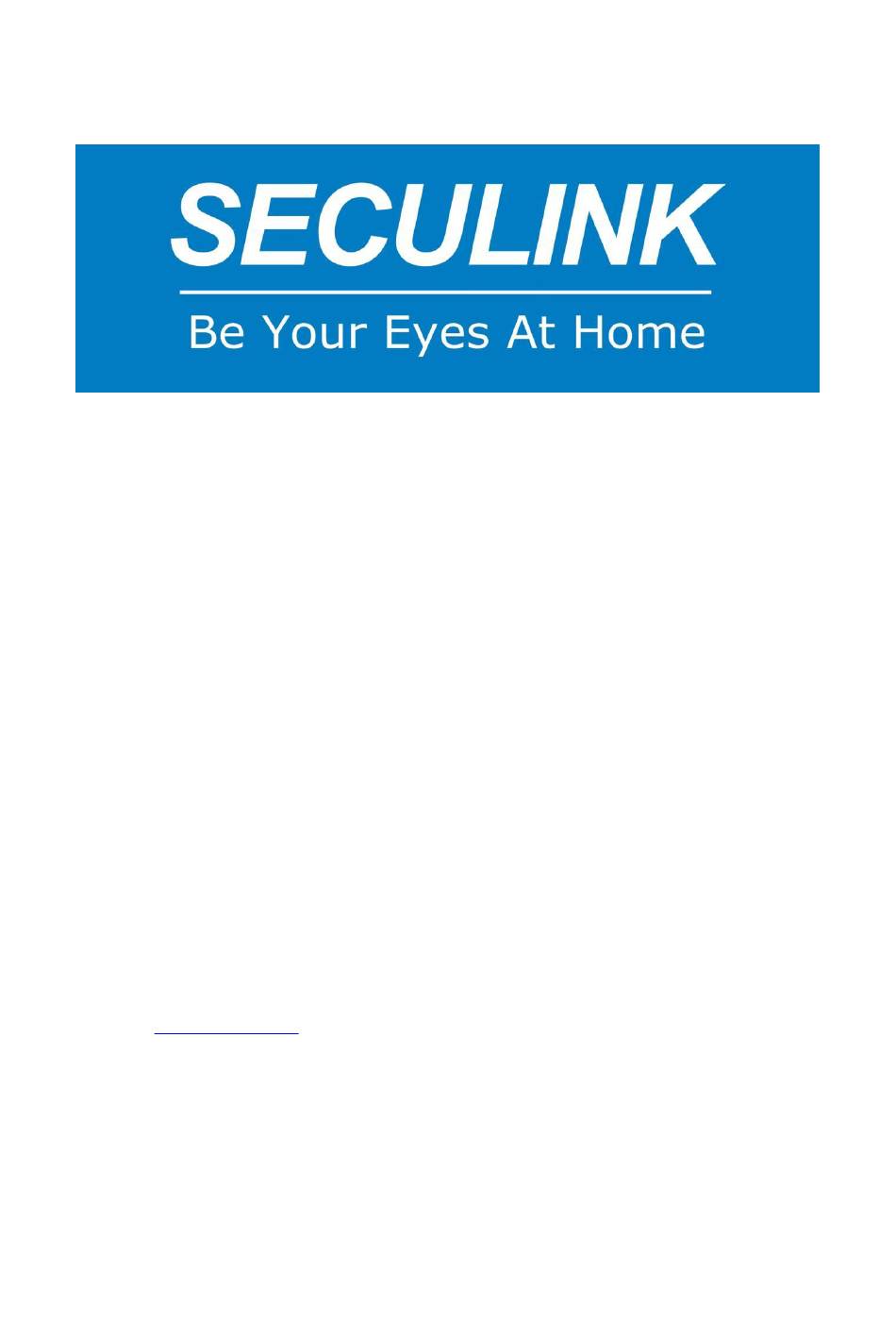

SECULINK HD NVR Operation Instruction
Please read the instruction carefully before using, and keep it properly
Fit Models:
NVR1104PF, NVR1108PF, NVR1116PF,
NVR1604PF, NVR1608PF, NVR1616PF,
NVR5116PF, NVR5132PF,
......
Need Help? Visit us online for up-to-date software and complete instruction manuals.
SECULINK TECHNOLOGY (HK) LIMITED
SHENZHEN SECULINK TECHNOLOGY CO., LTD
Website:
www.seculink.net
E-mail: info@seculink.net
Information in this document is subject to change without prior notice. As our products are
subject to continuous improvement, SECULINK and our subsidiaries reserve the right to
modify product design and specifications, without notice and without incurring any
obligation.

Advertisement

loading
Need help?

Need help?

Do you have a question about the NVR1104PF and is the answer not in the manual?

Questions and answers

Related Manuals for Seculink NVR1104PF

Summary of Contents for Seculink NVR1104PF

  • Page 1 E-mail: info@seculink.net Information in this document is subject to change without prior notice. As our products are subject to continuous improvement, SECULINK and our subsidiaries reserve the right to modify product design and specifications, without notice and without incurring any...
  • Page 2 SECULINK HD NVR Connection Diagram IP Camera (For reference only) Network Cable Router APP(XMeye)

  • Page 3: Connection And Setup

    CONNECTION AND SETUP Before the HD NVR is powered on, make sure you have installed a hard disk and connected at least one WiFi or wired ip camera. For details, please refer to the following sections. HDD Installation A SATA HDD is required before the HD NVR is powered on.

  • Page 4: Camera Connection

    Camera Connection The ip cameras must be connected and power-supplied before the NVR is powered on. Connect the camera with the indicated power supply. 1) For wired ip camera. Please connect a wired ip camera using an Ethernet cable to the router.
  • Page 5 2) For WiFi ip camera. Please configure the network for your wireless camera in advance, and make sure it is in the same LAN as your video recorder. Usually the wireless camera needs to be connected to the network through the mobile phone APP. If you do not know how to configure the network, please contact your seller.

  • Page 6: Audio Out

    Interface Specification Symbol Specification DC 12V DC12V Power Supply Input USB Port, for USB drive and mouse, etc LAN Port, connects router and switches,etc. HD-OUT HD-OUT Port, HD audio and video output, for HDMI monitor or projector VGA Port, for VGA monitor or projector AV-OUT AV video output,such as DVD/ digital TV video signal AUDIO OUT...
  • Page 7 Specification for main menu Main Menu Sub Menu Functional Outline recording Set each channel recording configuration, recording type, setting recording time period, etc. recording Video query, video playback, video file save playback Recording picture Set each channel capture configuration, capture type, storage capture time period, etc.
  • Page 8 Alarm Set alarm mode:configuration,manual,close Output PS:Some devices don’t support this function No hard disk, hard disk error, insufficient hard disk space, Exception network disconnection event, IP conflict time, set linkage handling parameters: screen prompt or buzzer Determine algorithm rules: perimeter alert, item care, video diagnosis.
  • Page 9 Storage Set the specified hard disk as read/write disk, set as Managemen read-only disk, set to redundant disk, clear data, restore data, etc. User Modify users, modify groups, change passwords, add users, Managemen add groups, delete users, delete groups The network user who has logged in can be forcibly Online Users disconnected.
  • Page 10 Non-English users, please select your language from the drop-down menu. Path: System - General - Language...
  • Page 11 1. System Login When you start the NVR, user name is “admin”, no password , and then click“OK”. As picture shows: User Name: “admin” No Password Click “OK” Shutdown/Reboot: Right click the mouse > enter [Main Menu] > [Close System] to select [Shutdown] or [Reboot]...
  • Page 12 6. Restore the default setting of the video recorder, and confirm that the firmware of the NVR recorder has been updated to the latest version. 7. After the above steps are confirmed, it is still not recognized, you can contact Seculink service team to process.
  • Page 13 3. Record Mode Choose “Record Mode” by right-click the mouse, the NVR records 24 hours by default. As picture shows: Motion Detect: Motion detects alarm video Schedule: Can regulate and control time period, distinguishes usual, alarm and detection video Manual: Not distinguish alarm video and Ordinary video Stop: Stop recording...
  • Page 14 4. Playback Right-Click and Click the “playback”,choose the channel and day that you want to play. And Click the “Search”, As the pictures show: FAQ: No image during playback 1. View the channel management-channel status, display the current resolution and the maximum resolution, the current resolution is the resolution of the camera, and the maximum resolution is the video recorder resolution;...
  • Page 15 5. Email Setup Right-Click and Click the “Network settings→Email”,Click the “Enable”, choose“SMTP Sever” that you need. “Type user name-password-Receiver”. Then Click“ok”, As the pictures show: Remark: After selected SMTP server, it will automatically display the mailbox suffix Testing whether the Email settings successfully or not Click left button “OK”...
  • Page 16 6.2. Click “Phone app” and check “network status”, when is showing “connected”, nvr was successfully connected the network. As picture shows: After Click Register,it will auto showing the device ID ISO APP QR code Android APP QR code...
  • Page 17 6.3. Open the smart phone, Scan the specified QR code,download and install APP. As picture shows :...
  • Page 18 6.4. Open “XMeye” app on the phone's desktop, click “Local login”, no need to register. As picture shows: 6.5. Click top right corner “+” to add device and input “Input name→Device ID→No password ”. As picture shows:...
  • Page 19 6.6 Choose device list, open the added device. As picture shows: 6.7 Open the channel to remote control. As picture shows: 7. Remote of Computer 7.1 Search “www.cd-ipc.com/xmeye” in Browser,click “CMS” software, download the software and install it. As picture shows: input “www.cd-ipc.com/xmeye”...
  • Page 20 7.2 Open “CMS” , user name is “super”, No password. As picture shows:...
  • Page 21 7.3 Click “System→Device Manager→Cloud→Add device ID, NO Password, Choose OK. As pictures shows: 7.4 Click Certain device in top left corner, click the device just added, Double left Click mouse to view certain channel, then can monitor the NVR On Computer. As pictures shows:...

  • Page 22: Channel Management

    8. Channel Management The HD NVR will automatically add IPC to NVR by default. If you need to manually add device, please operate as the following: 8.1 Channel Type Channel type,displaying and setting channel mode supported by video recorder and displaying maximum playback channels of all channel modes at the meantime.
  • Page 23 separately to check whether the camera is normal. 3) Check if the resolution of the channel mode on the video recorder is smaller than that of the camera. For example, the camera is 1920P while the channel mode of the video recorder is 1080P, so there will be no image.
  • Page 24 7. Restore the default setting of the NVR, add the IP camera again, or you can try to add it manually. 8. I have tried the above problems and solutions, contact Seculink Technology. FAQ: Connect Hikvision or Dahua Camera Prompts wrong password when connecting Hikvision or Dahua camera 1.
  • Page 25 2015. Some old versions do not support the linkage setting of the IPC area. 2. At present, motion detection only supports the setting of devices connected by private protocol, check whether the camera is made by Seculink. “Channel”Click the drop-down menu to select the channel number to set the motion...
  • Page 26 detection; “Enable” Reverse display ■ indicates that the motion detection function is enabled, and the corresponding settings can be made after being enabled; “Sensitivity”The alarm sensitivity has the lowest, low, medium, high, higher, and the highest six files are available. The higher the sensitivity, the easier it is to trigger the alarm, and the false alarm rate will also increase;...
  • Page 27 Note: To use this function, you need to change the recording mode to configuration and set the effective time period and start the detection recording in [Main Menu] > [Recording Function] > [Recording Settings]. “Tour”: Set the channel number of the full-screen display when the motion detection alarm is triggered (can be checked);...
  • Page 28 9.2. Video Blind The video image transmitted by the front camera to the recorder is affected by the outside environment. When the light intensity reaches the set sensitivity parameter, the video blind alarm is triggered and the linkage function is activated. Note: Like motion detection, the analog channel of hybrid mode /full analog channel and network channel video blind functions are different.
  • Page 29 Otherwise, the video loss alarm function cannot be realized, and the analog channel only needs to turn on the video loss of the recorder. Frequently Asked Questions (FAQ) of Seculink Network Video Recorder...
  • Page 30 Q 1:The NVR can not be boot up normally A:1. Power supply not compatible 2. Power supply failure 3. Power adapter damage 4. Hard Disk damage or hard disk cable problem Q 2:Forget Password A:Contact supplier for new Password. If there is a wrong password, then there is a question mark on the login interface, there is a KEY below the answer, send this KEY to customer service.
  • Page 31 Q10:Network connection is unstable A: 1.Unstable network 2.Conflict IP address Q11:Wrong burning/USB backup A: 1. Too much data. The CPU occupies too much resources. Please stop recording and then back up. 2. The amount of data exceeds the capacity of the backup device, which will result in burning errors.
  • Page 32 And the damage for the irresistible reason: such as earthquake, flood, typhoon or war, purchase invoices of product doesn’t match Model encoding or beyond the warranty period. Website: www.seculink.com.cn www.seculink.net E-mail : info@seculink.net...
