Summary of Contents for IRIS IP-400

  • Page 2: Table Of Contents

    - INDEX - 1. Introduction ..................... 1 2. Technical data ....................2 3. Parts ........................3 4. How to Operate ....................4-6 5. Important safety information ..............7 6. Checkup ......................... 8 7. Storage ........................8 8. Spreading chart ..................9-10 9.

  • Page 3: Introduction

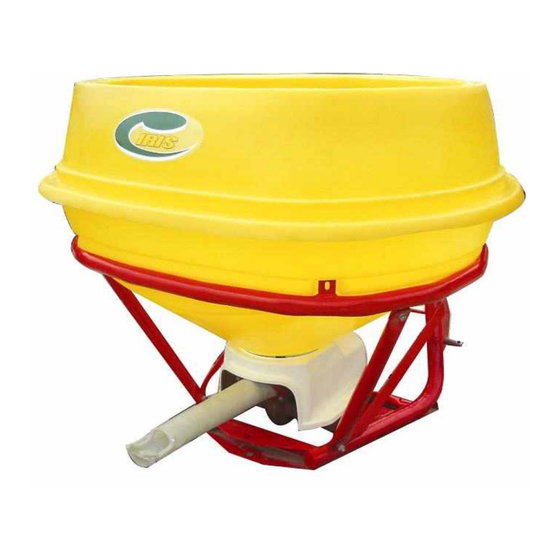

    1. Introduction 1) Yellow poly hopper makes rust free and visible inside. 2) Three point linkage type, easily attached to tractor. 3) Spreaders fertilizer, lime, seeds and etc. 4) Capacity : 400ℓ, 700ℓ, 900ℓ Even Spreading Spotted Spreading - 1 -...

  • Page 4: Technical Data

    2. Technical data Model IP-400 IP-700 IP-900 HOPPER CAPACITY(ℓ) WEIGHT OF THE MACHINE (㎏) 1430 1430 1430 WIDTH(outside side)(㎜) 1180 1350 LOADING HEIGHT(㎜) 1380 1380 1380 LENGTH(㎜) 1430 1430 1430 HOPPER WIDTH(㎜) 6~24 6~24 6~24 SPREADING WIDTH(m) P.T.O P.T.O P.T.O...

  • Page 5: Parts

    3. Parts Fertilizer Pendular Spreader(IP-400,700,900) ➀ ➁ ➂ ➃ ➄ ➅ ➆ ➇ ⑨ ➀ Extension Hopper ➁ Hopper ➂ Hopper Ring ➃ Hopper Brace ➄ Frame Tie Rod ➅ Gearbox Guard ➆ Low link Pin ➇ Frame ⑨ Spout...

  • Page 6: How To Operate

    4. How to Operate 1) Insert fertilizer spreader’s link to the tractor’s low links (both left and right) and fasten with the pins. 2) Connect and fasten the fertilizer spreader’s upper link to the tractor’s top link. 3) Close the outlet and pour fertilizer or seed into the hopper. 4) Adjust spread rate by using adjustment lever.
  • Page 7 7) Spreading width adjusting : One is pin wrench and other is 17mm socket. ADJUSTMENT WRENCH You can see the stroke adjuster back of gearbox. STROKE ADJUSTER In order to move stroke adjuster, Please loosen the 2 bolts with adjustment wrench - 5 -...
  • Page 8 Please turn the stroke adjuster with the adjustment wrench No. 1 to No. 5 No. 1 : Narrow spreading No. 5 : Wide spreading Tighten the 2 bolts with adjustment wrench - 6 -...

  • Page 9: Important Safety Information

    5. Important safety information 1) Safety gear must be worn while operating the machine. 2) If more than two people are operating the machine, observe the others’ movement carefully. 3) Make sure there is NO on or no obstacle within the operating area and its range.

  • Page 10: Checkup

    6. Checkup 1) Make sure to apply Lubricant where needed and check for loosen nuts and bolts before operating. 2) Check for air pressure on the tires. 3) Test drive the equipment before actual use. 7. Storage 1) When the equipment is to be stored for a long time, apply lubricants to the area where it is likely to have corrosion.
  • Page 11 8. SPREADING CHART FOR FERTILIZER – METERS QUANTITY TO BE SPREAD, IN KGS PER HECTARE AT CONTROL LEVER P.T.O SPREAD TRACTOR SETTING INDICATED FERTILIZER TYPE SPEED WIDTH SPEED (RPM) (METERS) (km/h) Coarse Grain Fertilizers (Approx 750kg/㎥) 12.0 Medium Grain Fertilizers (Approx 1,100kg/㎥) 12.0 Fine Grain Fertilizers...

  • Page 12: Spreading Chart

    SPREADING CHART FOR FERTILIZER – FT QUANTITY TO BE SPREAD, IN LBS PER HECTARE AT CONTROL LEVER P.T.O SPREAD TRACTOR SETTING INDICATED FERTILIZER TYPE SPEED WIDTH SPEED (RPM) (FT) (mile/h) 1076 1208 1300 Coarse Grain Fertilizers 65.5 (Approx 6.26lbs/gallon) 1071 1287 1456 1599...

  • Page 13: Parts Sales & Trouble Shooting

    Parts sales 1) The parts list provided is in compliance with IP-400,700,900 standards. Refer to this list when order any parts. 2) Follow next steps as below when order parts: ex) We would like to order 1 unit of hopper...

  • Page 14: Part List

    11. Part list - 12 -...
  • Page 15 PART NO. DESCRIPTION FRAME Nut, Hex M10 Spring Lock Washer, M10 Washer, M10 Screws, Hex Head M10X35 HOPPER RING Nut, Hex M12 Washer, M12 HOPPER BRACE Screws, Hex Head M12X35 Screws, Hex Head M12X40 FRAME TIE ROD(RIGHT) Screws, Hex Head M12X65 BAKELITE DISC LEVER RUBBER HANDLE...
  • Page 16 PART NO. DESCRIPTION HOPPER PLATE ADJUSTING BAR Washer, M12 DOSING DISC WASHER Nut, Hex M40 GUARD Screws, Hex Head M10X25 Washer, M10 PENDULUM SPOUT COUPLING FLANGE FRONT SPOUT(EVEN SPREADING) Screws, Hex Head M10X50 FRONT SPOUT(SPOTTED SPREADING) SPOUT MOUNTING BEARING 6206 1RS WASHER Screws, Hex Head M12X80 FORK PROTECTION COVER...
  • Page 17 PART NO. DESCRIPTION BEARING 6011 1RS LOCKING RING R55 FRONT COVER WASHER LOCKING RING R90 Screws, Hex Head M10X50 P.T.O SHAFT ADJUSTMENT WRENCH EXTENSION(500ℓ) EXTENSION(700ℓ) EXTENSION(900ℓ) Screws, Hex Head M8X30 Nut, Self-locking, M8 Washer, M8 - 15 -...

  • Page 18: Certificate Of Quality Assurance

    CERTIFICATE OF QUALITY ASSURANCE All products manufactured and sold by IRIS SPREADERS, Co. are designed and assembled in accordance with regulations on farm machinery under very strict quality management. If the product is managed and used in accordance with instructions on regular check-ups and maintenance schedule provided in the owner’s operation...
  • Page 19 ▶ On delivery the customer should check the censure that the machine has not been damaged in transit, and that it complies with that ordered as that it is complete with all the accessories as specified in the purchase contract. If it is found defective, a written complaint should be sent within 8 days of receipt of the same.
  • Page 20 3) Any malfunction or defect caused by using unspecified fuel (low quality fuel or contaminated fuel) 4) Any malfunction caused by not complying with instructions prescribed in Owner’s Operation Manual or Warning Signs 5) Any defect caused by unauthorized modification of the product or use of non-genuine parts.
  • Page 21 6. In case we upgrade the specifications of certain model, we do not have any responsibility to upgrade the already-sold-equipments. 7. TRANSFER OF WARRANTY Since we honor the remaining warranty time even after the transfer of ownership through sale or donation, it is very important to acquire the Certificate of warranty when transfer of the product takes place.
  • Page 22 WARRANTY INFORMATION ○ In order for us to guarantee our highest quality on our products, we offer complimentary inspections designated agencies. malfunction occurs caused by manufacturing defect during warranty period, we will repair or replace the parts at free of charge. ○...
  • Page 23 Warranty Execution Report DATE PERFORMED TECHNICIAN CONFIRMED...
