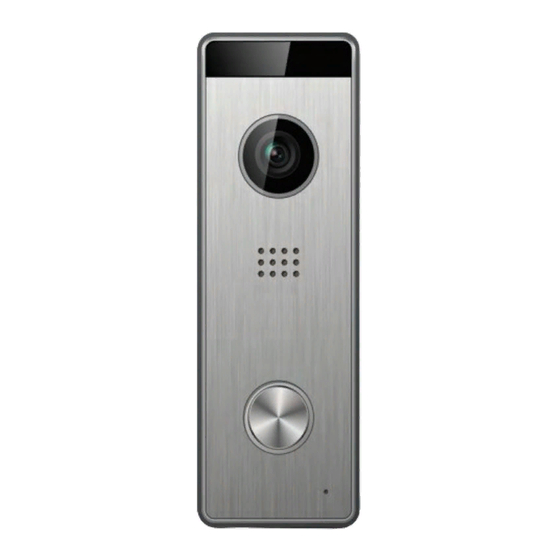

- Page 1 MICRON HOME INTERCOM SYSTEMS Intercom Door Station IM4D USER MANUAL...
- Page 2 USER MANUAL Micron AHD Door Station IM4D Information & specifications contained in this manual maybe changed for the benefit of product development and improvements. W20211130...
- Page 3 1. Name and Functions of Each Part Part Name Part Name LED for night vision Microphone Camera AHD/CVBS switch Speaker Speaker volume adjust Call button Wires for monitor/electronic lock Metal bracket for wall corner mounted 2. Features • Aluminum housing •...
- Page 4 3. Packing Contents 4. Connection Diagram 4.1 Wiring Diagram Please be careful to wiring on polarity.
- Page 5 4.2 Electric Lock Connection Note: 1. The external power supply must be used according to the lock. 2. The inside relay contact is restricted to DC 3A/30V. 3. There are two unlock types as the follows: Type 1: Power-on-to-unlock Type 2: Power-off-to-unlock 5.
